Feature

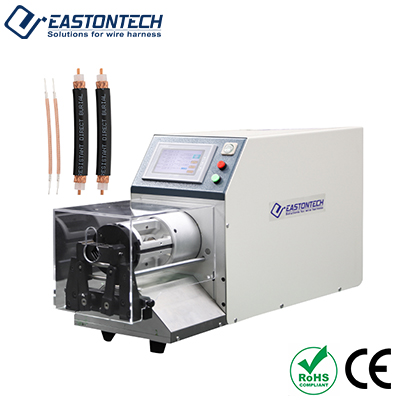

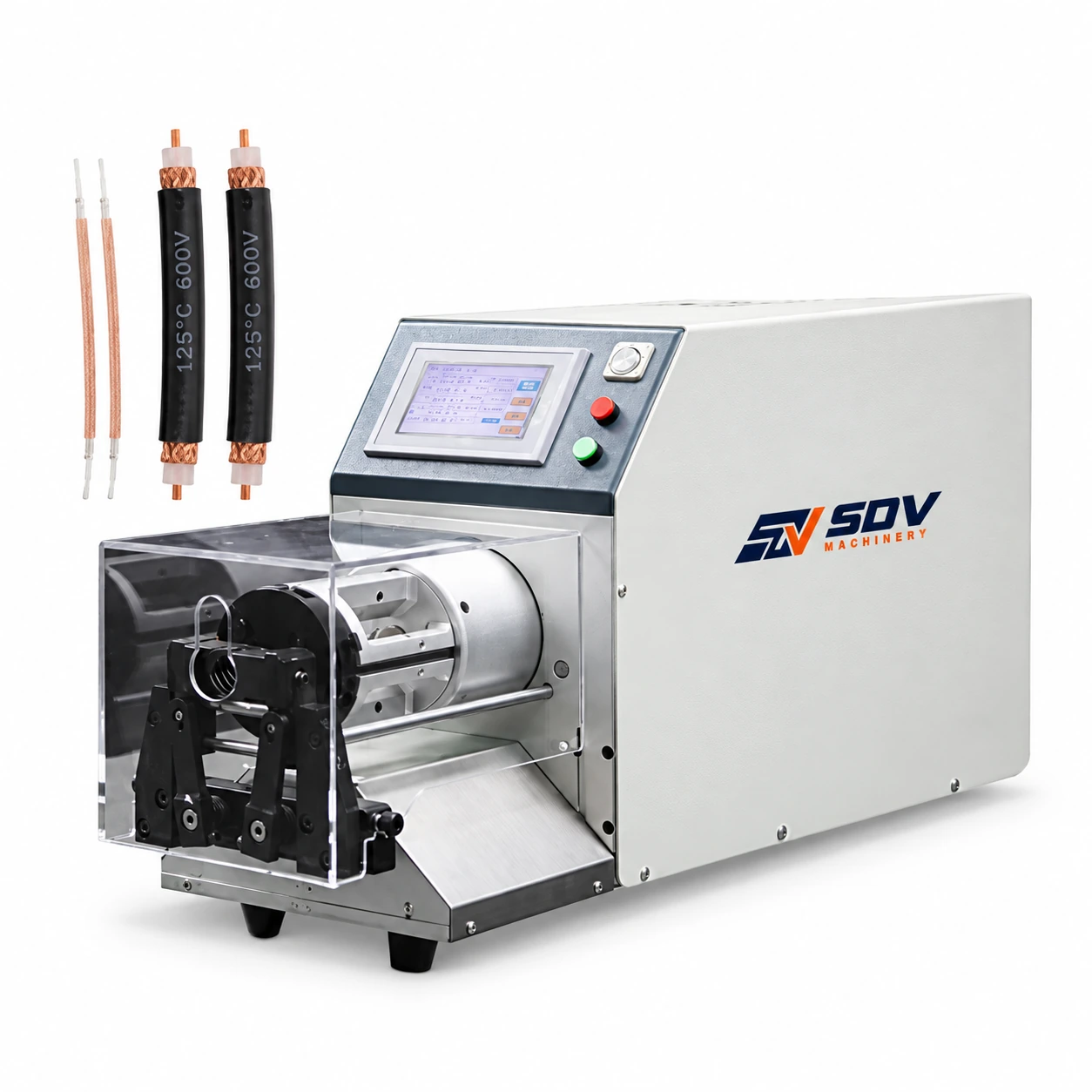

Multi-layer coaxial cable stripping up to 9 layers — no cutter change required The EW-0640 strips up to 9 layers on coaxial and multi-layer communication cables from OD 2–23mm using a single rotary cutter setup — no tooling changeover between different cable types or layer counts. This eliminates the setup time and operator error risk associated with manual cutter swaps on conventional multi-blade stripping machines.
Rotary circular-cutting head — clean ring cuts with zero conductor damage The EW-0640's rotary cutter frame orbits concentrically around the cable axis, scoring each insulation, shield, and dielectric layer in a precise ring cut without lateral blade contact with the underlying layer. This mechanism prevents the conductor nicking and dielectric compression caused by fixed-blade guillotine strippers, making the EW-0640 the correct choice for precision RF and coaxial cable preparation.
0.01mm diameter increments — precision-grade stripping for RF connector assembly Diameter setting increments of 0.01mm and length accuracy of ±(0.002×L)mm enable consistent, repeatable dielectric exposure lengths across all coaxial cable types. For a 50mm strip, that is ±0.1mm tolerance — meeting the dimensional requirements of SMA, N-type, BNC, and TNC RF connector termination standards without post-strip measurement adjustment.
Touch screen digital control — all parameters programmable, job recall ready Strip depth, strip length, rotation speed, and feed speed are all configured via the digital touch screen interface with 0.01mm resolution. Program files save all job parameters for instant recall on repeat cable specifications, reducing changeover time to seconds and eliminating manual dial re-adjustment between production batches.
Automatic self-centring cable clamp — motor-driven, program-controlled clamping force The EW-0640's cable clamp automatically centres on the cable OD and applies motor-driven clamping force under program control, accommodating the full 2–23mm OD range without manual jaw adjustment. This automatic centralising ensures consistent coaxiality between the cable axis and the rotary cutter path — a critical requirement for achieving uniform strip depth around the cable circumference on all 9 layers.
Application Range
RF connector assembly (SMA, N-type, BNC, TNC)
The EW-0640 is used in RF connector manufacturing and cable assembly operations to prepare coaxial cable ends to the precise dielectric exposure and shield fold-back lengths required by RF connector termination datasheets, where ±0.1mm length tolerance and zero conductor damage are mandatory for maintaining impedance continuity at the connector interface.
Broadcast & professional video cable preparation
The machine is used in broadcast infrastructure and ENG camera cable assembly to strip HD-SDI, HDTV, and triax broadcast cables (typically RG-11 to 23mm OD), where the rotary strip process preserves the precision dielectric geometry required for lossless signal transmission at 3G-SDI and 12G-SDI frequencies.
Telecommunications base station & trunk cable
It is used in telecom equipment manufacturing and installation to prepare feeder cables, CATV trunk cables, and base station jumper leads for connector termination, with the 9-layer no-change capability handling the range of cable types (RG-6 to LMR-400 equivalents) encountered in mixed telecom cable preparation operations.
Aerospace & defence coaxial harness
The EW-0640 is used in aerospace wiring harness assembly to strip MIL-SPEC coaxial and semi-rigid cables, where the precision rotary strip process meets the conductor damage and dimensional requirements of MIL-C-17 and MIL-DTL-17 cable preparation standards for flight-critical RF assemblies.
