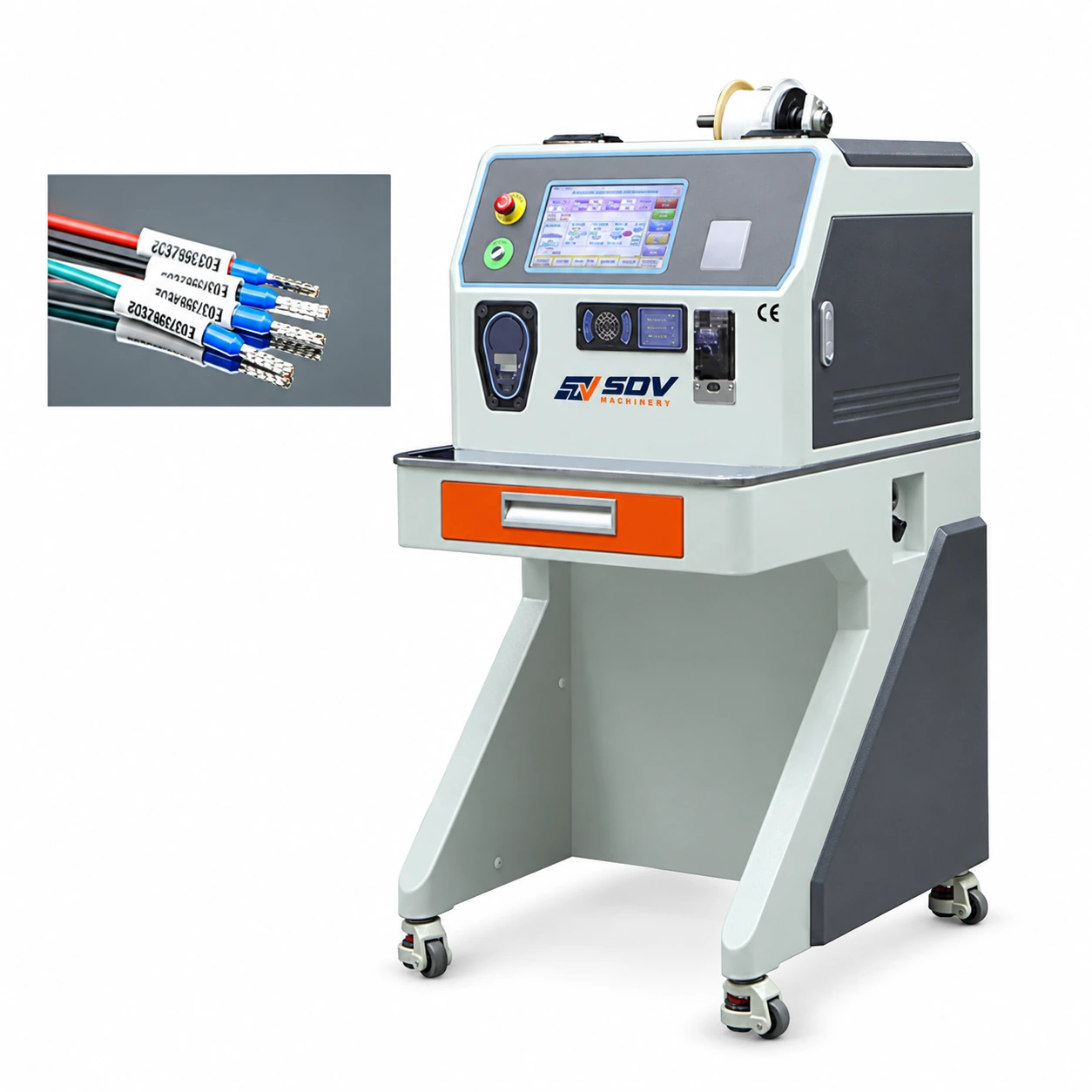

Servo Crimping Machine for Tube Type Terminals with Number Tubes EW-9825

Specifications

Model

EW-9825

Control method

10-inch human-machine interface, electrical integrated control

Operation Mode

Pay-off induction automatic triggering and manual operation triggering

Pedal

Can be installed

Wire size specifications

Most wires, such as RV cords, have specifications of 0.3 to 6 mm² (material fixtures are currently required for wires less than 0.5 square meters).

Number tube specifications

0.5 to 6 square PVC sleeves, printable tube lengths from 10 to 40 mm

Number tube printing

The ribbon is thermal transfer and can be loaded with 50m and 100m loose rolls of ribbon.

Print content

On-screen input and USB download, Chinese and English character printing, content can be printed on both sides.

Terminal specifications

0.3 (customized) 0.5 to 6 square; terminal insulator length within 11mm, conductor length within 20mm.

Wire stripping and number tube insertion

The stripping length is 6-30mm, and the insertion position can be controlled by motor adjustment, freeing the manual mechanical limit adjustment.

Peeling method

Rotary stripping, parallel stripping, rotary twisting, the direction can be forward and reverse.

Terminal supply

Vibrating plate feeding, one plate for universal use, only simple adjustment is required.

Crimp shape

Orthogonal quadrilateral crimping, servo motor crimping, crimping height can be adjusted at will; crimping shape can be customized with special crimping die.

Replacement product

Manually replace number tubes and terminals with different specifications, adjust the vibration plate, select the original parameters, and control the memory parameter call.

Production capacity

About 3.2s/single product, the specific time may vary depending on the wire material.

Automatic detection

Various operational tests include checking whether there is a color ribbon, whether there is a number tube, removing the wires, checking whether there are terminals, etc.

Power

1500W

Gas source

0.5-0.6Mpa (Please use a stable, clean and dry air source).

Working temperature and humidity

0～35℃ (ambient temperature of the machine), 30～80%HR (no condensation).

Machine Dimension

W600mm (front width) × L650mm (front and rear depth) × H1200mm (height) (excluding protrusions)

Machine Weight

140KG
