Wire Processing and Electrical Installation Equipment

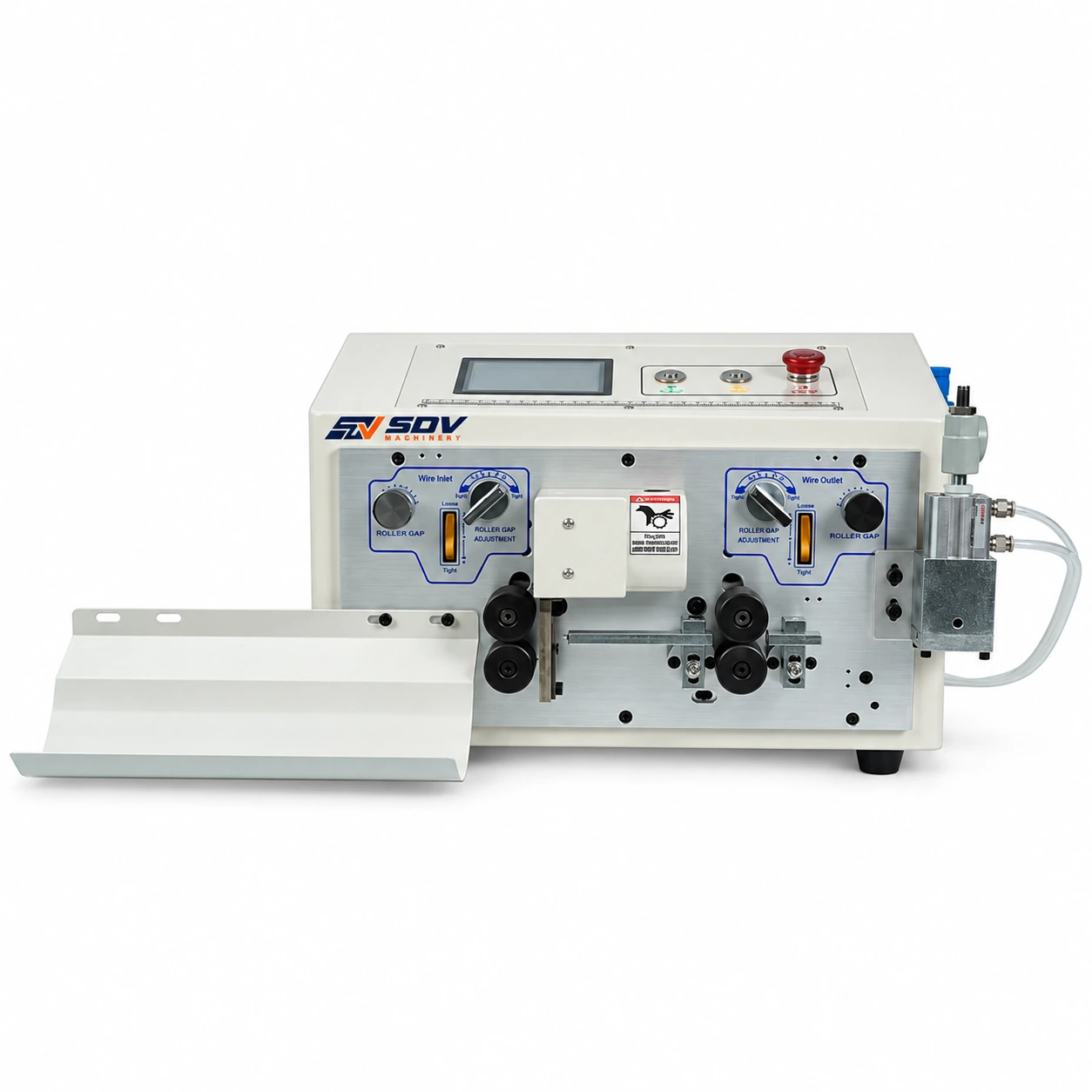

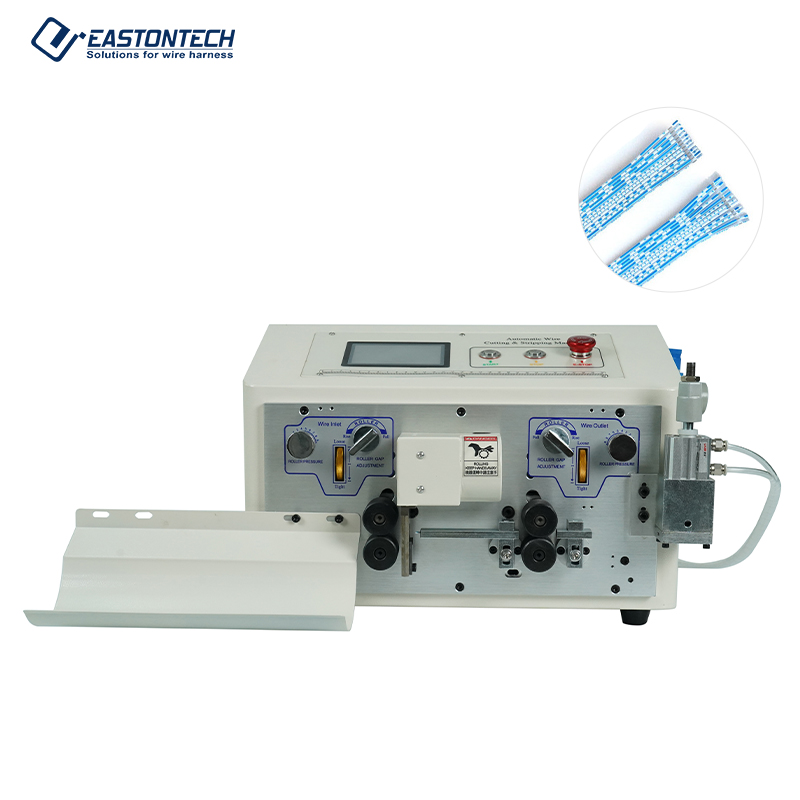

Flexible Flat Cable Cutting & Stripping Machine (2 - 12 P) EW-07C

Price of the selected optionon request
Delivery options

Description

Feature

● High precision and productivity solutions for wire cable cutting and stripping.

● Easy to operate program and low maintenance.

● Safety protection.

● Optional external device connection possibility: Wire feeding machine, and wire take-out device...

Specifications

Model
EW-07C
Pin number
2 - 12 Pin
Cutting length
1 - 100,000 mm
Cutting length tolerance
± 0.0001 * L
Stripping length (side I)
0 - 15 mm
Stripping length (side II)
0 - 15 mm
Maximum guide tube size
100 * 22 * 2.8 mm
Blade material
Hard tungsten steel
Display mode
LCD
Productivity
3000 - 5000 pcs./h (L = 100 mm)
Power supply
110, 220 V (50 - 60 Hz)
Power
450 W
Application for Flexible Flat Cable Cutting & Stripping Machine (2 - 12 P) EW-07C
