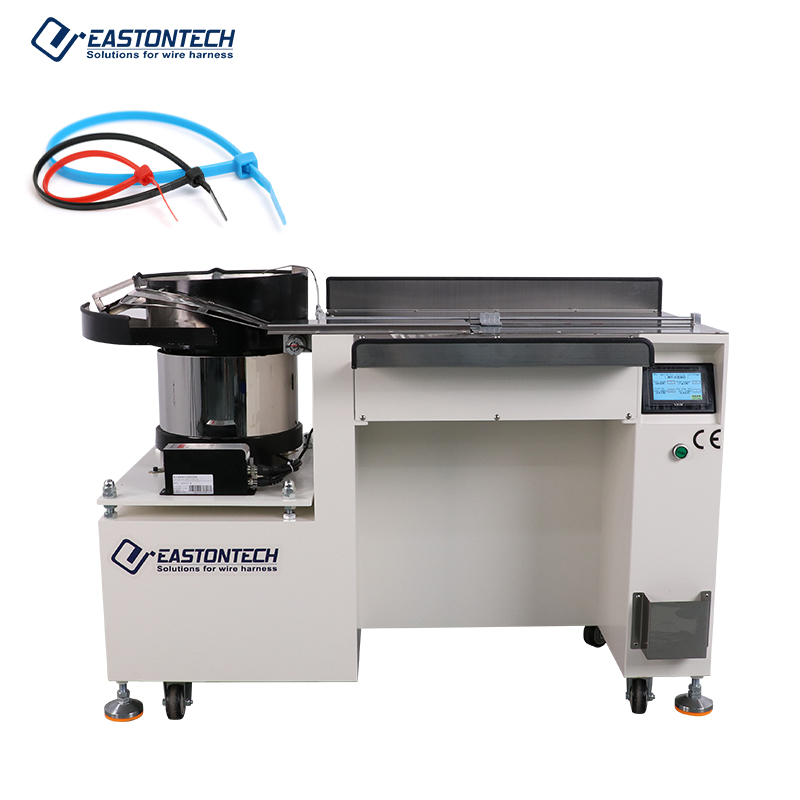

Nylon Cable Tie Tying Machine EW-23A

Price of the selected optionon request
Delivery options

Description

Feature

● The machine is designed for various industrial tying applications.

● The nylon cable tie will be transported by the customized vibrating feeder to the tying part.

● Activated by foot pedal, the fixed stable tying part allows operator to hold the product by two hands for steady operation.

● PLC screen display and fast production set up.

● Special applications can be customized by sending samples.

Specifications

Model
EW-23A
Cable tie width
3 - 5 mm
Tying Diameter
2 - 30 mm
Tail length
0 - 3 mm
Maximum tension force
15 N
Activation
By foot pedal
Productivity
1200 - 1500 pcs./h
Compressed air connection
0.6 MPa
Power supply
110, 220 V (50 - 60 Hz)
Power
750 W
Dimension
1200 * 550 * 780 mm
Weight
125 kg
Application for Nylon Cable Tie Tying Machine EW-23A
