Feature

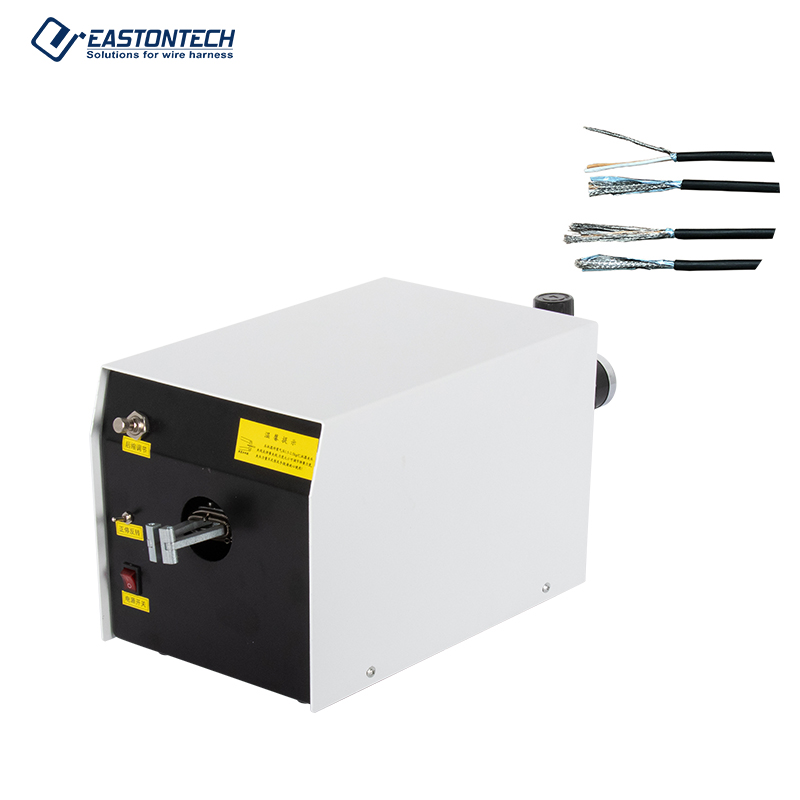

● Precision Braid Twisting (0.2-2 mm²): Consolidates outer copper shielding mesh and multi-strand ground wires from 0.2 to 2 mm² into tight, uniform twists. The standard twisting length spans 5 to 80 mm, with custom factory modifications available up to 150 mm.
● High-Speed Controlled Drive: Powered by a 1400 RPM motor paired with adjustable speed control to match different wire flexibility levels. This controlled rotation prevents fine copper strands from tearing or stretching during high-volume processing.
● Ultra-Compact Desktop Profile: Engineered with a space-saving chassis measuring 340 x 190 x 170 mm and weighing only 12 kg. Its lightweight structure allows production managers to easily integrate or relocate the unit on busy assembly workbenches.
● Low Air Pressure Requirement: Operates on minimal pneumatic air pressure between 1.5 and 2.5 kg/cm². This low-pressure design ensures smooth pneumatic clamping without excessive energy consumption or mechanical wear.
● Universal Plug Compatibility: Features an energy-efficient 10W motor drive available with European, USA, or Chinese standard plug configurations for immediate plug-and-play installation worldwide.
Application Range
● Automotive Sensor & CAN Bus Lines: Consolidating twisted copper shielding layers on automotive communication lines and sensor harnesses.
● Industrial Automation Cabling: Quick twisting of ground wire braids and shielded multi-core control cables inside electrical cabinets.
● Audio, Video & RF Harnesses: Processing delicate braided copper sleeves for shielded audio cables and high-frequency signal lines.
● General Wire Harness Assembly: Eliminating manual twisting steps for contract electronics manufacturers (EMS) processing high-mix cable batches.
