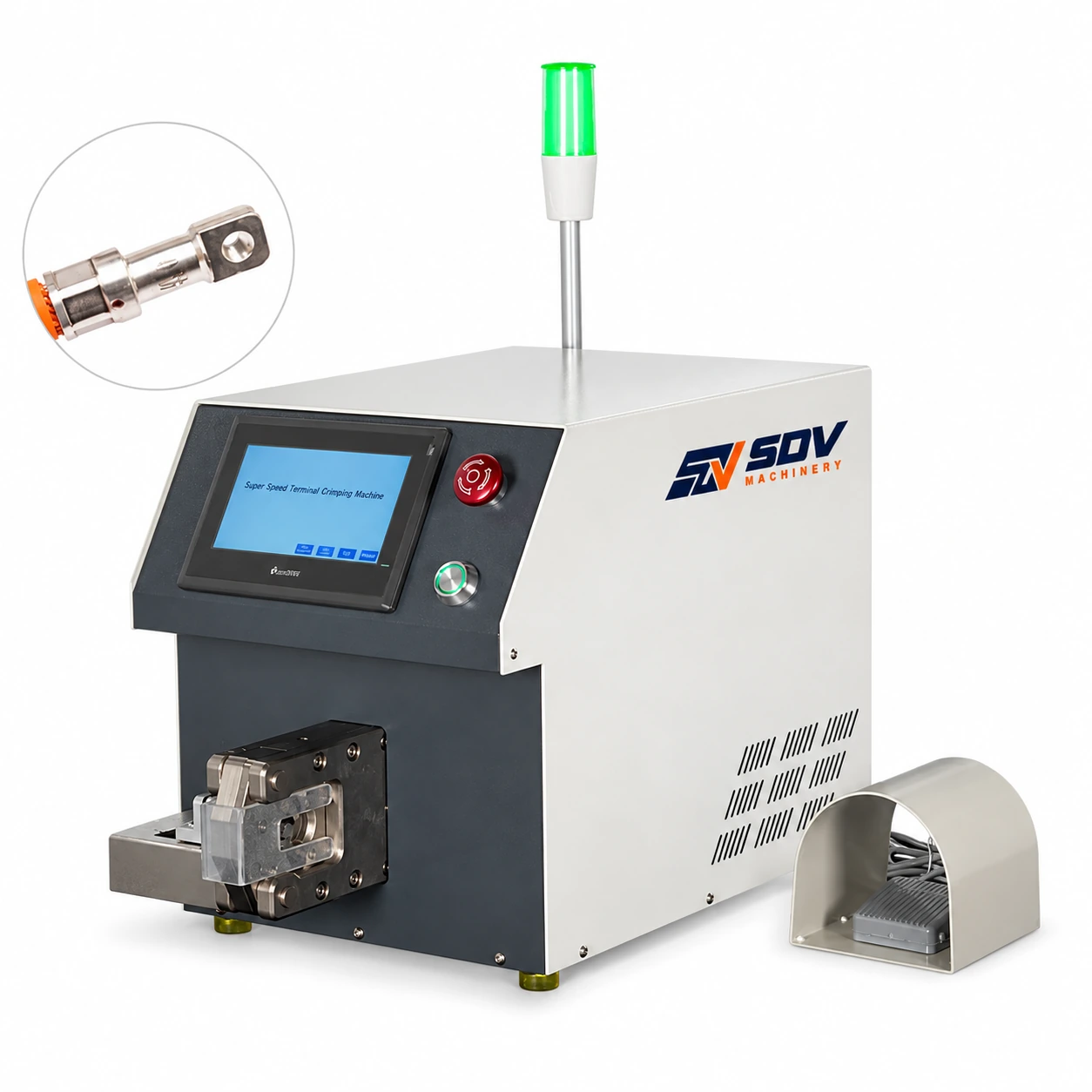

Feature
● Die-Set-Free Universal Hexagonal Crimping: Covers the entire cross-section range from 2.5 mm² to 35 mm² without changing die applicators. The crimp diameter can be fine-tuned digitally in seconds, drastically cutting setup time during multi-gauge harness production.
● High-Precision 40 KN Servo Motor Drive: Driven by a high-torque servo motor and industrial micro-controller chip. Delivers a consistent 40 KN (4.0 Tons) force with a long 240 mm stroke, ensuring 100% repeatable crimp compaction density and gas-tight electrical contact.
● Ideal for EV & New Energy Wire Harnesses: Tailor-made for closed tubular terminals, cold-pressed copper ferrules, battery storage connectors, and high-voltage EV charging gun cables.
● Compact & Energy-Efficient Desktop Frame: Weighing 80 kg with a compact 560 × 370 × 300 mm footprint, the EW-50C-1 offers high-tonnage crimping performance without requiring heavy floor space or noisy, high-pressure pneumatic air lines.
● Customizable Crimp Width Options: Features a standard 8.0 mm crimp width with options for custom jaw dimensions, accommodating non-standard tubular terminal barrels and specialized battery lug geometries.
Application Range
● EV Charging Gun & Harness Manufacturing: High-precision 360° hexagonal crimping of high-voltage conductors and charging connector terminals.
● New Energy & Solar Battery Storage: Splicing and terminating thick power transfer cables, inverter harnesses, and battery bank connectors.
● Control Panel & Cabinet Wiring: Rapid termination of tubular insulated ferrules and cold-pressed sleeves in industrial control boxes.
● Automotive & Heavy Equipment Wiring: Secure termination of grounding eyelets, starter motor leads, and power distribution cables.
