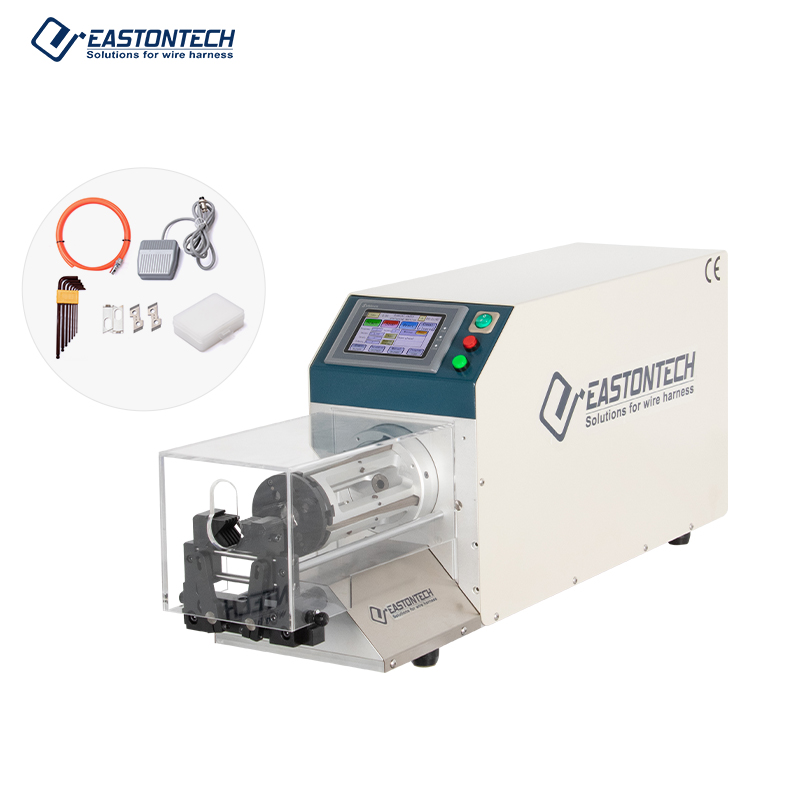

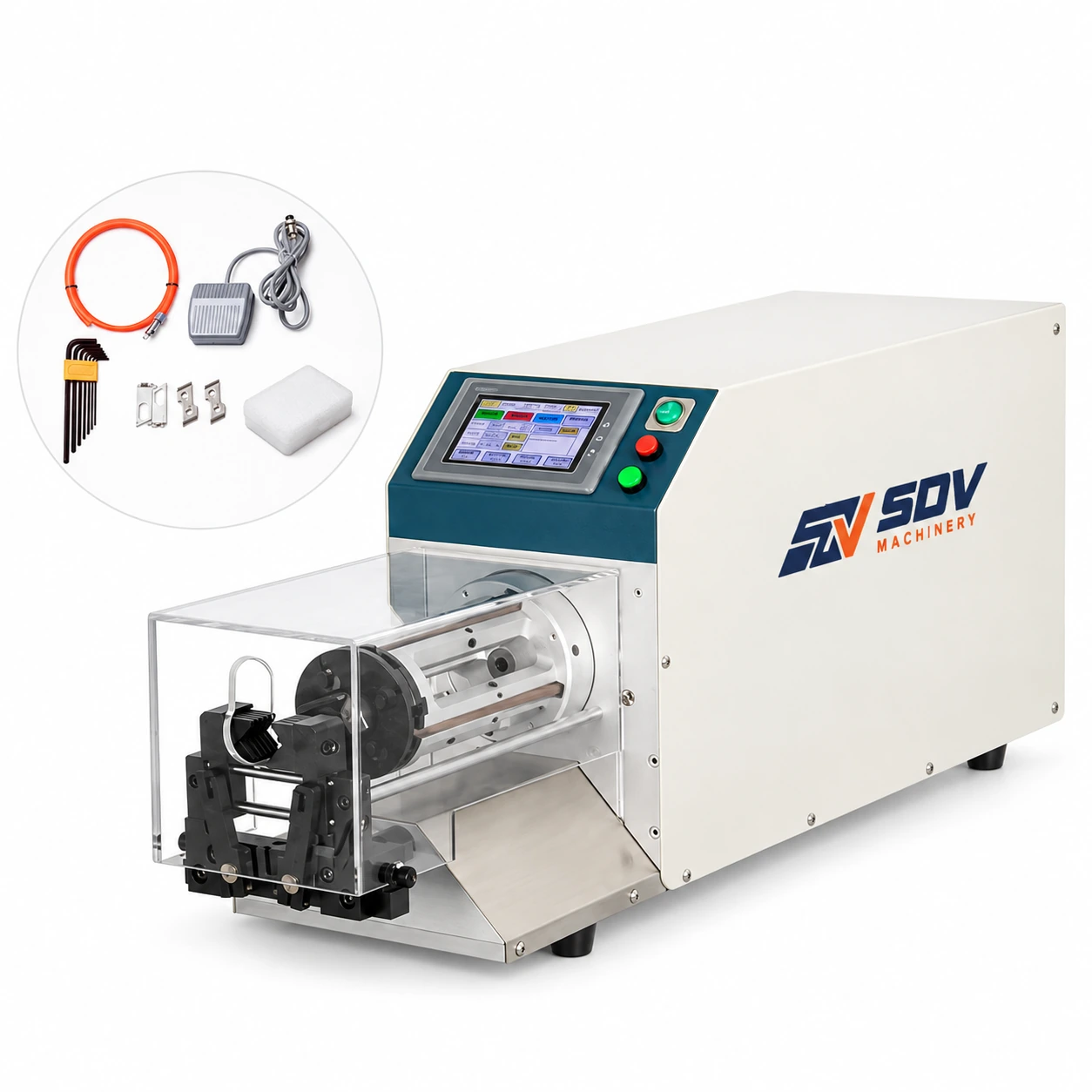

Coaxial Cable Stripping Machine 2-23mm EW-06S

Price of the selected optionon request
Delivery options

Description

Feature

● Mainly used for processing multi-layer stripping of small/middle/largesize communication cables.

● Touch screen interface, stripping depth/speed/distance and rotating time can be digital input.

● Using the most advanced rotary cutter frame, improve the processing accuracy and speed.

● Adopted with specific axis positioning device and rotary cutting tool, stropping 9 layers at most, and it can processing different size of wires without changing cutters.

● Wire clamping device: automatic centralizing, motor driving and clamping force is controlled by program.

Specifications

Model
EW-06S | EW-06S-1
Wire diameter
2-23mm | 2-23mm
Stripping mode
Rotary knife | Rotary knife
Capacity
300-800pcs/h(depends on wire material) | 300-800pcs/h(depends on wire material)
Max. stripping length
150mm | 200mm
Max. stripping layer
9 layers | 9 layers
Memory program
99 types of processing parameter data | 99 types of processing parameter data
Drive mode
Motor/ball screw drive | Motor/ball screw drive
Display
Touch Screen | Touch Screen
Blades material
Imported tungsten steel | Imported tungsten steel
Power
630W | 800W
Cut precision
0.01mm | 0.01mm
Dimension
920*220*400mm | 1000*225*400mm
Power supply
AC220V/50Hz (110V is optional) | AC220V/50Hz (110V is optional)
Weight
45KGS | 50KGS
Application for Coaxial Cable Stripping Machine 2-23mm EW-06S
