Wire Processing and Electrical Installation Equipment

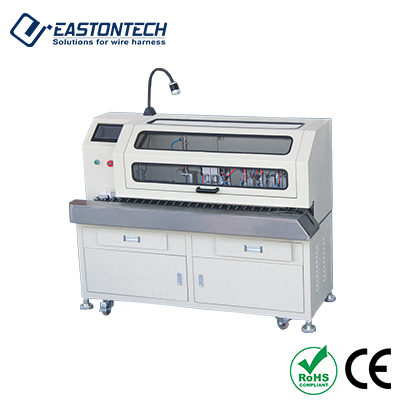

Automatic brush shield twist weave and strip core machine EW-705

Price of the selected optionon request
Delivery options

Description

Feature

● This machine is mainly used for USB data line, 1185DC line, automobile connector, microphone line, etc., which is composed of stripping, brush shield, twist weave,stripping core wire,twist core wire etc.

● The device is compact in structure, and has the characteristics of high speed and high precision, which solves the cumbersome and inefficient confusion of brush shielding and twisting in the traditional industry.

Specifications

Model
EW-705
Whether to provide processing customization
Yes
Power form
Linkage
Control mode
OD 2mm-10mm
Working voltage
AC220V 50HZ
Wattage
1KW
Stripping Length
10-40mm
Work efficiency
2200-2400pcs/hour
Weight
220KGS
Machine size
1540*680*1250mm
Application for Automatic brush shield twist weave and strip core machine EW-705
