Wire Processing and Electrical Installation Equipment

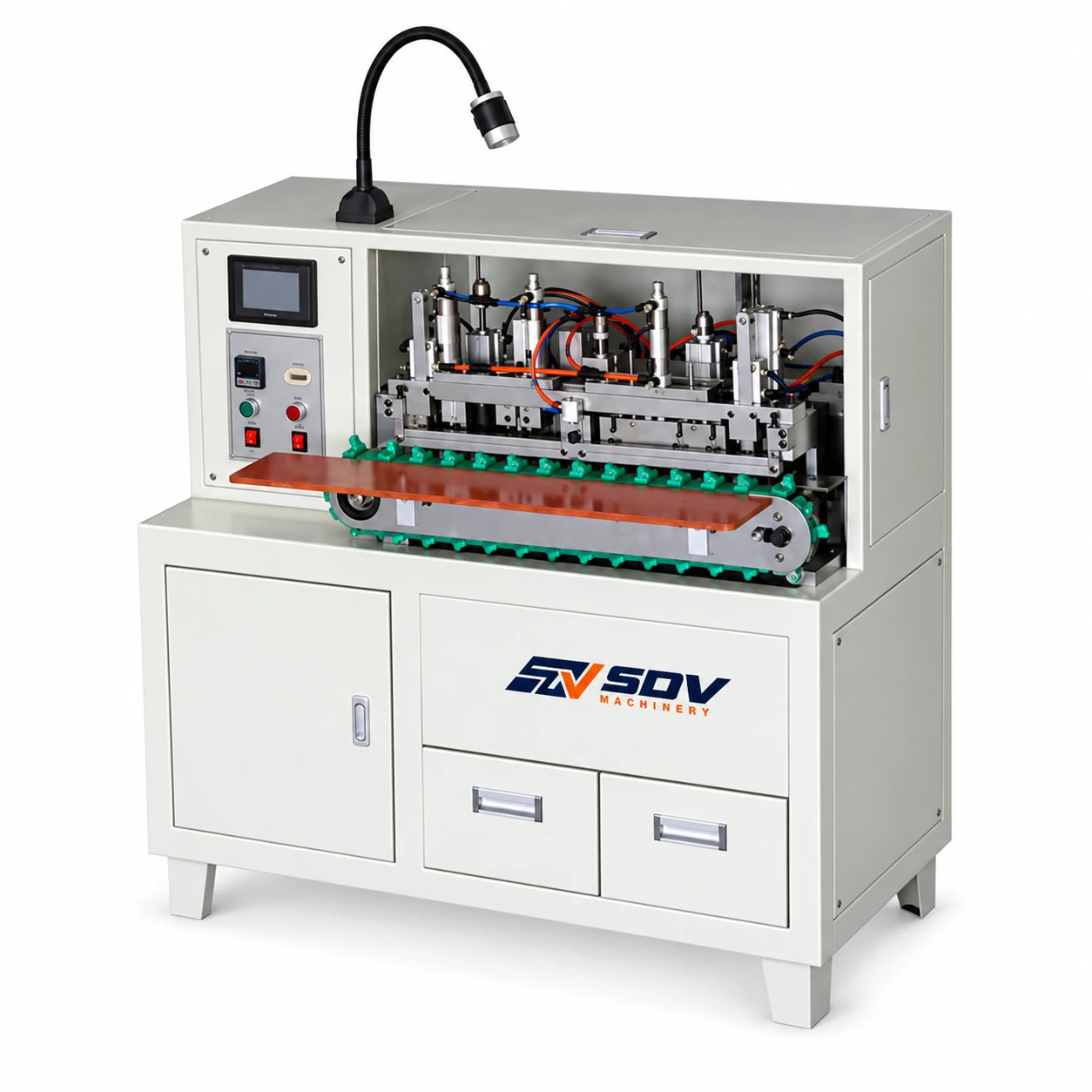

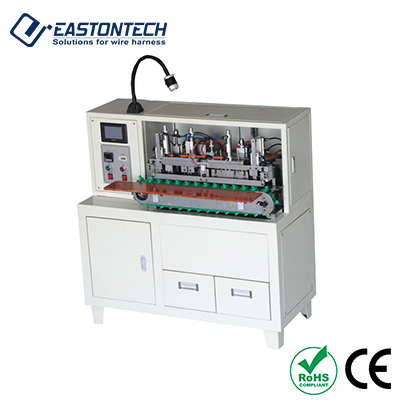

Wire Stripping twisting and tinning machine EW-701

Price of the selected optionon request
Delivery options

Description

Feature

● Applicable wires: UL2468, double parallel lines, 16-28AWG, SPT-1, SPT-2,, chargers.

● Introduction:set wire slitting, stripping, twisting,tinning, flat cutting once completed. Save 3-4 people more than the original operation. Saving manpower and stable quality. Safe and simple operation, high efficiency.

Specifications

Model
EW-701-1 | EW-701-2
Wire stripping size
2mm-9mm (flat wire) | 2mm-9mm(Flat sheathed wire)
Max size of slitting
50mm | 50mm
Soldering(Tinning) size
2mm-9mm | 2mm-9mm
Production capacity
1800-2000 purchase | 1800-2000 purchase
Voltage
AC220V/50HZ | AC220V/50HZ
Pressure of air source
0.5-0.8MPa | 0.5-0.8MPa
Weight
250KGS | 250KGS
Machine size
1100*630*1300mm | 1100*630*1300mm
Application for Wire Stripping twisting and tinning machine EW-701
