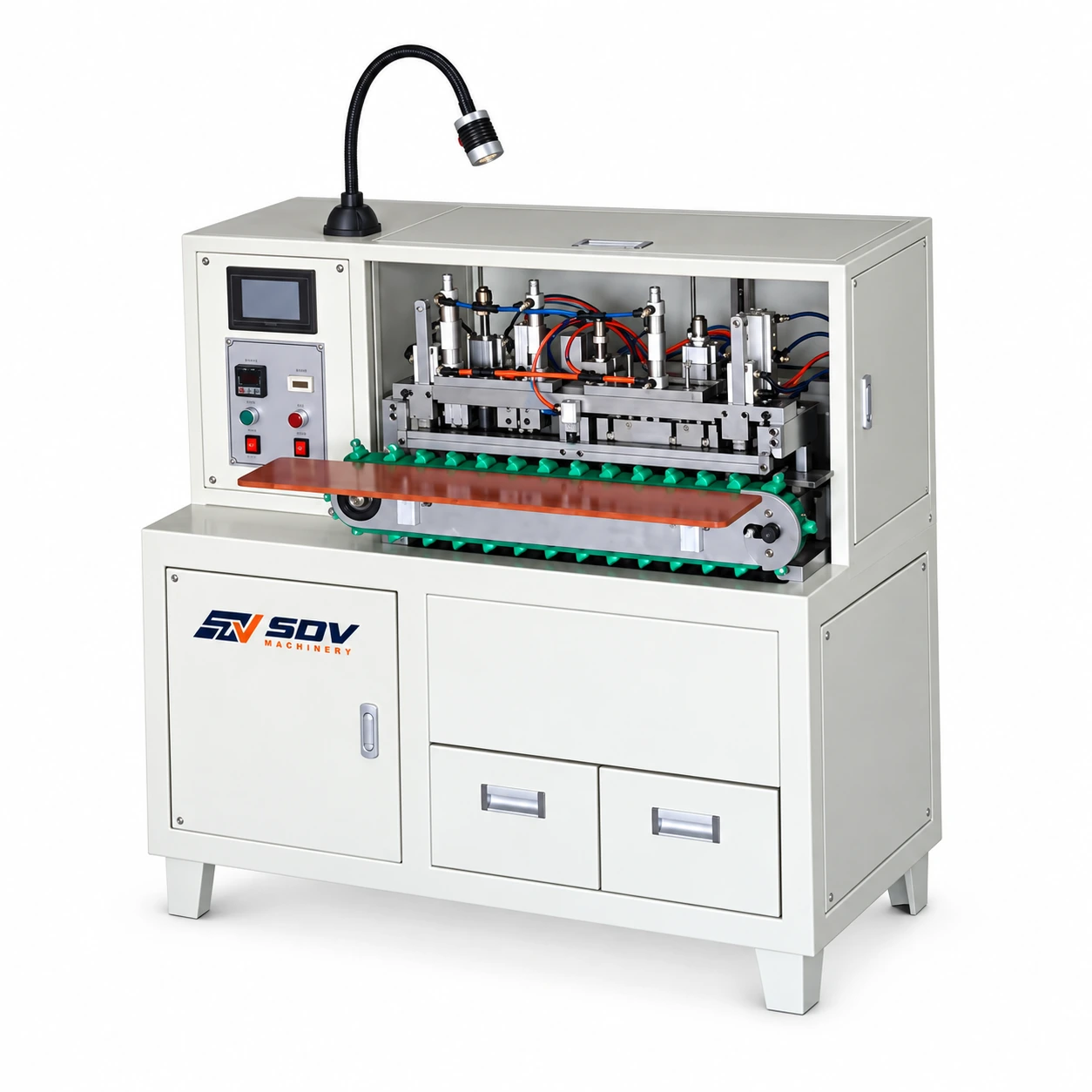

Wire Stripping twisting and tinning machine EW-702

Price of the selected optionon request
Delivery options

Description

Feature

● Applicable wires: H03VVH2-F,H05WH2-F,H03VV-F,RVV,VFF,two core round line, flat sheath, can be designed according to customer requirements.

● Introduction:set wire slitting,stripping,twisting,tinning,flat cutting once completed. Save 3-4 people more than the original operation. Saving manpower and stable quality.Safe and simple operation, high efficiency.

Specifications

Model
EW-702-1 | EW-702-2 | EW-702-3
Wire size (round sheathed wire)
2–9 mm (2 core) | 2–9 mm (3 core) | 2–9 mm (4/5/6 core)
Leave PVC length
>10 mm | >16 mm | >16 mm
Outer jacket stripping length
EW-702-1: standard max. 50 mm; optional 80/100/120 mm | EW-702-2: standard max. 50 mm; optional 80/100/120 mm | EW-702-3: standard max. 30 mm; optional 50/80/100/120 mm
Core stripping / tinning length
2–9 mm | 2–9 mm | 2–9 mm
Production capacity
1,800–2,500 pcs/hour
Air source
0.5–0.8 MPa
Power supply
220V/110V, 50/60Hz
Weight
300 kg
Dimensions
1200 × 630 × 1300 mm
