Wire Processing and Electrical Installation Equipment

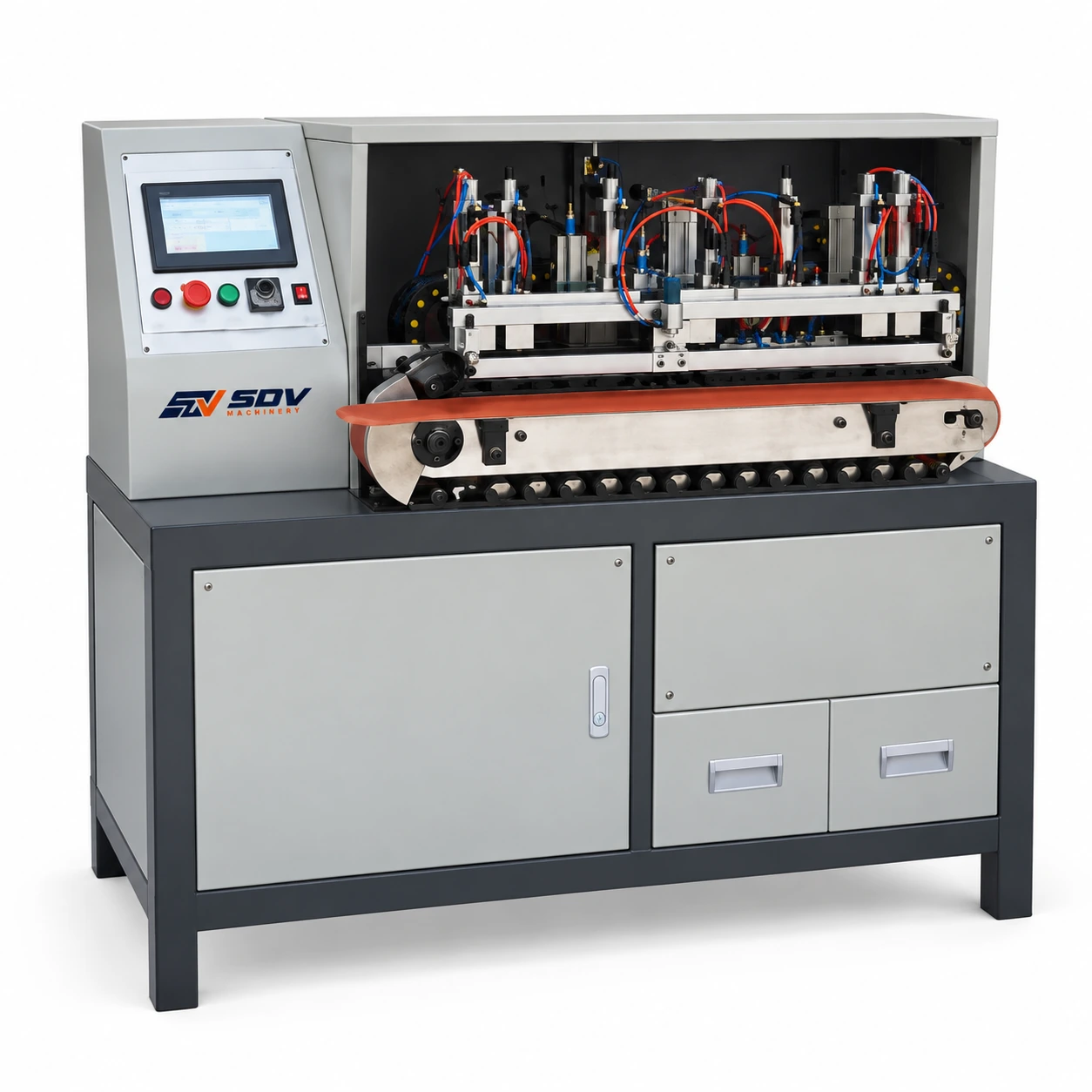

Wire stripping twisting and soldering machine EW-717

Price of the selected optionon request
Delivery options

Description

Feature

● Wire separation, stripping, twisting, and soldering in one and completed once for all, Adopted RKC digital temperature controller.

● 4 working positions are saved compared with original working mode, featuring labor saving, stable quality, safe and easy for operation and high efficiency.

● SIEMENS PLC controller;SMC air cylinder are available to be customized if special request.

● Applicable cable: SPT-1,SPT-2,H03VVH2-F,H05WH2-F,RVV,VFF.UL2468,double-branch parallel cable,20-28AWG, power chargers, two-core flat cable.Can be customized.

Specifications

Model
EW-717
Wire size
6-12mm
Strippinglength
20-60mm
Tinning length
3-12mm
Cutting accuracy
0.2±0.02*L
Productivity
2300-2500pcs/hour
Air pressure
0.5-0.8Mpa
Electrical connection
AC 220/110V/50/60HZ
Operation interface
Bilingual
Machinedimension
: 1150*770*1130mm
Weight
: 258KGS
Application for Wire stripping twisting and soldering machine EW-717
