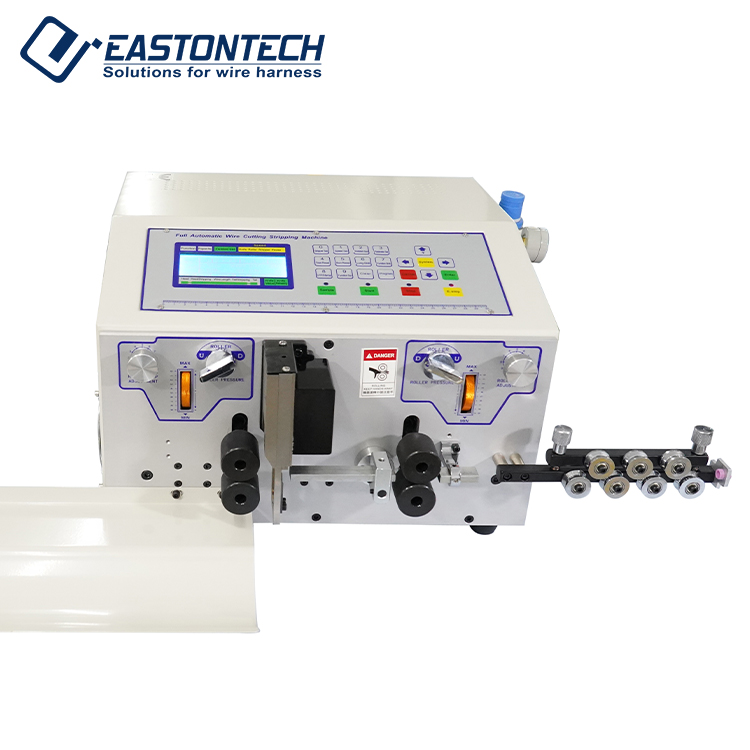

Sheathed Cable Cutting & Stripping Machine (flat and round) (0 - 12 mm) EW-06

Price of the selected optionon request
Delivery options

Description

Feature

● Full touch 7-inch LCD screen.

● Six-wheel drive wire feeding.

● One kilowatt servo motor cutter.

● One-key correction of wire length error.

Specifications

Model
EW-06C | EW-06D
Cable outer diameter
0 - 6 mm | 0 - 12 mm
Conductor cross-section
0.1 - 4.5 mm² | 0.1 - 10 mm²
Cutting length
1 - 100,000 mm | 1 - 100,000 mm
Stripping length (side I)
0 - 50 mm | 0 - 150 mm
Stripping length (side II)
0 - 50 mm | 0 - 90 mm
Blade material
Tungsten steel | Tungsten steel
Maximum guide tube diameter
10 mm | 13 mm
Productivity
3000 - 6000 pcs./h | 3000 - 6000 pcs./h
Display mode
LCD | LCD
Driving mode
4-roller driving | 4-roller driving
Power supply
110, 220 V (50 - 60 Hz) | 110, 220 V (50 - 60 Hz)
Power
300 W | 450 W
Weight
34 kg | 35 kg
Dimension
540 * 430 * 530 mm | 540 * 430 * 530 mm
Application for Sheathed Cable Cutting & Stripping Machine (flat and round) (0 - 12 mm) EW-06
