Wire Processing and Electrical Installation Equipment

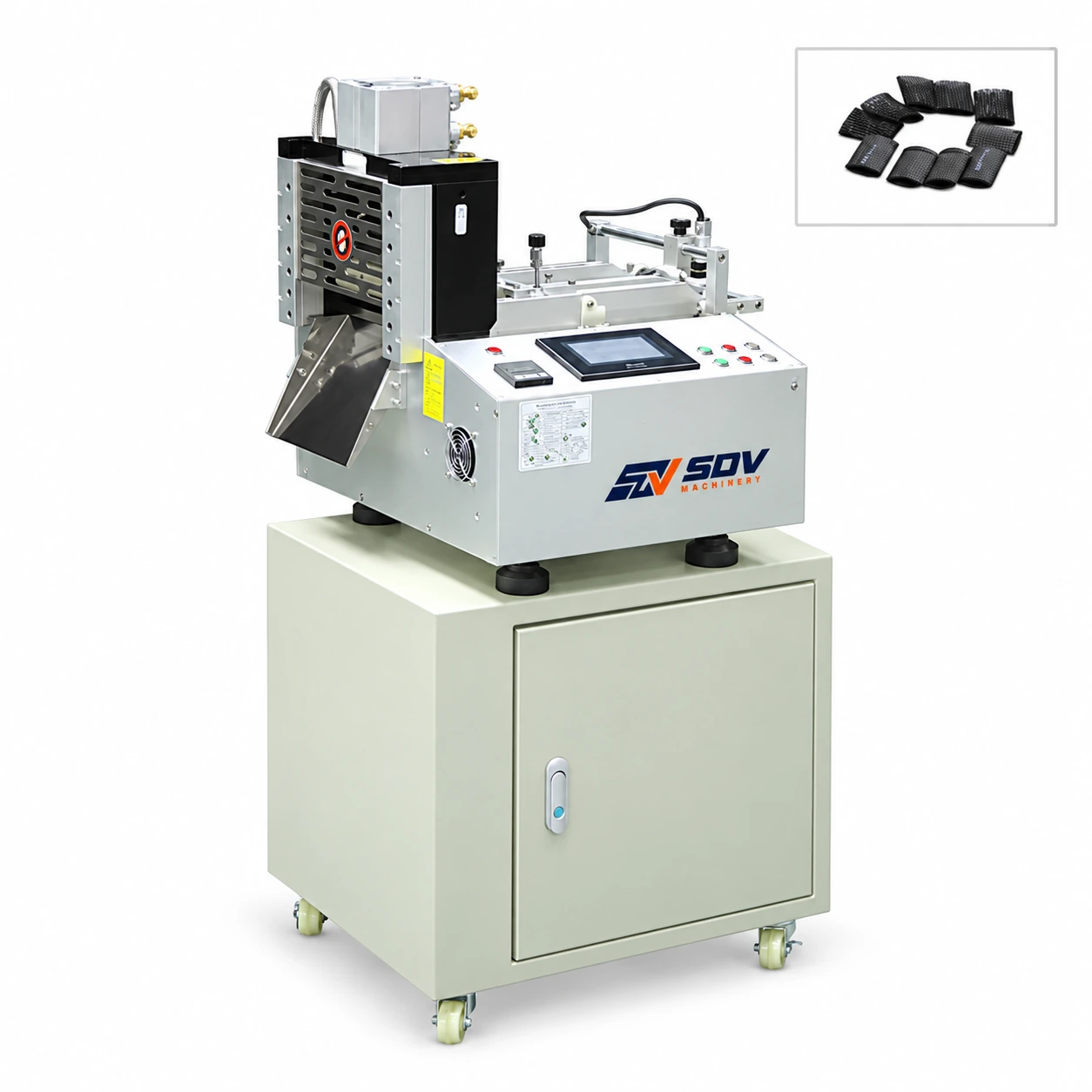

Heavy-duty Belt Cutter (hot/cold cutting) EW-1220R

Price of the selected optionon request
Delivery options

Description

Feature

● Accuracy: equipped with stepping motor to ensure the accuracy

● Smooth cut surface: melting & cutting by hot knife, woven label is cut neatly without fraying but not for heavy materials.

● Automatic operation: the whole processing can be automatically finished after setting the cutting length and quantity.

● Autopause: the machine will stop working once the material is used out.

● Memory function: the cutting length, quantity and cutting speed will be recorded before close the machine.

Specifications

Model
EW-1220R
Air compressor
0.3-0.6Mpa
Cut length
20mm-99999mm
Cut width
200mm
Tape material
Nylon woven bags, colored ribbons, backpack straps and other nylon materials
Productivity
150pcs/min (50cm)
Max.Blade Temp
350°C
Display Mode
Touchscreen
Power
0.9kw
Power Supply
220V/110V, 50HZ/60HZ
Weight
105kg+20kg
Package Dimension
675*645*695mm+550*445*465mm
Pedal
N/A
Application for Heavy-duty Belt Cutter (hot/cold cutting) EW-1220R
