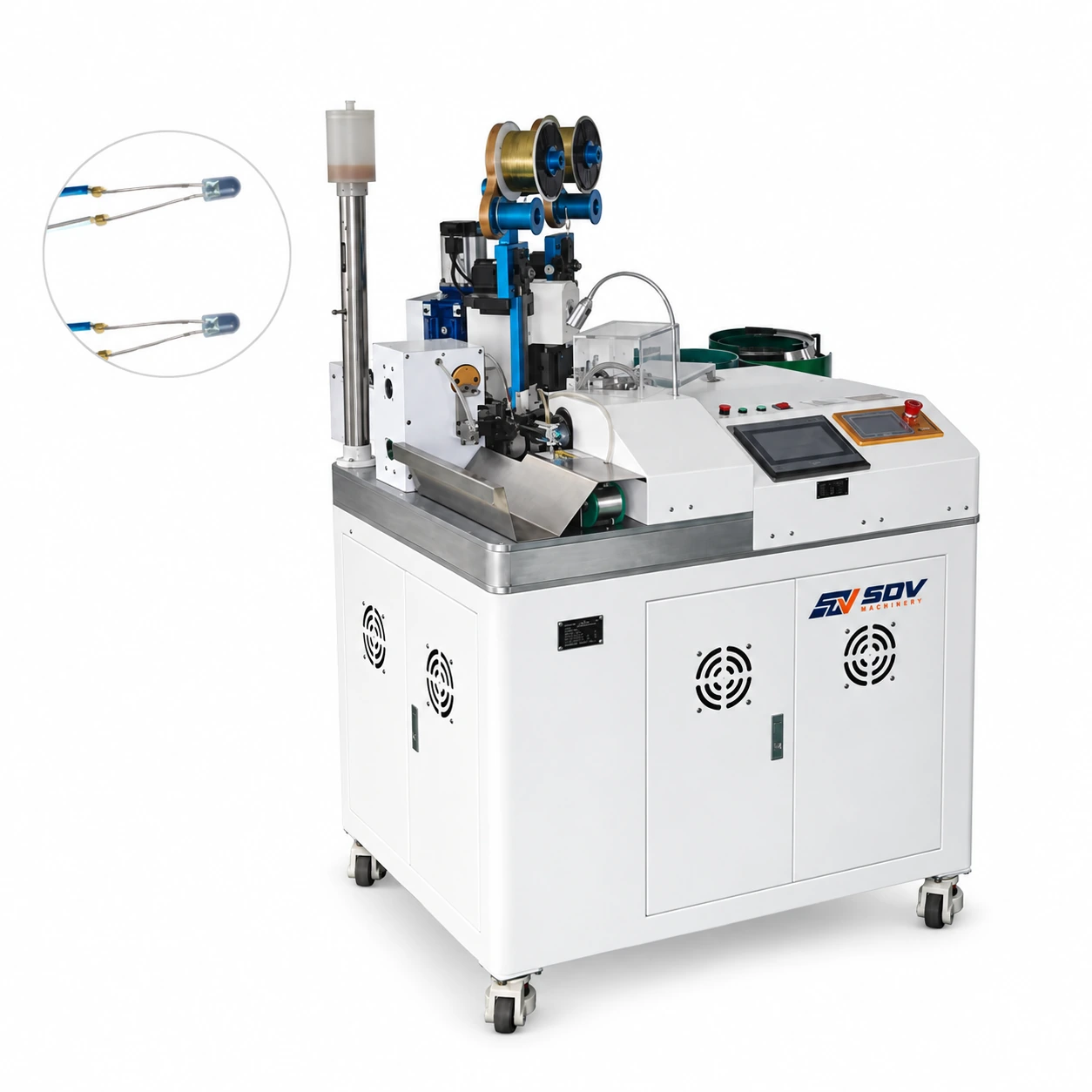

Fully Automatic One Head Copper Splicing Tinning Machine(LED Light) EW-1530

Price of the selected optionon request
Delivery options

Description

Feature

● This machine is widely used in LED signal indicator, LED display, LED light, LED light wiring processing, etc.

● This machine can supply wire 、cutting wire、stripping wire、LED ligth supply and shaping、copper and wire splice together,can realize really of full-automatic.

● The machine has automatic detection function: abnormal wire transmission, abnormal wire stripping, abnormal splice connection, abnormal LED light transmission, air pressure abnormality detecting device, abnormal wire soldering, realizing a true automated copper splice machine.

● This machine can set parameter: wire cutting length 、wire stripping length.

● LED ligth suplyy system is adopt automatic supply for sequence.

Specifications

Model
EW-1530
Wire range
AWG28-AWG12
Stripping length
0.1-15mm, other length can be customized
Lead screw and guide rail
OriginalTaiwan WIHIN
Cutting length
10-999mm
Speed
1500-1800pcs/h;
Power
3.0KW
Splice force
2.0T
Power
220V/110V/50/60HZ
Air pressure
0.5-0.7Mpa
Machine size
1200*1400*1600mm
Weight
280KGS
Driving way
High precision stepper motor、SMC、Advancetech
Additional information
Pneumatic components、self-developed、programmable
Additional information 2
numerical control system.
Application for Fully Automatic One Head Copper Splicing Tinning Machine(LED Light) EW-1530
