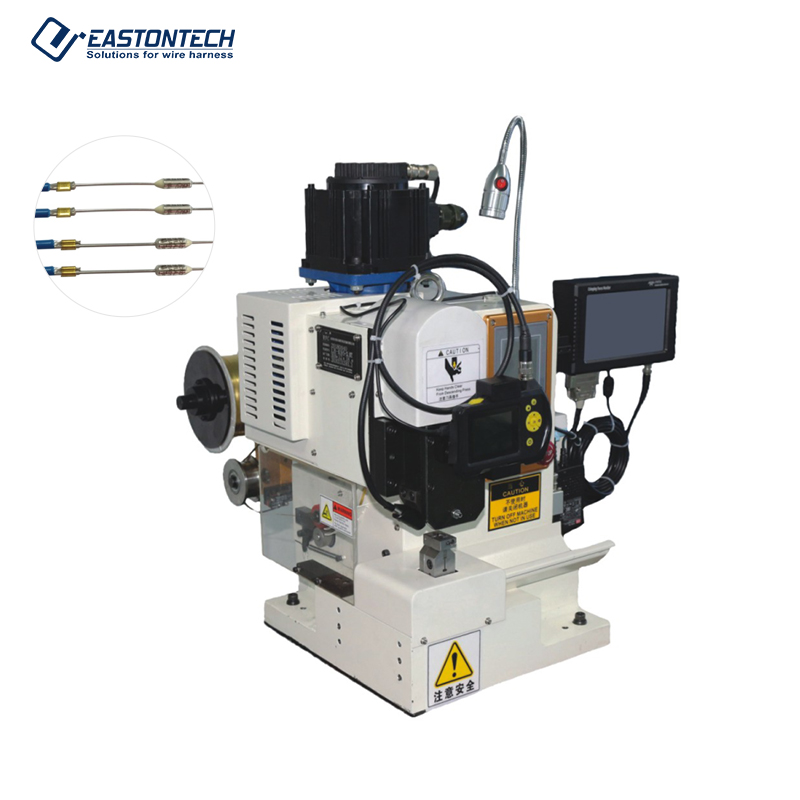

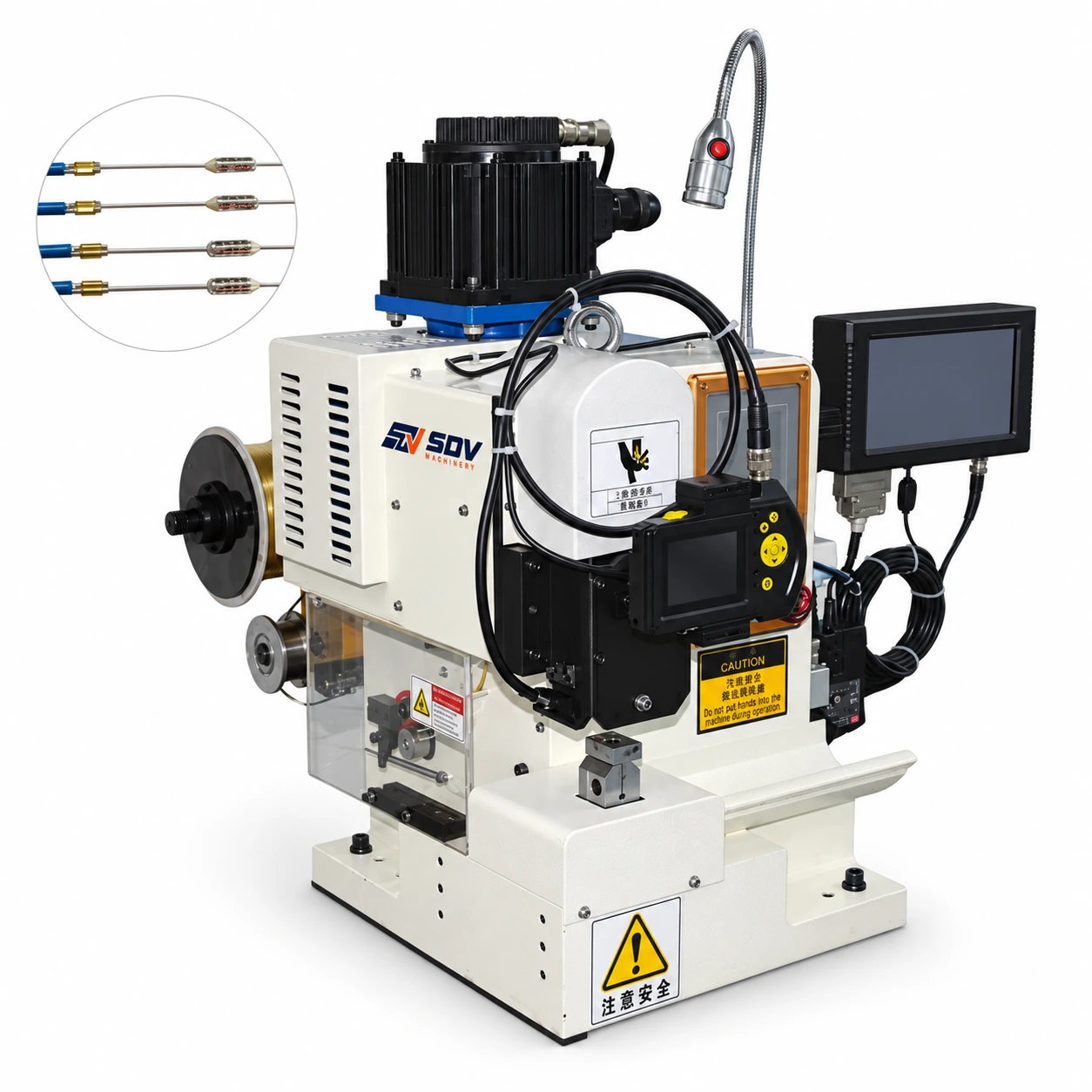

3.0T Servo Motor Copper Wire Splice Machine EW-1545

Price of the selected optionon request
Delivery options

Description

Feature

● With pressure detecting device that automatically detects the quality of the crimped product and can export the crimped data for analysis.

● The mould monitor is used to control the quality of the crimping, which allows the operator to visually observe the position of the product.

● With automatic conveying of copper strip, the material is automatically cut, formed, pressed, and no waste is generated, saving costs.

Specifications

Model
EW-1545
Splice force
2.0T/3.0 Ton (can adjust)
Splice time
0.01S (can adjust keep crimp time)
Stop splice machine
Can adjust
Motor rating
0.75KW/1.0KW Sevo motor
Power supply
AC220 110V /50 60HZ
Wire diameter
AWG24#-AWG10#
Feeding length parameters
1mm-99.9mm
Cooper width
1.0-6.0mm
splice precision
0.1-0.2(±0.05m)
Dimensions
340*360*450mm
Crimp Pull Power
within 20KGS
Weight
65KGS
Application for 3.0T Servo Motor Copper Wire Splice Machine EW-1545
