Wire Processing and Electrical Installation Equipment

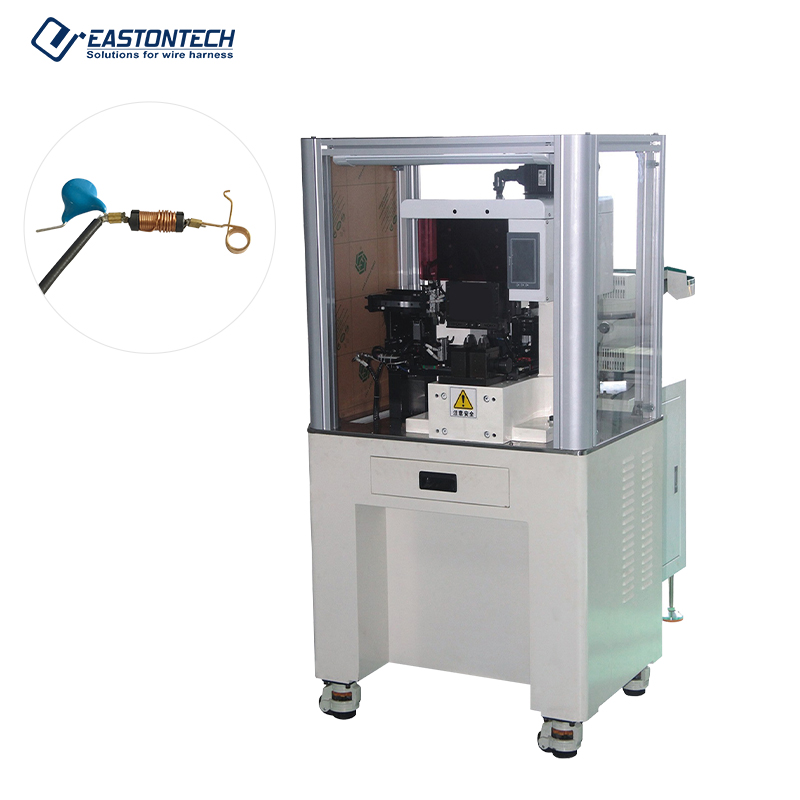

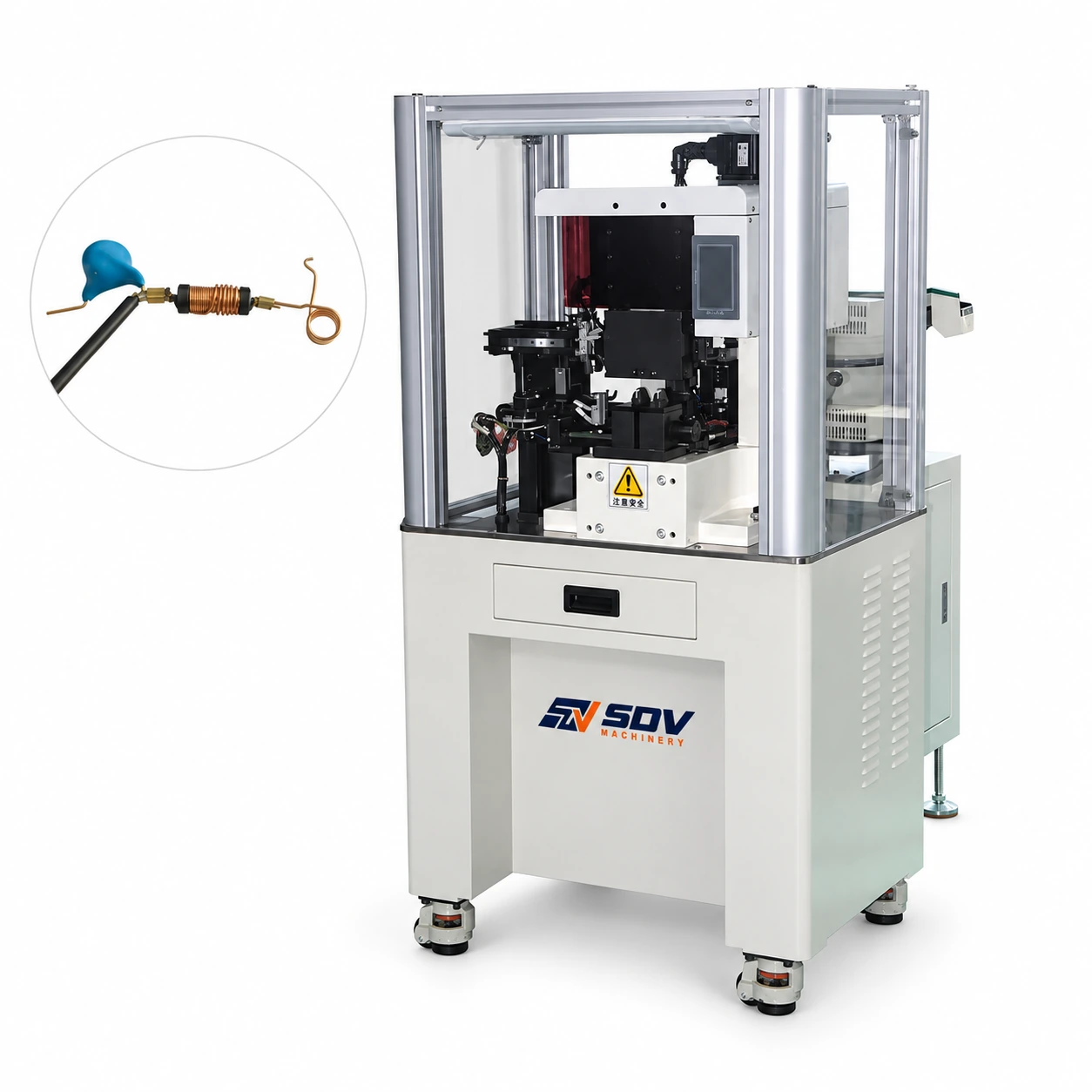

Double head wire splice machine EW-1560

Price of the selected optionon request
Delivery options

Description

Feature

● Use high precision step feed control,Control the length of the feed size,Digital operation feeding,A step will arrived.The overall line with PLC control, positioning the size of accurate.

● High-precision copper strip,The rubber tire feeding, cut off,splice molding, crimping, one-time finish,Pressure out of different specifications of copper,Product without scars, high efficiency,Precise riveting crimping, riveting after the strong anti-pull, the quality of very stable.

● The machine design fixed mold space,Operation easier to change different molds, adjust machine save time,Increase productivity.Product placement space,High security.

Specifications

Model
EW-1560
Crimp force
2.0 Ton (can adjust)
Crimp time
1S (can adjust keep crimp time)
Motor rating
0.75KW
Power supply
AC220 /110V 50HZ/60HZ
Feeding length
1mm-99.9mm
Cooper width
1.0-6.0mm
Driving way
Servo motor,stepping feeding
Application for Double head wire splice machine EW-1560
