Wire Processing and Electrical Installation Equipment

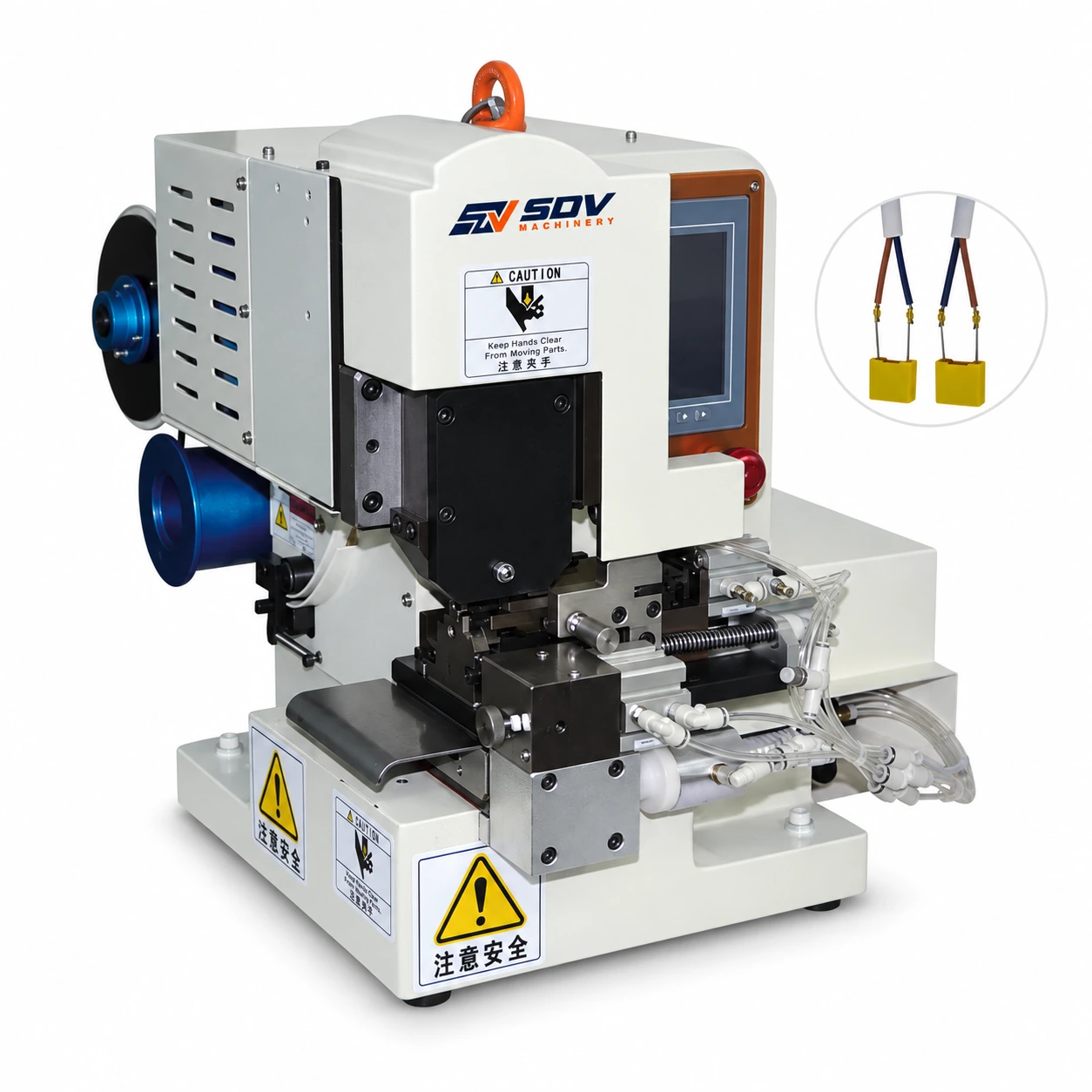

Servo Motor Wire Splice Crimp Machine EW-1565

Price of the selected optionon request
Delivery options

Description

Feature

● Mainly for power cord 、USB、Sheath wire、Charger wire、Vehicle aviation wire 、processing etc.

● Sevo System Control Optimize crimp mode and structure.

● crimping points to ensure contact with its own process of crimping does not distort at the same time play a role in positioning.

● Crimp height, material area of the metal or conductor contact area, so as to meet the presicion wire crimp height standards.

● Crimp width, to avoid causing copper and wire contact area is too small or large to strictly control.

Specifications

Model
EW-1565
Splice force
2.0 Ton (can adjust)
Splice time
0.01S (can adjust keep crimp time)
Stop splice machine
Can adjust
Motor rating
750W Sevo motor
Power supply
AC220/50HZ
Wire diameter
AWG18#-AWG12#
Feeding length parameters
1mm-99.9mm
Cooper width
1.0-6.0mm
splice precision
0.1-0.3(±0.05m)
Stripping length
2mm-10mm
Driving way
Servo motor,stepping feeding,
Dimensions
340*360*650mm
Weight
65KGS
Application for Servo Motor Wire Splice Crimp Machine EW-1565
