Feature

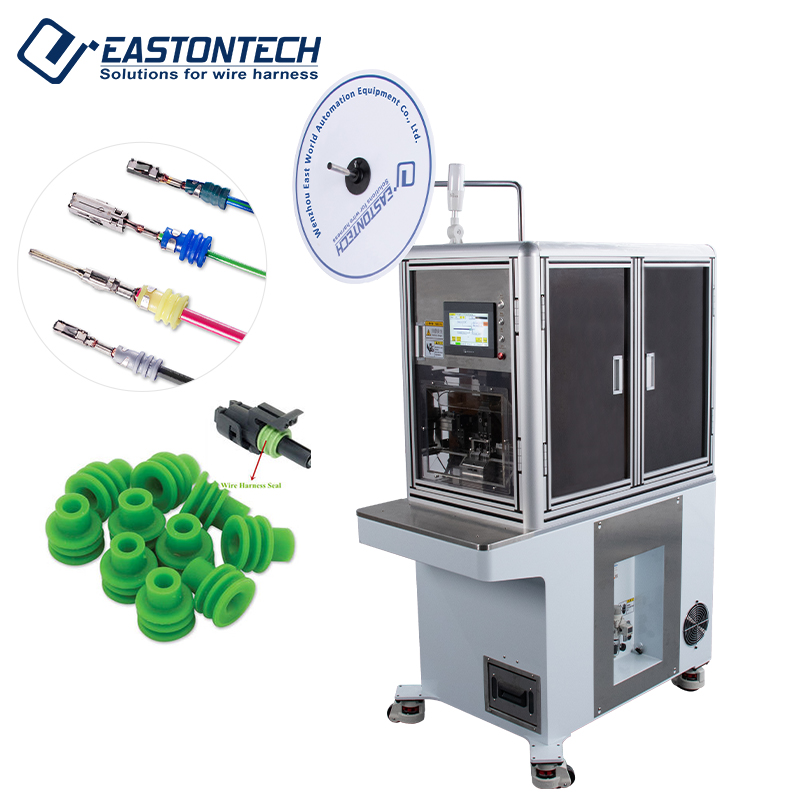

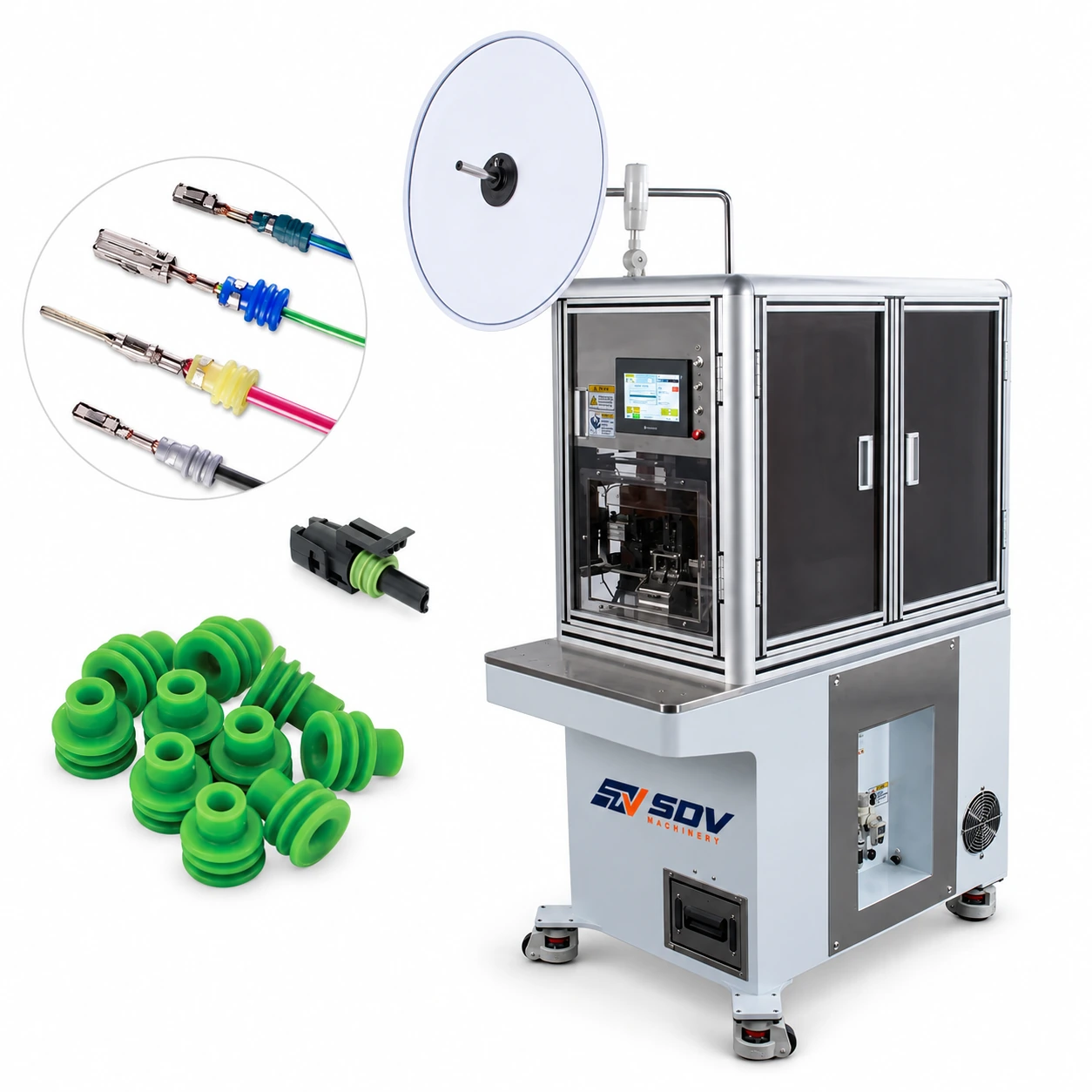

● 3-in-1 Integrated Workstation: Automates waterproof seal insertion, wire jacket stripping (0.1–10 mm), and terminal crimping in one continuous cycle—slashing labor time by up to 60%.
● Full Digital Parameter Adjustment: Seal threading depth, wire stripping length, and conductor position are fully programmable via touchscreen data entry, eliminating mechanical shims.
● Servo & Lead-Screw Precision Drives: High-efficiency servo actuation combined with precision ball-screw slides ensures smooth stripping movement and tight cutting tolerance (±0.02 mm).
● Robust 3.0 Ton Crimp Force: Delivers 3.0 T of stable stamping force via a 40 mm stroke, accommodating open-barrel and closed-barrel automotive terminals up to 2.5 mm².
● Modular Quick-Change Seal Feeder: Vibrant bowl/track feeding mechanism allows rapid conversion between different waterproof plug shapes and sizes (≤ 10 × 10 mm).
● Optional Crimp Force Monitor (CFM): Upgradeable with an inline CFM system for real-time terminal crimp height and force curve verification to guarantee zero-defect output.
Application Range
● Automotive Wire Harness Manufacturing: Weatherproof connector assembly for sensor cables, door looms, and engine bay wiring.
● New Energy Vehicles (EV) & Charging Systems: High-reliability waterproof seal insertion for battery management and outdoor charging harnesses.
● Marine & Commercial Transportation: IP67/IP68 rated terminal crimping for navigation, lighting, and heavy machinery control panels.
● Outdoor Lighting & Power Equipment: Waterproof rubber plug integration for outdoor LED arrays and industrial junction boxes.
