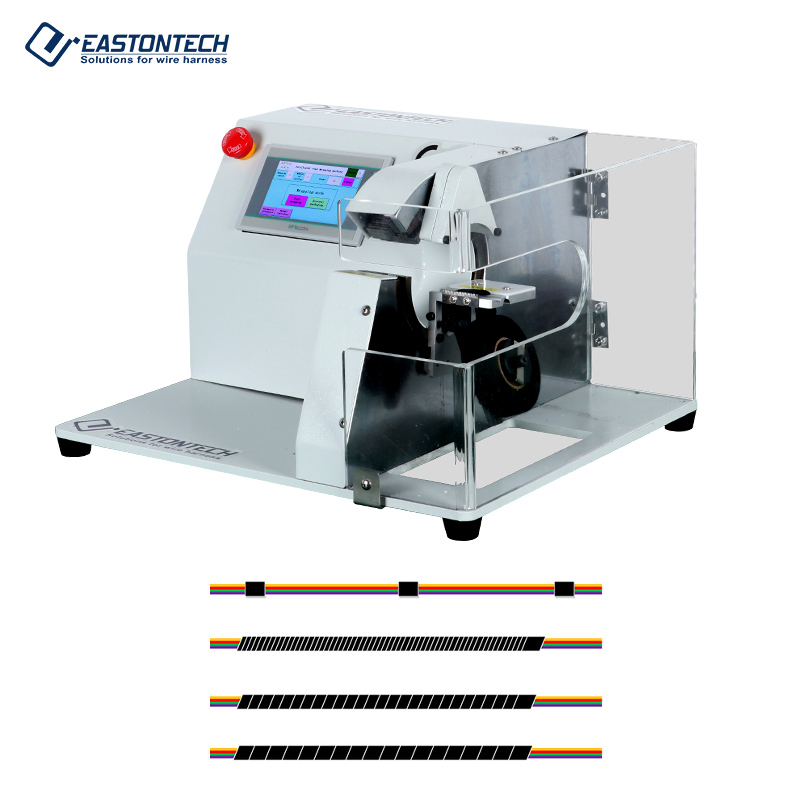

Tape Wrapping Winding Machine (0.1 - 30 mm OD) EW-AT-301

Price of the selected optionon request
Delivery options

Description

Feature

● The EW-AT-301 is a tape wrapping machine for maximum 30 mm OD products.

● Full wrap; spot wrap; multi-section wrap.

● Unlimited wrapping length with fast wrapping speed.

● Custom tape fixture in accordance with tape samples.

● Double the productivity compared to manual wrap.

● Equipped with safety guard to ensure the safety during operation.

● Various optional power plug for different countries.

● For special application, please contact us for more details.

Specifications

Model
EW-AT-301
Wrapping outer diameter
3 - 25 mm (standard version)
Additional information
0.1 - 3 mm (confirmed according to the material)
Additional information 2
25 - 30 mm (confirmed according to the material)
Tape width
9 - 19 mm
Tape inner diameter
38/32 mm
Tape outer diameter
< 110 mm
Power supply
110, 220 V (50 - 60 Hz)
Weight
35 kg
Wooden case dimension
400 * 410 * 340 mm
Application for Tape Wrapping Winding Machine (0.1 - 30 mm OD) EW-AT-301
