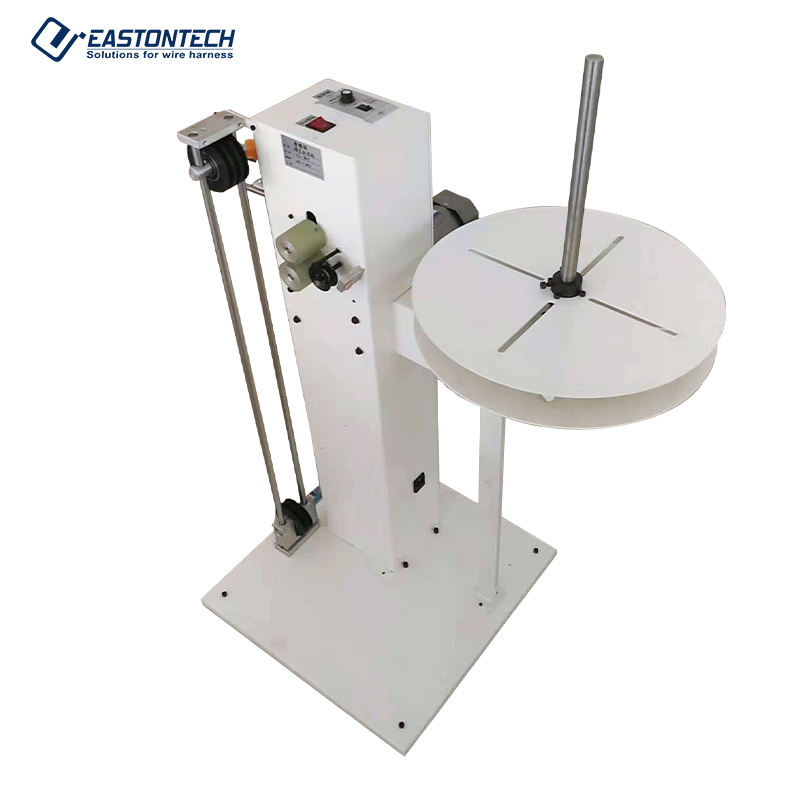

Horizontal wire feeding machine(Max.15kgs) EW-14D

Price of the selected optionon request
Delivery options

Description

Feature

● The wire prefeeding machine solves this problem with smooth acceleration and braking of the rotary

plate, the cable is led underconstant tension to the cross cutting machine for trouble-free feeding.

● Due to an electronic control system, which is activated with a pendulum arm, the feed rate automatically

adjusts to the actualrequirement of any downline machine, it does not require any electrical connections

to its host machine.

Specifications

Model
EW-14D
Function
Auto feeding by transverse or vertical
Motor power
120W
Transmission speed
10, automatic induction brake
Max. Loading weight
15KGS
Power supply
AC110/220V/50/60HZ
Machine size
500*700*450mm
Application for Horizontal wire feeding machine(Max.15kgs) EW-14D
