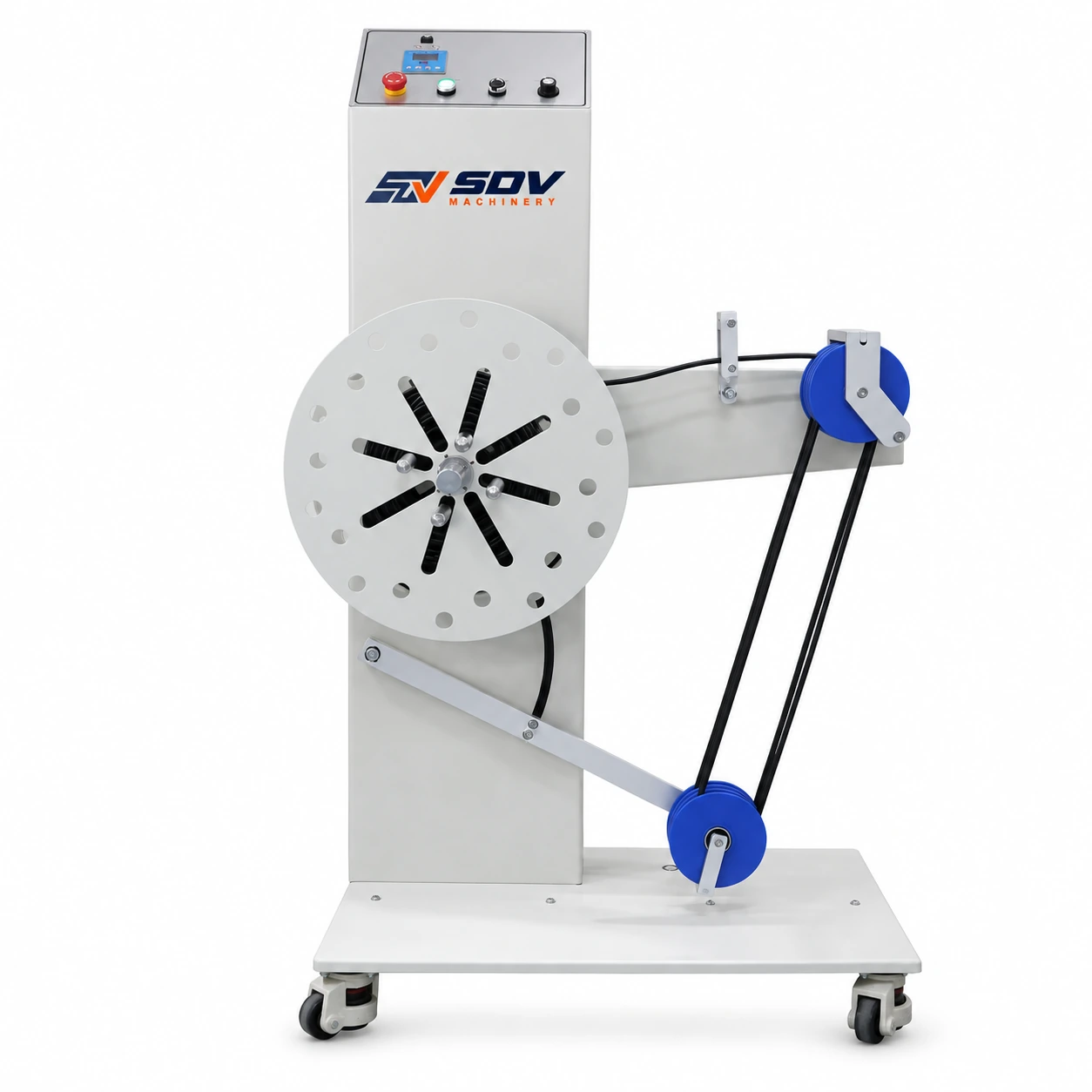

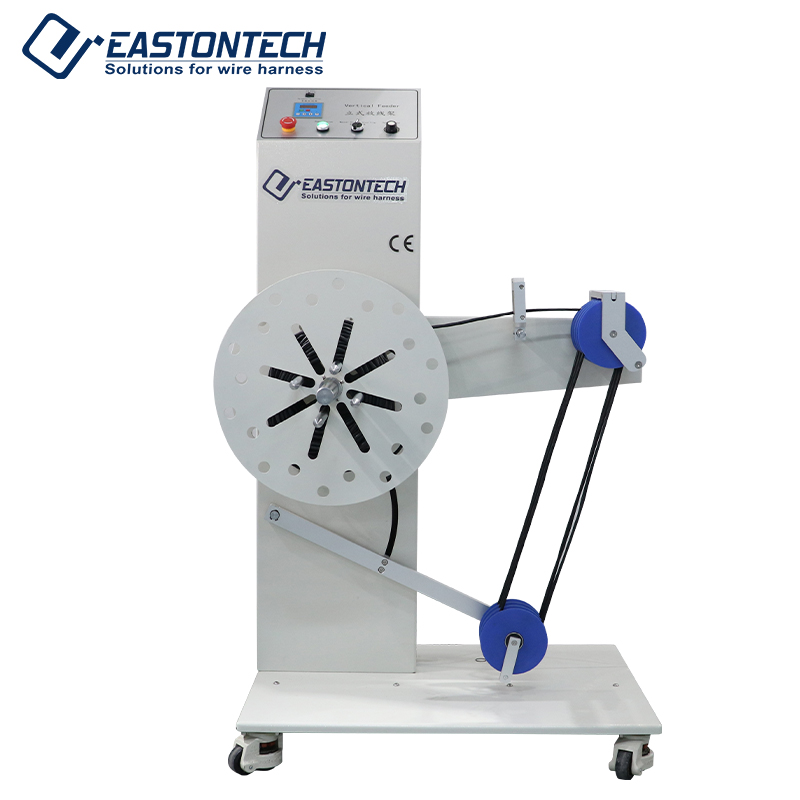

Automatic wire feeder(Max 35kgs) EW-1480

Price of the selected optionon request
Delivery options

Description

Feature

● Automatic Wire Feeding Machine EW-1480 is an ideal choice to cooperate with wire processing equipment.

● With excellent design of pneumatic pushing system and potentiometer,the de-reeling speed is controlled continuously in accordance with that of wire processing machine.

● Besides, the direction of wire coil de-reeling can be changed so as to facilitate rewinding wire.

● This model accommodates reels up to 500mm in diameter and loose wire coils.

Specifications

Model
EW-1480
Wire range
3-16 mm
Max. speed
2.3m/s
Max. coil weight
35kg
Coil diameter
200-500mm
Accumulated wire length
4m
Power supply
220V, 50Hz, 0.75 Kw
Machine weight
70KGS
Dimension
1000 x 600 x 1000mm
Application for Automatic wire feeder(Max 35kgs) EW-1480
