Wire Processing and Electrical Installation Equipment

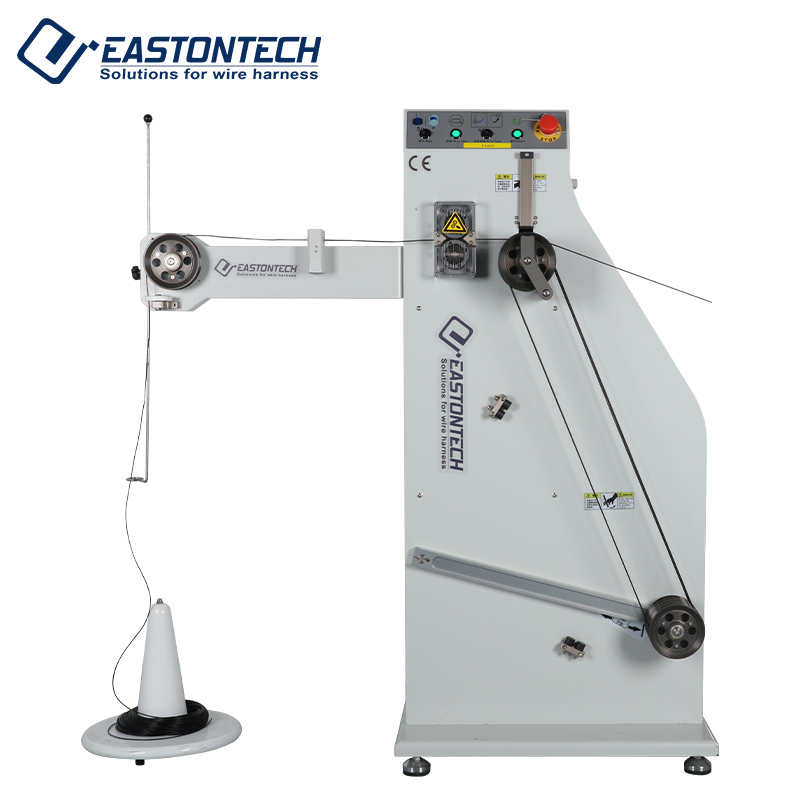

Automatic wire feeding device 0.2 mm²-4 mm² EW-14I

Price of the selected optionon request
Delivery options

Description

Feature

● Suitable for matching with automatic terminal crimping machine and computerized wire stripping machine, with automatic wire pay-off, driven by servo- -motor, and stable wire feeding.

● Effectively saving production cost and raising productivity.

● Can be custom-made if special requirements is made.

Specifications

Model
EW-14I
Wire range
0.2 mm²-4 mm²(AWG11#- AWG25#)
Max. speed
6m/s
Max. accelerated speed
34m/s2
Max. coil height
1000mm
Max. coil diameter
650mm
Accumulated wire length
6.5m
Weight
80KGS
Dimension
1000 x 500 x 1300mm
Application for Automatic wire feeding device 0.2 mm²-4 mm² EW-14I
