Wire Processing and Electrical Installation Equipment

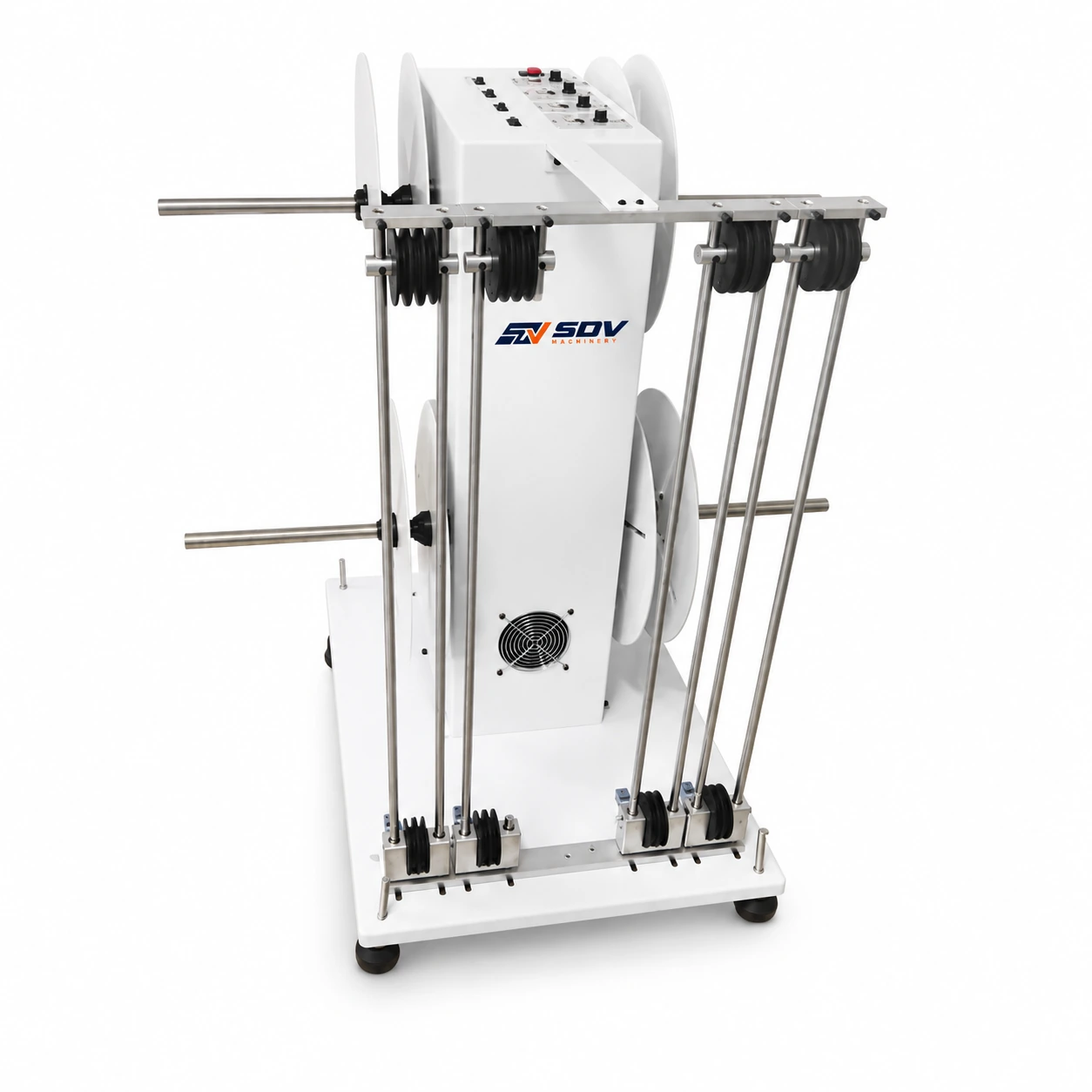

Four-axis(Six-axis) Wire Feeding Machine(Max 15kgs) EW-14M

Price of the selected optionon request
Delivery options

Description

Feature

● The five station wire prefeeding machine feeds the wire gently and continuously to the active wire storage, while the intake of the fully automatic wire harness processing machine takes the wire out of the storage in order to further processing, the wire is led under constant tension for trouble-free feeding.

Specifications

Model
EW-14M | EW-14M-1
Motor Power
140W | 120W
Axis
4 axis | 6 axis
Power Supply
AC110/220V/50/60HZ | AC110/220V/50/60HZ
Transmission Speed
10, automatic induction brake | 10, automatic induction brake
Max. Loading Weight
15KGS | 15KGS
Machine Size
500*500*900mm | 990*860*1050mm
Application for Four-axis(Six-axis) Wire Feeding Machine(Max 15kgs) EW-14M
