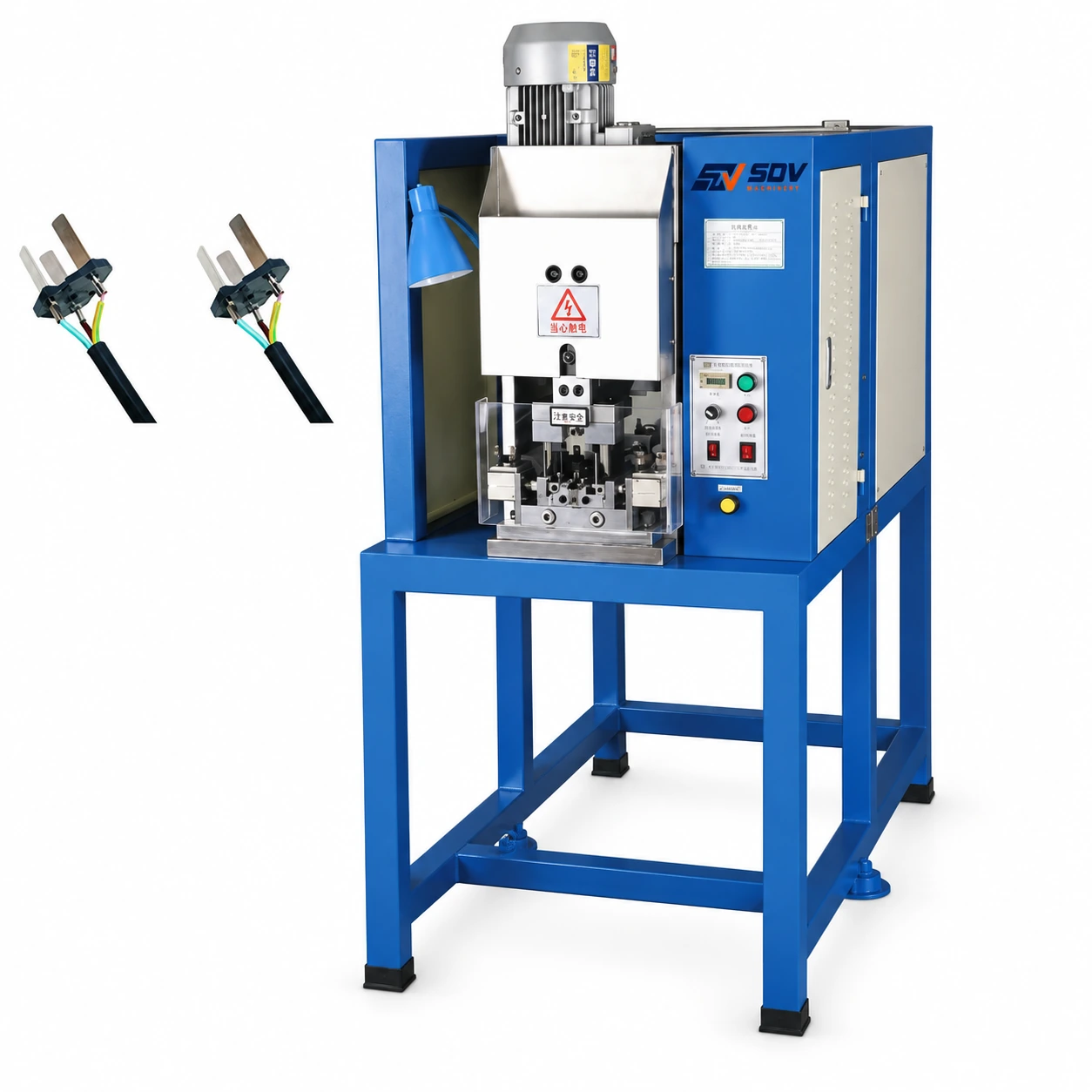

Three Flat Pin Plug Crimping Machine EW-7010

Price of the selected optionon request
Delivery options

Description

Feature

● Automatic feed and pressure connection can be completed once for all.

● Equipped with SMC Air Cylinder and a protective unit on the pressure connection point and it is safe and convenient for operation.

● A green hand is easy to be skilled for operation.

● Special treatment such as separation as per length shall be negotiated by both sides.

● Applicable cable: RVV/3C(1.5 mm² below the squared is preferred).

Specifications

Model
EW-7010
Punching Force
3T
Pressure Of Air Source
0.5-0.8Mpa
Dimension
1250mm*730mm*1550mm
Pressure Connection Speed
600-1000pcs/hour
Voltage
AC220V/50Hz
Weight
250KGS
Application for Three Flat Pin Plug Crimping Machine EW-7010
