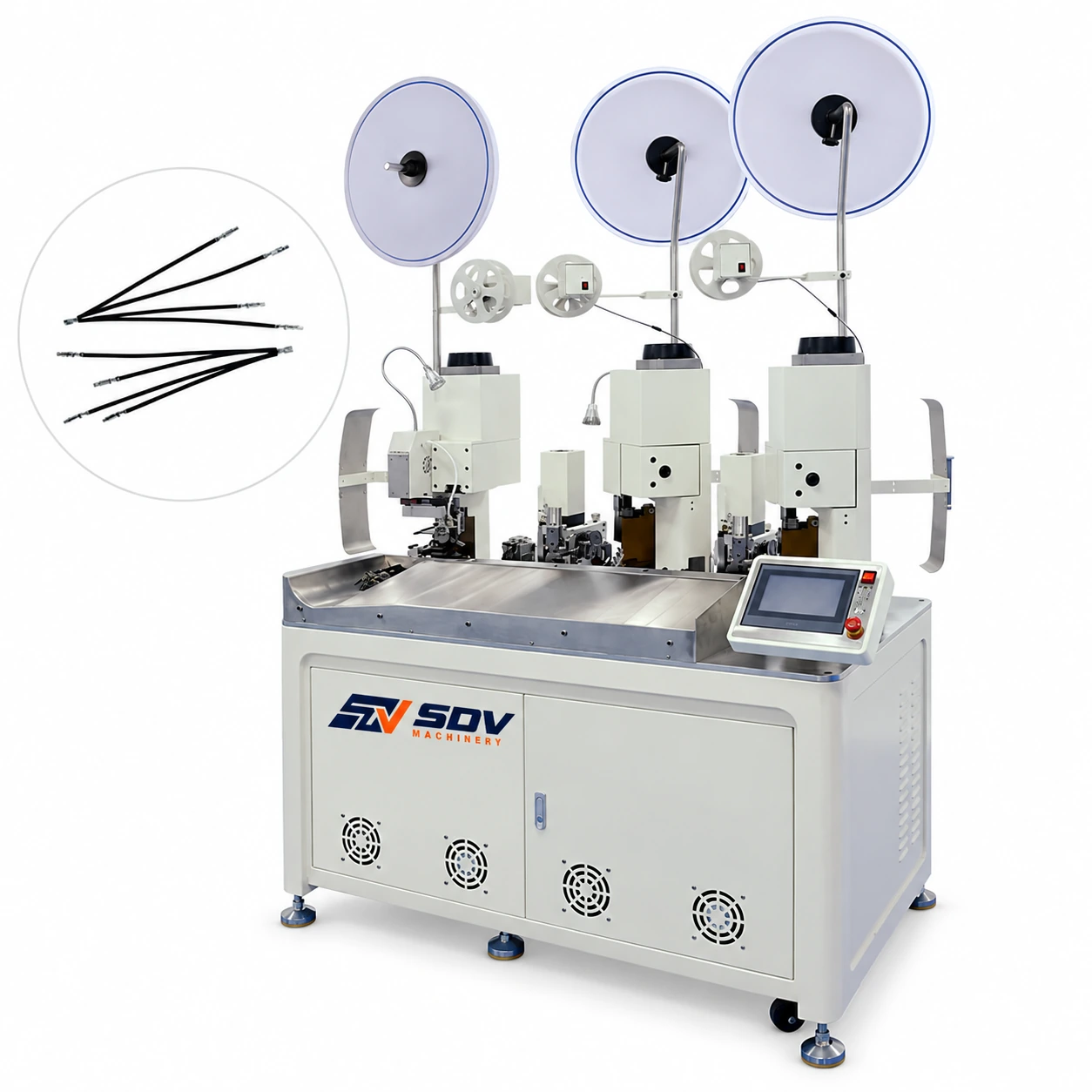

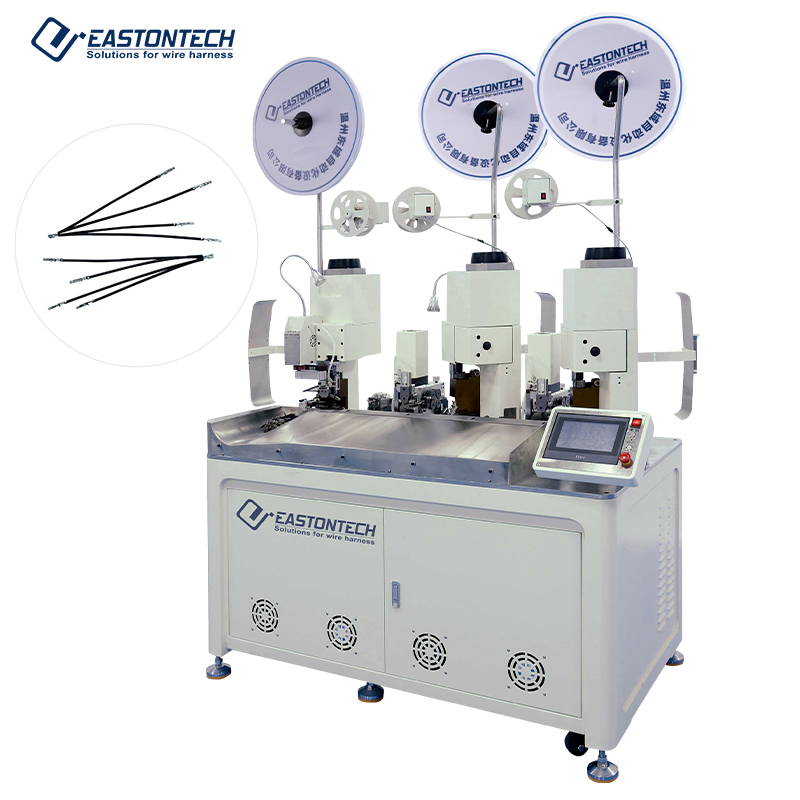

Fully Automatic Four Wire Joint Crimping Machine EW-8040

Price of the selected optionon request
Delivery options

Description

Feature

● Fully Automatic Wire Cutting Stripping Four wires Three ends Terminal Crimping Machine adopts procedural control interface with touch screen LCD display,it has operate system in Chinese and English, easy to operate and stable performance.

● Fast send wire,cut wire,strip wire and crimp the terminals,high precision, fast speed,front and rear swing arms are both controlled by servo,and ultra low noise,more stable.

● The length of sending/cutting/stripping wire, and the delay time of crimping,which all can be accomplished by digital configuration.

Specifications

Model
EW-8040
Applicable wire range
AWG28-AWG16
Stripping length
Front 0.5-8mm End:0.1-10mm
Cut precision
±(0.5+0.002*L) mm, L=cut length
Cutting length
40-9999mm
Capacity
1000pcs/hour(L=50-100mm)
Crimping force
2.0T
Applicators
30mm or 40mm strokes for optional
Function
Two wire both ends/ one end crimping/ Four wire crimp into on e terminal
Detection
Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power /Power Rating
220V/110V/50/60HZ /3000W
Display language
Chinese/English
Dimension
800*1400*1800mm
Weight
600Kg
Power cord plug
European, USA, Chinese plug
Application for Fully Automatic Four Wire Joint Crimping Machine EW-8040
