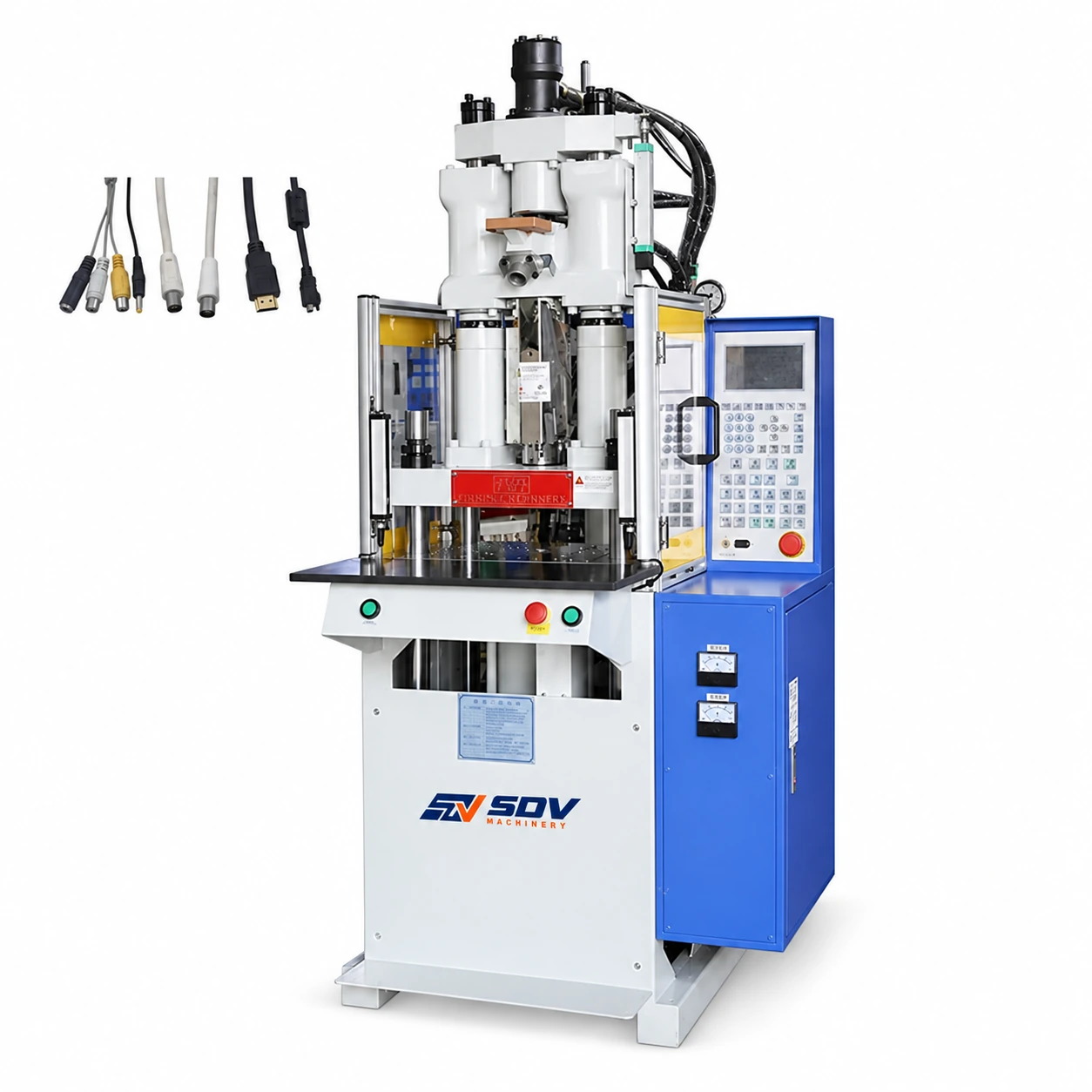

Vertical Injection Molding Machine 40T EW-9010

Price of the selected optionon request
Delivery options

Description

Feature

● Vertical clamping, vertical injection, small size, suitable for small and medium insert parts molding.

● Double cylinder injection system have high injection pressure and high injection speed, which is best choice for thin parts molding injection speed, which is best choice for thin parts molding.

● Vertical clamping,even pressure,accurate low-voltage protection,smooth injection and molding.

● Scalable computer programs, automatically removing, embedded devices, and other connections allow fully automatic operation of the whole machine.

Specifications

Model
EW-9010
Injection injection
Screw Diameter | mm | 20 25 30
Injection Pressure
kg/cm² | 2256 1747 1213
Theoretical Shot Volume
cm³ | 38 56 85
Max Shot W eight
g | 34 50 72
Injection Rate
cm3/sec | 22 35 50
Screw Stroke
mm | 100
Screw Speed
rpm | 0-205
Nozzle Contact Force
tons | 2
Nozzle Stroke
mm | 140
Number of Temperature Control
- | 3
Hopper Capacity
L | 20
Clamping system
Clamping Force | tons | 40
Opening Force
tons | 6.5
Platen Size
mm | 545x390
Distance Between Tie Bar
mm | 370x215
Min Mold Height
mm | 160/100
Opening Stroke
mm | 180
Max Open Daylight
mm | 340/280
Ejector Force
tons | 1.3
Ejector Stroke
mm | 45/95
Sliding system
Slide Stroke | mm | 350
Max Mold Weight
kg | 90
Station Clearance
mm | +0.02
Oil pressure system
Max Hydraulic Pressure | kg/cm2 | 140
Pump Output
L /min | 26
Oil Reservior Capacity
L | 100
Cooling Water Consumption
/hr | 400-600
Pump Moter Power
KW | 3.5
Barrel Heating Power
kw | 2.7
Total Power
kw | 6.2
Other
Machine Weight | tons | 1.3
Machine Dimension
m | 1.59*1.3*22
Shipping w eight
tons | 1.4
Shipping Measurement
mm | 1.8*1.5*2.3
Application for Vertical Injection Molding Machine 40T EW-9010
