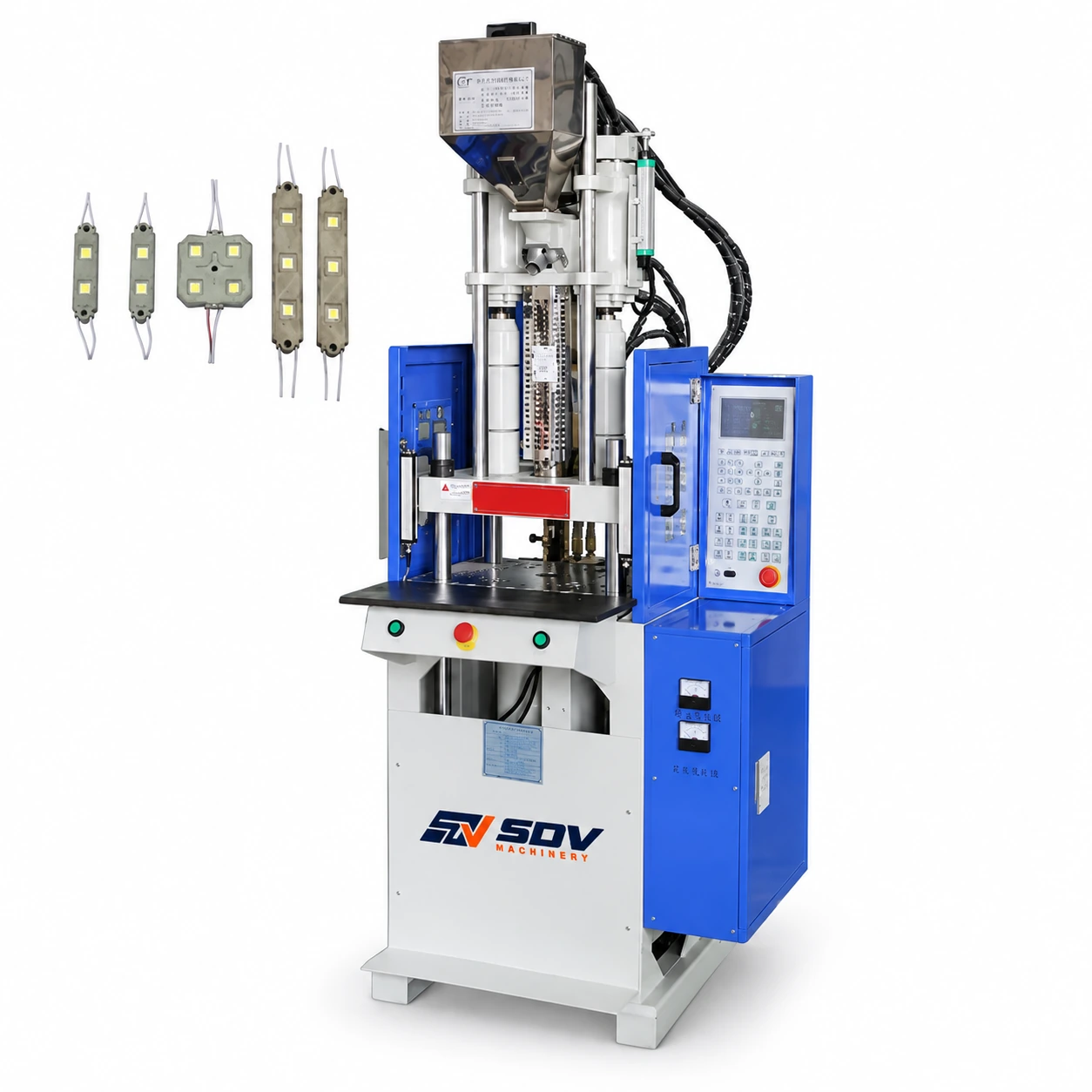

Vertical Injection Molding Machine 45T EW-9015

Price of the selected optionon request
Delivery options

Description

Feature

● Vertical clamping, vertical injection, small size, suitable for small and medium insert parts molding.

● Double cylinder injection system have high injection pressure and high injection speed, which is best choice for thin parts molding injection speed, which is best choice for thin parts molding.

● Vertical clamping,even pressure,accurate low-voltage protection,smooth injection and molding.

● Scalable computer programs, automatically removing, embedded devices, and other connections allow fully automatic operation of the whole machine.

Specifications

Model
EW-9015
Injection injection
Screw Diameter | mm | 20 25 35
Injection Pressure
kg/cm² | 2509 1742 1280
Theoretical Shot Volume
cm³ | 59 85 115
Max Shot W eight
g | 54 77 105
Injection Rate
cm3/sec | 36 52 71
Screw Stroke
mm | 120
Screw Speed
rpm | 0-190
Nozzle Contact Force
tons | 2.4
Nozzle Stroke
mm | 180
Number of Temperature Control
- | 3
Hopper Capacity
L | 20
Clamping system
Clamping Force | tons | 45
Opening Force
tons | 8.3
Platen Size
mm | 580x430
Distance Between Tie Bar
mm | 400x250
Min Mold Height
mm | 210/150
Opening Stroke
mm | 200
Max Open Daylight
mm | 410/350
Ejector Force
tons | 1.3
Ejector Stroke
mm | 45/95
Oil pressure system
Max Hydraulic Pressure | kg/cm2 | 140
Pump Output
L /min | 39
Oil Reservior Capacity
L | 130
Cooling Water Consumption
/hr | 600-800
Pump Moter Power
KW | 5.5
Barrel Heating Power
kw | 3.5
Total Power
kw | 9
Other
Machine Weight | tons | 1.4
Machine Dimension
m | 1.66*1.17*2.34
Shipping w eight
tons | 1.6
Shipping Measurement
mm | 1.76*1.27*2.44
Application for Vertical Injection Molding Machine 45T EW-9015
