Feature
● 0.01mm Micro-Precision Microcomputer Control

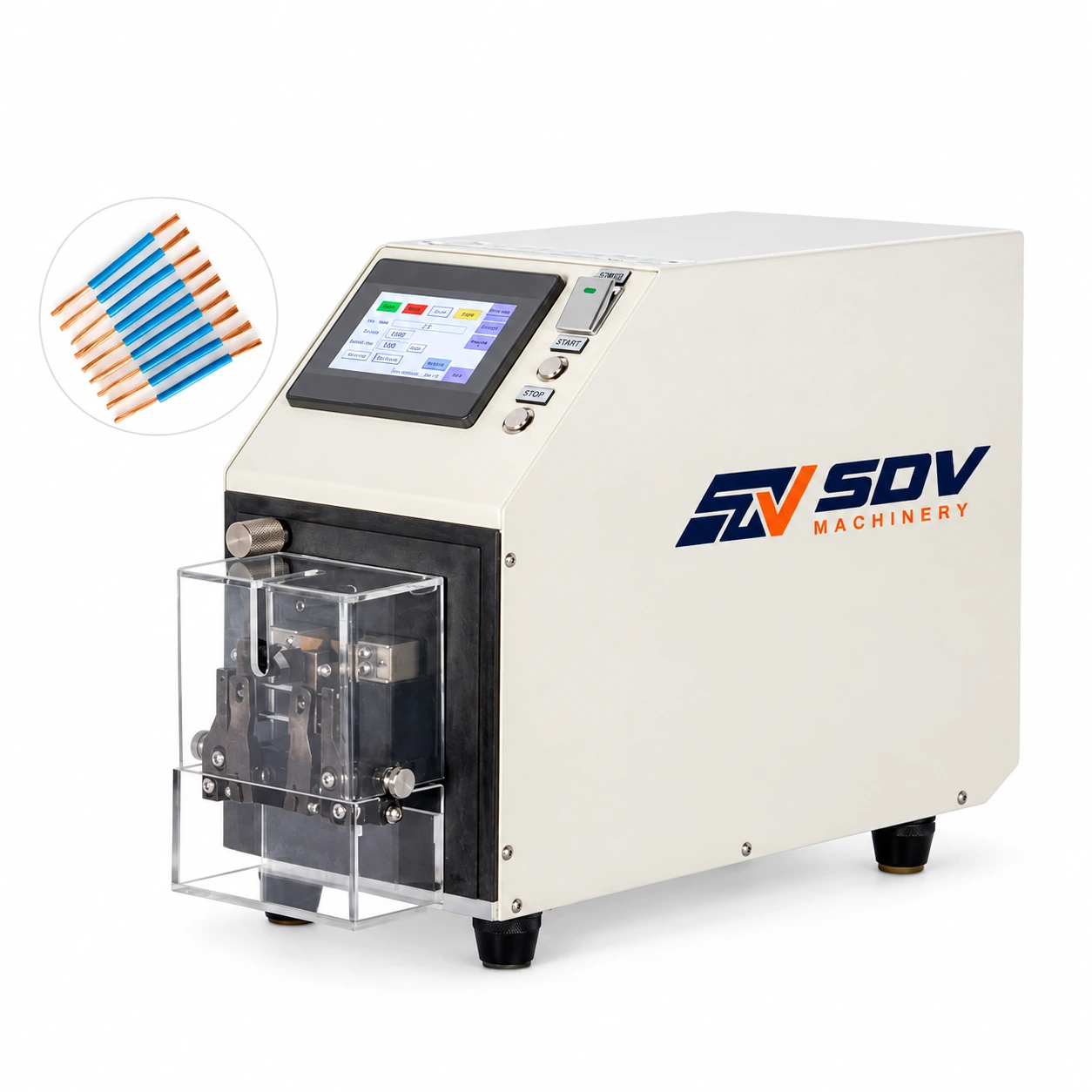

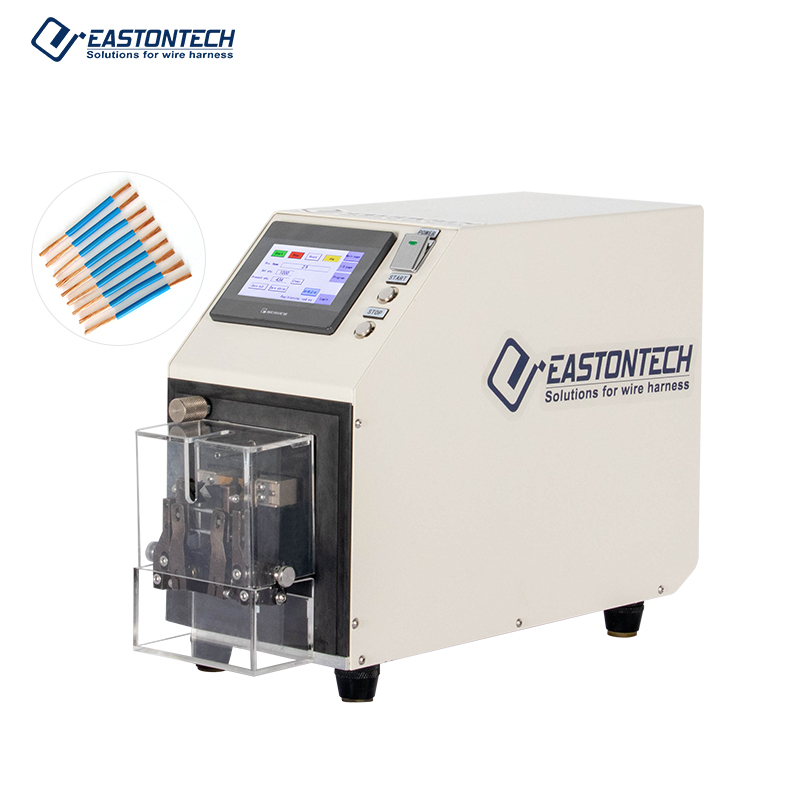

Engineered for ultra-high-end wire harness manufacturing. The EW-1085 delivers an incredible mechanical stripping precision of 0.01mm, ensuring flawless jacket removal without nicking or scratching the delicate inner conductor copper strands.
● High-Efficiency Aero-Electric Hybrid Driving System
Utilizing a robust air pressure system ranging from 0.5 to 0.7 Mpa, this pneumatic wire stripper combines mechanical stability with rapid air-driven clamping. It easily tackles tough, thick-walled, or ultra-short insulation jackets with ease.
● Wide 0.5-8mm² Range & Flexible Stripping Length
A highly versatile workstation capable of processing wire cross-sections from 0.5mm² up to 8mm². It supports full stripping, partial stripping, and multi-step stripping with an adjustable stripping length from 0.1mm to 25mm.
● Heavy-Duty Desktop Footprint & Global Voltage Ready
Weighing a solid 30KG with a space-saving dimension of 350*300*400mm, its heavy-duty steel chassis eliminates vibration during 24/7 continuous operation. Fully adaptable to global factory floors with 220V/110V (50Hz/60Hz) automatic voltage switching.
Application Range
The EW-1085 High-Precision Pneumatic Stripping Machine is the industry-standard benchmarking solution for processing high-spec single-core cables, multi-core power lines, and specialty wires across multiple fields:
● Automotive Wire Harness Assembly: Ideal for precise stripping of car battery cables, sensory lines, and heavy-duty automotive electronics connectors where copper wire damage is strictly prohibited.
● New Energy & Solar Energy Sectors: Efficiently processing thick-insulated photovoltaic (PV) cables, EV charging station interior wires, and inverter power lines (0.5-8mm²).
● Industrial Control Panels & Switchgears: Streamlining high-speed wire preparation for automated PLC racks, control cabinets, and heavy machinery power line distribution.
● Delicate Material Stripping: Perfect for challenging insulation materials including high-temperature Teflon wires, flexible silicone cables, fiberglass braided wires, and rubber-coated cords.
