Feature
● Gentle Wire Handling at High Cycle Speed

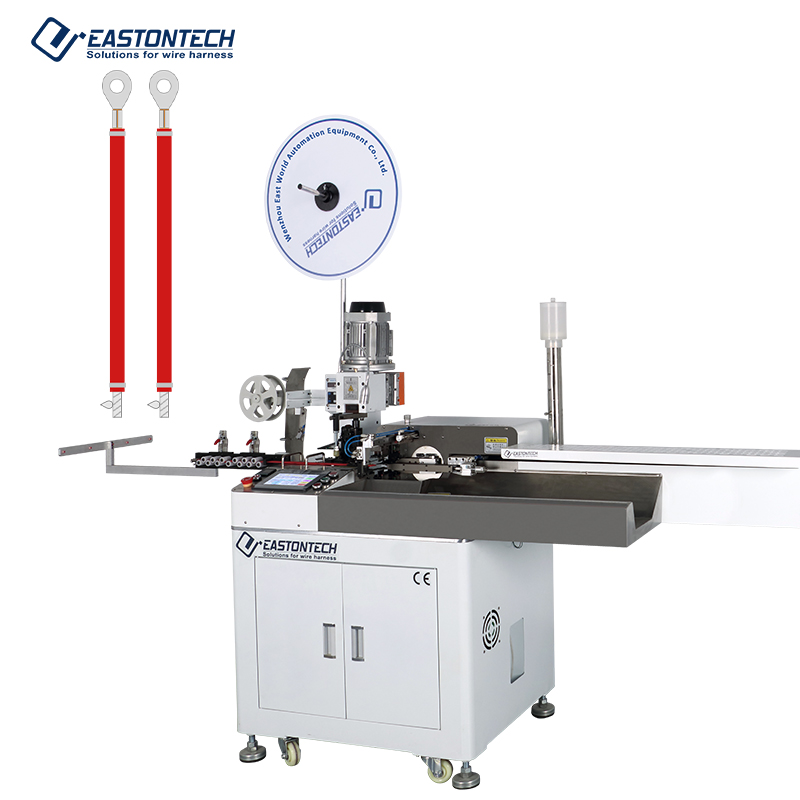

The EW-8050's feed and clamping mechanism is calibrated to apply consistent, controlled force on fine-gauge wire (AWG32–AWG18) throughout the cut, strip, and crimp sequence — avoiding the insulation damage and conductor deformation that aggressive feed mechanisms cause on delicate wire at high cycle rates. This combination of gentle handling and 5,500–6,000 pcs/h throughput is why the EW-8050 has become one of Eastontech's most widely adopted wire processing machines across both domestic and export markets.
● Database Program Storage — Seconds, Not Minutes, to Change Wire Specifications
All process settings are saved to a program database and recalled instantly, allowing operators to switch between different wire specifications in seconds rather than re-entering parameters manually. This is particularly valuable on mixed-production lines processing multiple AWG gauges across a single shift.
● Full Parameter Control via LCD Touchscreen
Cutting length, stripping length, flux soak position and dwell time, and tinning position, time, and depth are all set through the LCD touchscreen interface — giving operators precise control over the tin-dipping process to match different wire insulation types and tinning depth requirements without mechanical adjustment.
● Automatic Solder Wire Feeding — No Manual Replenishment
The solder wire feeds automatically after a programmed number of cutting and stripping cycles, eliminating the need for an operator to manually replenish solder during continuous production. This reduces the operator attention required per shift and prevents the production stoppages that occur when solder runs out unexpectedly on manually-fed tinning equipment.
Application Range
Fine-gauge wire harness sub-assembly requiring tinned leads
Sensor leads, signal wires, and fine-gauge connector pigtails in the AWG32–AWG24 range often require a tinned wire end for reliable soldering into PCB pads or hand-soldered connections, rather than a bare crimped terminal. The EW-8050 completes crimping and tinning in one automated cycle, eliminating the separate manual tin-dipping step that would otherwise follow a standalone crimping machine.
High-volume electronics and appliance wire processing
Consumer electronics, appliance internal wiring, and ICT cable assembly applications using AWG28–AWG18 wire benefit from the EW-8050's 5,500–6,000 pcs/h throughput, matching the high-volume production rates required for cost-competitive electronics accessory manufacturing.
Mixed-specification production lines
Production lines processing multiple wire gauge and terminal combinations across a single shift use the EW-8050's database program storage to switch between specifications in seconds, avoiding the changeover delays that manual parameter entry causes on conventional crimping and tinning equipment.
Export-market wire harness manufacturing
As one of Eastontech's most widely adopted machines both domestically and internationally, the EW-8050 is suited to manufacturers supplying wire harness sub-assemblies to electronics, automotive accessory, and appliance OEMs across multiple export markets where consistent crimp and tin quality at high volume is required.
