Wire Processing and Electrical Installation Equipment

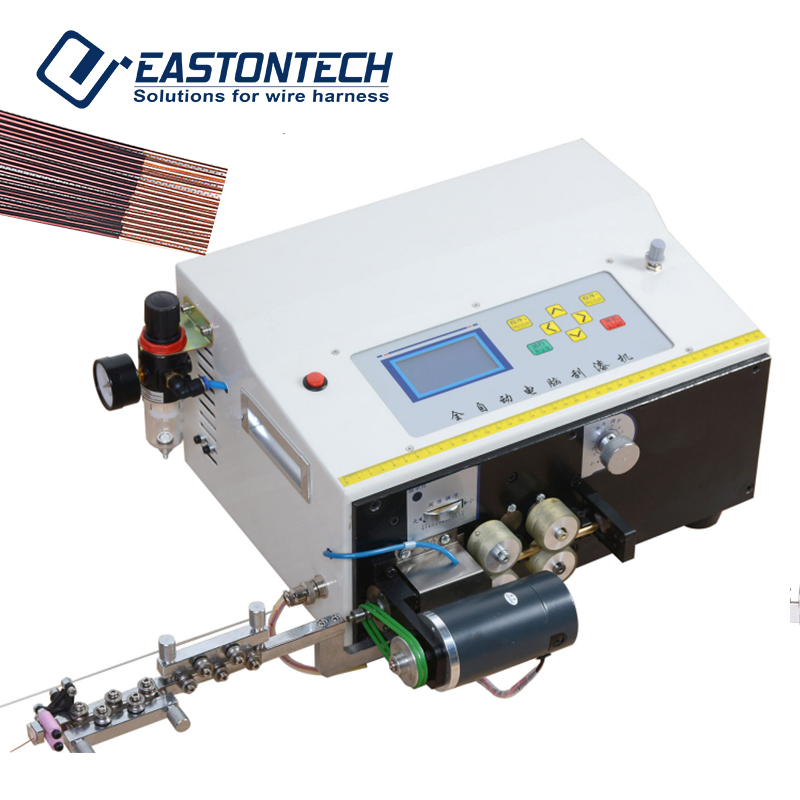

Automatic Enameled Wire Cutting & Stripping Machine (0.5 - 1.2 mm) EW-16S-1

Price of the selected optionon request
Delivery options

Description

Feature

● EW-16S-1 Wire Stripper is one enemaled covered wire stripping machine.

● It is suitable to scrap the round wire and square wire.And It can replace the wheel to suit different wire.

● It scrap the paint wire rotately through the special steel wire wheel.

● It can remove the insulation film of the wire surface rapidly, to paint clean, the surface is bright. Its superior performance, completely replace the traditional manual scraper, grinding wheel abrasive paper mill, potions corrosion, etc methods.Improve the work efficiency greatly, and weldability is strong.

● Scraper painting has fast speed, high efficiency, simple operation, stable performance, low failure rate and novel design.

Specifications

Model
EW-16S-1
Wire outer diameter
0.5 - 1.2 mm
Cutting length
0.01 - 10,000 mm
Cutting tolerance
(0.1-0.2)mm ※L
Stripping length
Double end:0-50mm One end:0-100mm
Blade material
Tungsten steel
Productivity
1800 pcs./h (L = 100 mm)
Power supply
110, 220 V (50 - 60 Hz)
Power
Rated100W Maximum 200W
Weight
21 kg
Dimension
340* 387 * 230 mm
Application for Automatic Enameled Wire Cutting & Stripping Machine (0.5 - 1.2 mm) EW-16S-1
