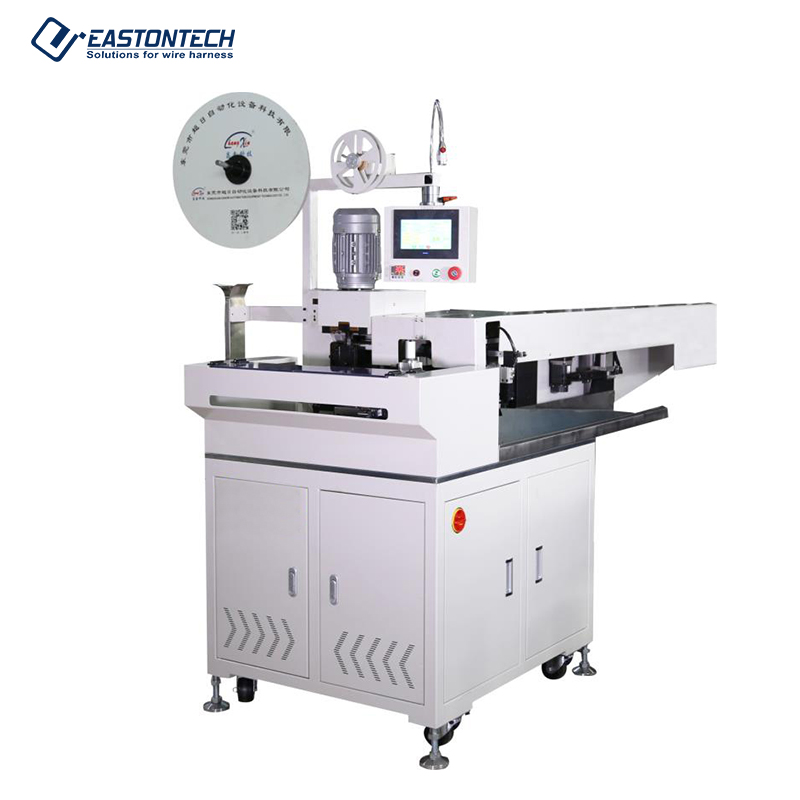

Feature
● All-in-One Dual-End Processing: Completes cutting, slitting, double-end stripping, single-side terminal crimping (2.0 Ton), and opposite-side strand twisting and tin soldering in a single continuous cycle.
● Programmable Automatic Cable Slitter: Features an integrated slitting module that cleanly separates individual ribbon conductor webs. Slitting lengths are fully adjustable via the digital program without mechanical blade swapping.
● High-Capacity 24-Pin Processing: Handles flat ribbon cables up to 24 mm wide and 24 pins (24P) across wire gauges from AWG 18 to AWG 28 (and FFC from AWG 30 to AWG 18).
● Multi-Wire Discrete Processing Mode: Beyond flat ribbon cables, the machine can simultaneously feed and process 5 or more individual discrete electronic wires in parallel, dramatically increasing production output.
● Precision Temperature-Controlled Soldering Pot: Features an active twisting mechanism paired with an automated flux and solder-dip station, delivering uniform 2–8 mm tinning without cold joints, solder bridges, or loose wire strands.
● 700 Pcs/Hour High Throughput: High-speed pneumatic and servo actuators enable cycle speeds up to 700 assemblies per hour (tested on 12P ribbon cable harnesses).
Application Range
● Consumer & Commercial Electronics Assemblies: Production of internal display interconnects, motherboard jumper ribbons, and control panel wiring harnesses.
● Industrial Machinery & Telecom Equipment: Manufacturing multi-pin ribbon cables with crimped connectors on one end and tinned PCB wire leads on the other.
● Automotive Dashboard & Audio Wiring: High-volume termination of flat flexible cables (FFC) and ribbon assemblies for infotainment units and steering wheel controls.
● Home Appliance Harness Manufacturing: Mass processing of multi-conductor wiring for washing machines, refrigerators, and HVAC control boards.
