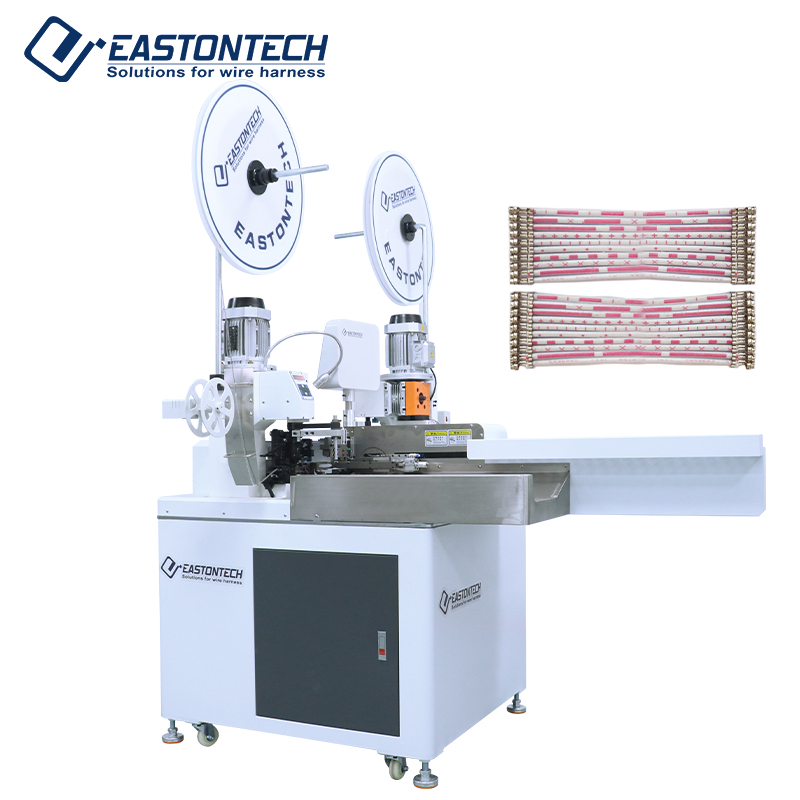

Fully Automatic Double End Flat Cable Crimping Machine EW-8065

Price of the selected optionon request
Delivery options

Description

Feature

● Special functions: single head, double head, interval, positive and negative, mold replacement, replacement end die machine warranty for one year (except blade).

● High production efficiency: 10P line L=100mm can produce 700-900 products per hour, terminal position 15000-22000 PCS, depending on wire type.

Specifications

Model
EW-8065
Applicable wire range
AWG18-AWG28
Cutting length
60-1000mm
Stripping length
1.0-10mm
Single line width
0.6-2.5mm
Max. Wire width
28mm
Max. Wire Pins
20P
Crimping force/Applicator
2.0T/ Horizontal applicator
Productivity
900pcs/hour(10P)
Air pressure
0.4-0.6Mpa
Power supply
220V/110V/50HZ/60HZ
CFM
Optional
Weight
450Kg
Dimension
1880*1000*1550mm
Application for Fully Automatic Double End Flat Cable Crimping Machine EW-8065
