Wire Processing and Electrical Installation Equipment

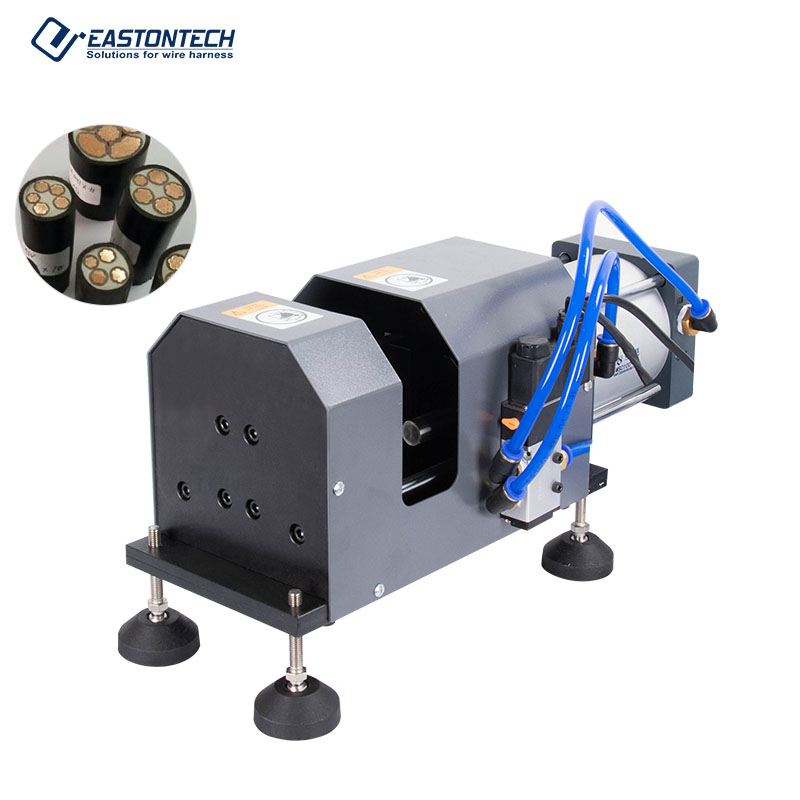

Cable Cutting Machine (1 - 45 mm OD) (1 - 100 mm²) EW-1235

Price of the selected optionon request
Delivery options

Description

Feature

● The EW-1235 is specifically designed for cutting wide range of industrial wires & cables.

● Applicable for 1 - 100 mm² (max. 45 mm OD).

● Easy operation and fast cutting speed.

● Equipped with foot pedal to activate cutting.

Specifications

Model
EW-1235 | EW-1235-1
Maximum Cable OD
25 mm | 45 mm
Conductor cross-section
1 - 50 mm² | 1 - 100 mm²
Compressed air
0.4 - 0.7 MPa
Power supply
110, 220 V (50 - 60 Hz)
Control mode
By foot pedal
Weight
10.5 KGS | 18 KGS
Dimension
380 * 180 * 200 mm | 430 * 220 * 245 mm
Application for Cable Cutting Machine (1 - 45 mm OD) (1 - 100 mm²) EW-1235
