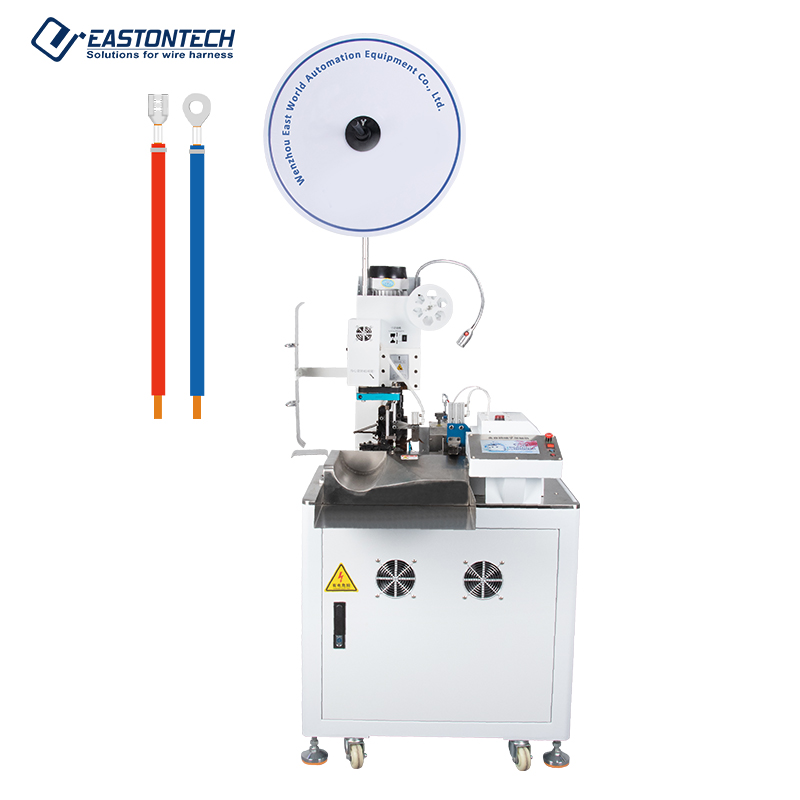

Automatic Wire Crimping Machine EW-8100

Price of the selected optionon request
Delivery options

Description

Feature

● This is a fully automatic single end wire cutting stripping and crimping machine for AWG28~AWG12.

● The highly flexible and electronically ontrolled benchtop unit accepts most universal or mini-style applicators for crimping both side-feed and rear-feed open barrel terminals.

● You can also save you settings in a program file number, so that you can call it out easily next time.

Specifications

Model
EW-8100 | EW-8100-1
Applicable wire range
AWG26-AWG12 | AWG26-AWG12
Stripping length
1-15mm | 1-15mm
Cut precision
±(0.5+0.002*L) mm, L=cut length | ±(0.5+0.002*L) mm, L=cut length
Cutting length
45-9999mm | 45-9999mm(With twist)
Capacity
3500pcs/hour | 3500pcs/hour
Twisting function
N/A | Yes
Twisting length
3-12mm
Crimping force
2.0T | 2.0T
Applicators
30mm or 40mm strokes for optional | 30mm or 40mm strokes for optional
Air pressure
0.4-0.6Mpa | 0.5-0.7Mpa
Detection
Wire run out, low air pressure, terminate error(Crimping force monitor is for optional) | Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Dimension
650*700*1650mm | 650*700*1650mm
Weight
308Kg | 308Kg
Power supply
220V/110V/50HZ/60HZ 0.75KW | 220V/110V/50HZ/60HZ 0.75KW
Application for Automatic Wire Crimping Machine EW-8100
