Wire Processing and Electrical Installation Equipment

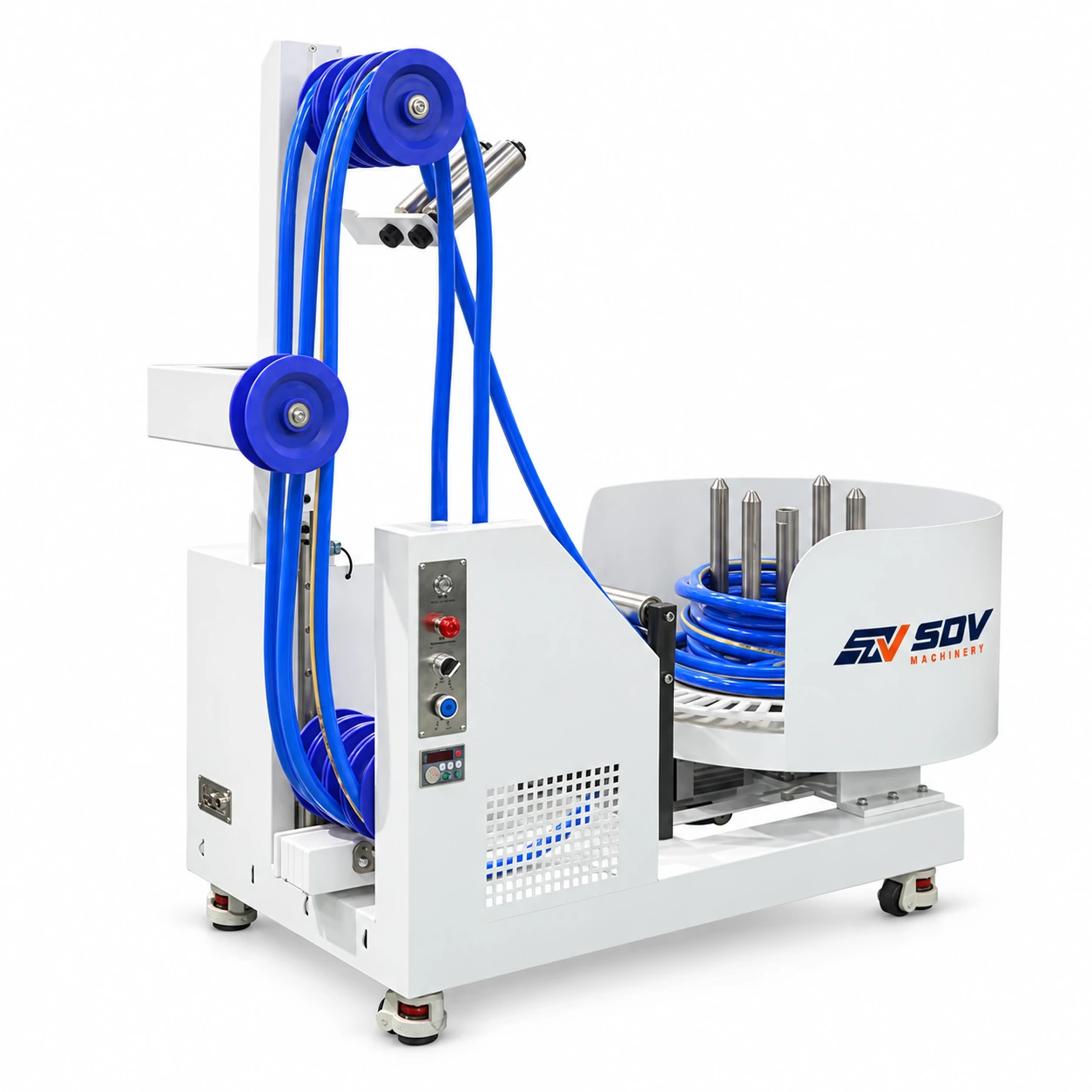

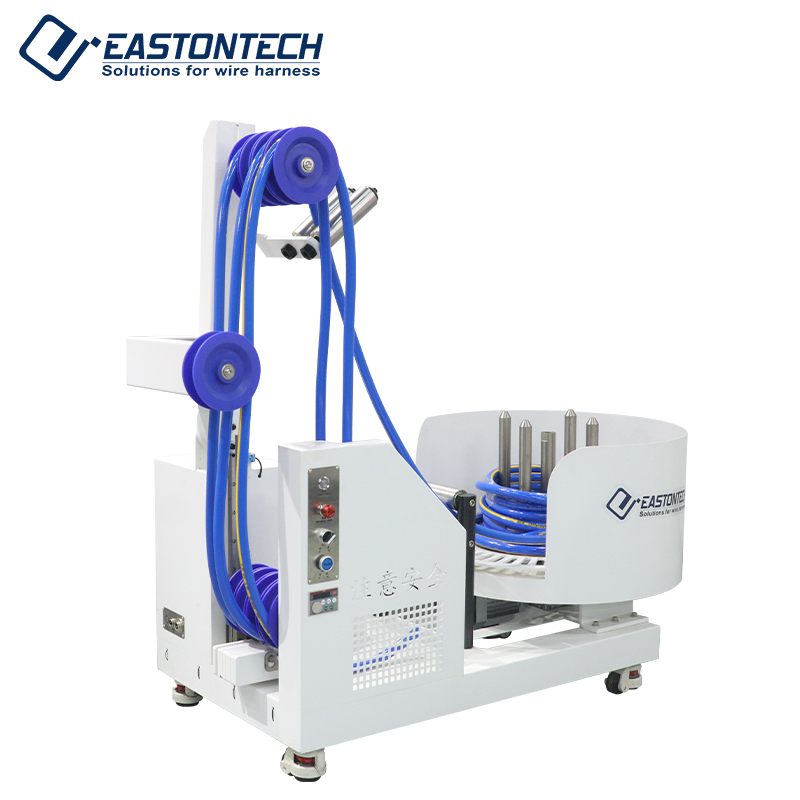

Wire feeding machine(Max 200kgs) EW-14S

Price of the selected optionon request
Delivery options

Description

Feature

● Main frame material: high-quality carbon steel, firm structure and beautiful appearance.

● Induction method: multi-speed inverter, automatic adjustment according to the height of the wire storage wheel.

● Tension adjustment: adjust the tension by regulating the position of the counterweight.

Specifications

Model
EW-14S-1 | EW-14S-2
Drive mode
Three-phase motor + reducer | Three-phase motor + reducer
Rated speed
1450 | 1450
Max. Speed
2200 | 2200
Cable drum OD
100-650mm | 100-850mm
Cable drum ID
38-200mm | 38-200mm
Cable drum height
650mm | 850mm
Max. Loading weight
100KGS | 200KGS
Motor power
0.75KW | 0.75KW
Max. Wire OD
30mm | 30mm
Machine dimension
1544*660*1244mm | 1544*660*1244mm
Application for Wire feeding machine(Max 200kgs) EW-14S
