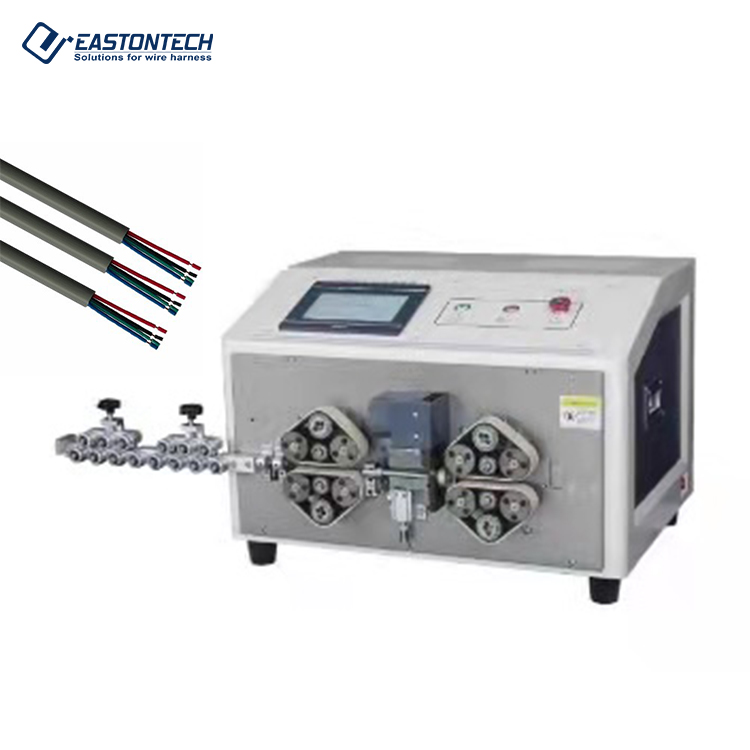

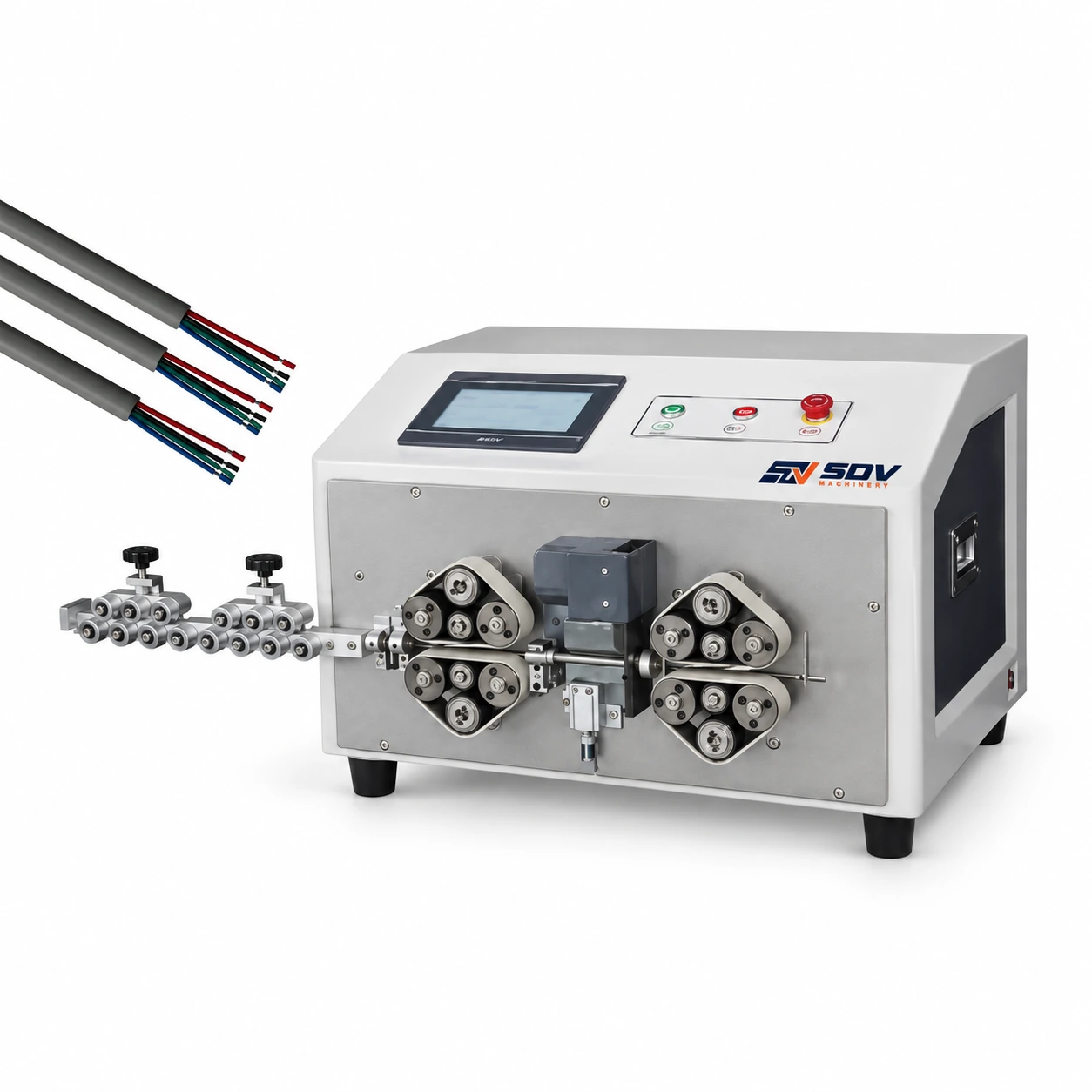

Multi-conductor cable cutting & Stripping Machine (3 - 10 mm outer diameter) EW-3055

Price of the selected optionon request
Delivery options

Description

Feature

● The wire feeding mechanism adopts 4 sets of precision guide components and high precision ball screws. All guide accessories are precision ground, which is precise and stable, and has a long service life.

● The tool post is guided by 4 independent V-groove hard rails, which is small in size, stable in operation, low in noise, and the guide gap is adjustable.

● Modular design, with an external adjustable cylinder, adjust the wire gap according to the size of the wire, so that the wire core is flatter.

Specifications

Model
EW-3055
Function
Wire cutting, double-end stripping,inner core stripping
Wire range
OD 3-10mm
Strip cores
2/3/4/5/6/7/8
Cutting length
0.1mm-99999.9mm
Stripping length
Outer jacket: head:0.1-250mm tail: 0.1-70mm
Inner core
head:0.1-15mm tail: 0.1-15mm
Stripping accuracy
Silent hybrid stepper motor 0.01mm
Intermediate strip
Can be customized
Capacity
1100 pcs/ h (L=500mm)
Blade material
Imported tungsten steel/high-speed steel
Air supply
0.5-0.8Mpa
Power
AC110V/220V 50/60HZ
Dimension
650mm*580mm*460mm
Weight
70kg
Remark function
Automatic entry / exit, timing start, jog adjustment
