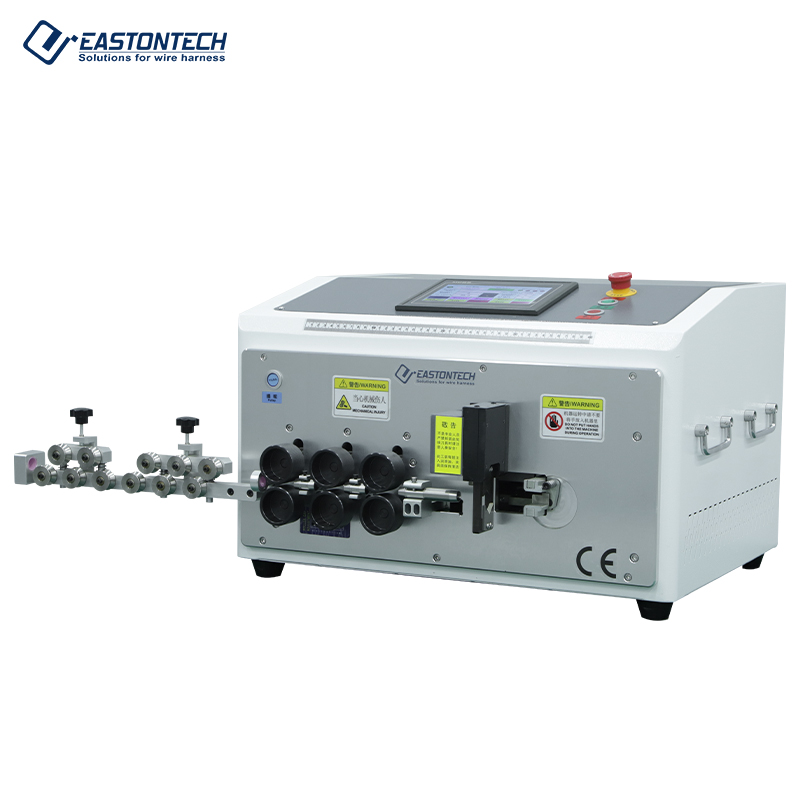

Wire Stripping & Bending Machine(1.5-25 mm²) EW-08C

Price of the selected optionon request
Delivery options

Description

Feature

● The fully automatic wire cutting stripping and bending machine is especially designed for processing BV wires,it can not only strip the both ends but also bend the wire into any angle in a 2D plane.

● Thanks to the optimized bending mechanism farther away from the cutter unit, there is less space constraints on the shape to be bent.

Specifications

Model
EW-08C
Wire range
1.5-25 mm²
Stripping length
Side I:0.1-35mm; Side II:0.1-30mm
Length accuracy
±(0.2%*L)mm
Productivity
800-1500pcs/hour
Noise level
<70dBA
Electrical connection
AC 220/110V 50/60HZ 600W
Program save
200
Bending shape
0-150 degrees
Machine dimension
600*550*450mm
Weight
80kg
Number of bending sections
10
Application for Wire Stripping & Bending Machine(1.5-25 mm²) EW-08C
