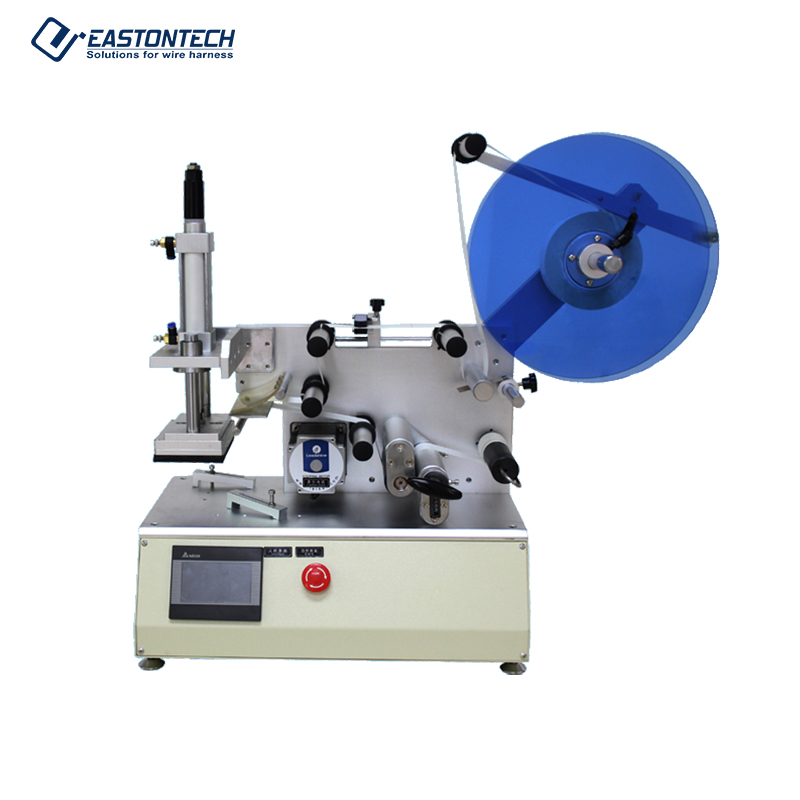

Semi-automatic Plane Labeling Machine EW-7730

Price of the selected optionon request
Delivery options

Description

Feature

● The semi-automatic plane labeling machine (including the display screen) belongs to the semi-automatic labeling machine.

● It applies the suction method to label, and realizes the labeling on the plane of various workpieces, such as cosmetic flat bottles, packaging boxes, plastic caps, etc.

● Change the labeling mechanism, which can be applied to uneven surface labeling, such as concave plane, arc surface labeling, etc.

● Changing the jig can be applied to the labeling of various irregular workpieces.

● Choose a color-coded ribbon printer or inkjet printer, print the production date and batch number on the label, and realize the integration of coding and labeling.

● It can be used with various packaging lines.

Specifications

Model
EW-7730
Labeling speed
10-25p/min
Labeling accuracy
±1mm (excluding product and label error)
Product Range
Length 20-200mm,
Additional information
Width 20-150mm,
Additional information 2
Thickness 0.2-120mm
Label Range
Width 15-150mm, length 10-100mm
Power supply
110V/220V
Dimension
850*430*770mm
Weight
85KGS
Application for Semi-automatic Plane Labeling Machine EW-7730
