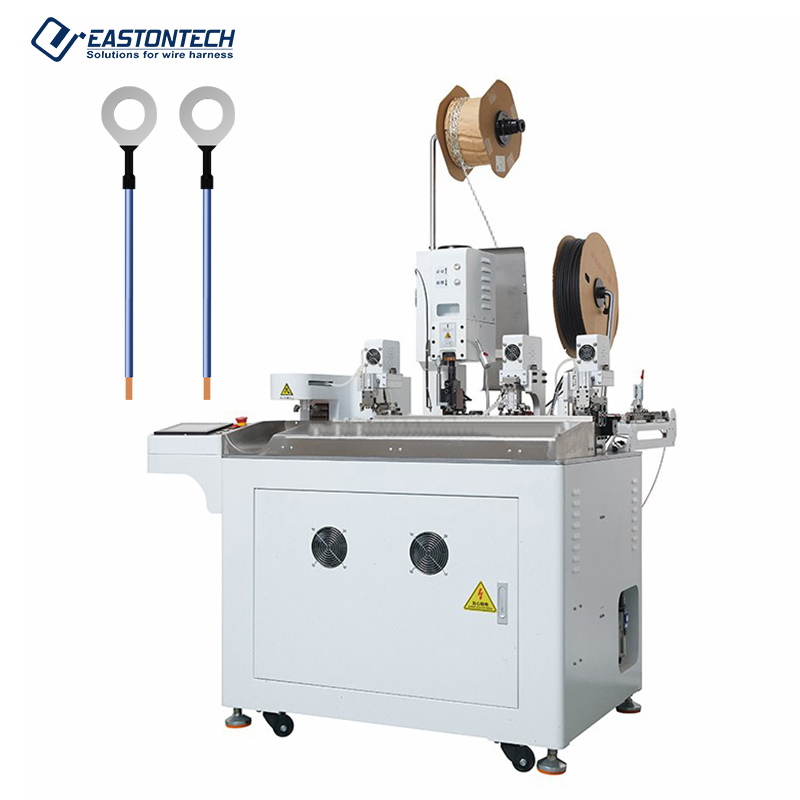

Automatic Single End Terminal Crimping Single End Inserting Heat Shrink Tube Machine EW-8060

Price of the selected optionon request
Delivery options

Description

Feature

● This is an fully automatic wire crimping and shrink tube instaling & heating machine.

● wire one side can crimp terminal,one side installing shrink tube and heating.

● We can also customize the machine according to customer's requirements, such as one side crimping and installing shrink tube,another side twisting and soldering.

Specifications

Model
EW-8060
Applicable wire range
AWG20-AWG10
Stripping length
Front: 0.5-8mm; Rear: 0.1-10mm
Cut precision
±(0.5+0.002*L) mm, L=cut length
Cutting length
75-9999mm
Capacity
1800-2000pcs/hour
Crimping force
2.0T
Applicators
30mm or 40mm strokes for optional
Air pressure
0.5Mpa
Detection
Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power
220V/110V/50/60HZ
Cutting depth
The maximum adjustment is 5.50mm and the resolution is 0.01mm.
Shrinkage tube size
3.0-6.0mm Dia(15-28mm length)
Dimension
1450*800*1400mm
Weight
350Kg
Power cord plug
European, USA, Chinese plug
