Wire Processing and Electrical Installation Equipment

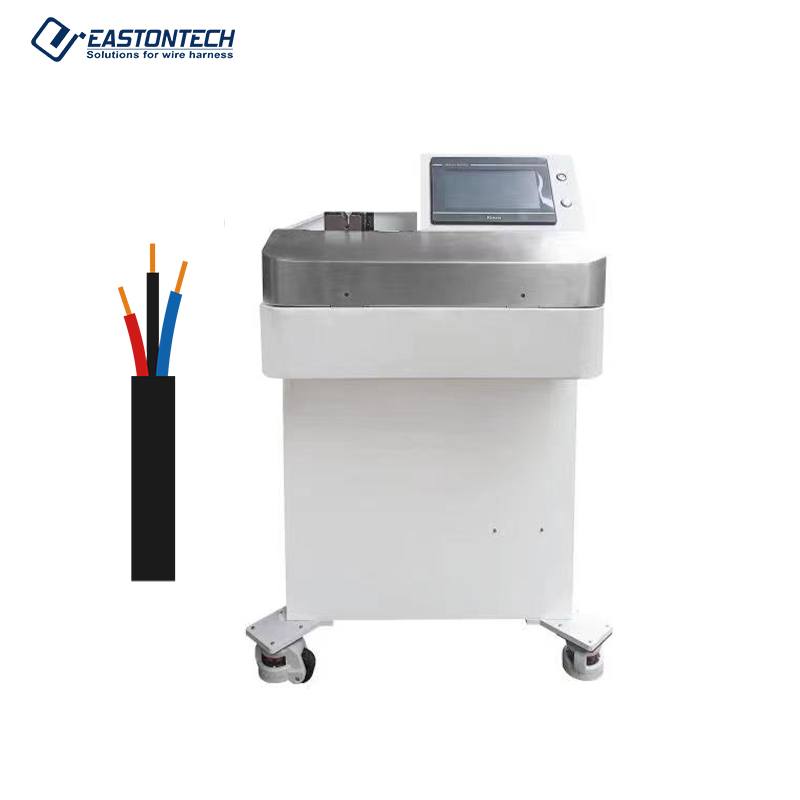

Multi-core Long and Short Wire Stripping Machine EW-1055

Price of the selected optionon request
Delivery options

Description

Feature

Multi-core long and short wire stripping machine can cut and strip core wires of different lengths according to the different needs of users. The cutting and stripping is completed by the servo system and high-precision linear module, which has the characteristics of high quality, high efficiency, safety and reliability, simple operation and simple maintenance.The equipment is mainly composed of machine assembly, wire clamping mechanism, cutting and stripping system and electric control system.

Specifications

Model
EW-1055
Wire range
AWG24-16
Stripping length
1-15mm
Length of wire drop
0-400mm
Speed
1400pcs/hour(L=40mm)
Voltage
220V/110V/50Hz/60Hz
Dimension
800*500*890mm
Application for Multi-core Long and Short Wire Stripping Machine EW-1055
