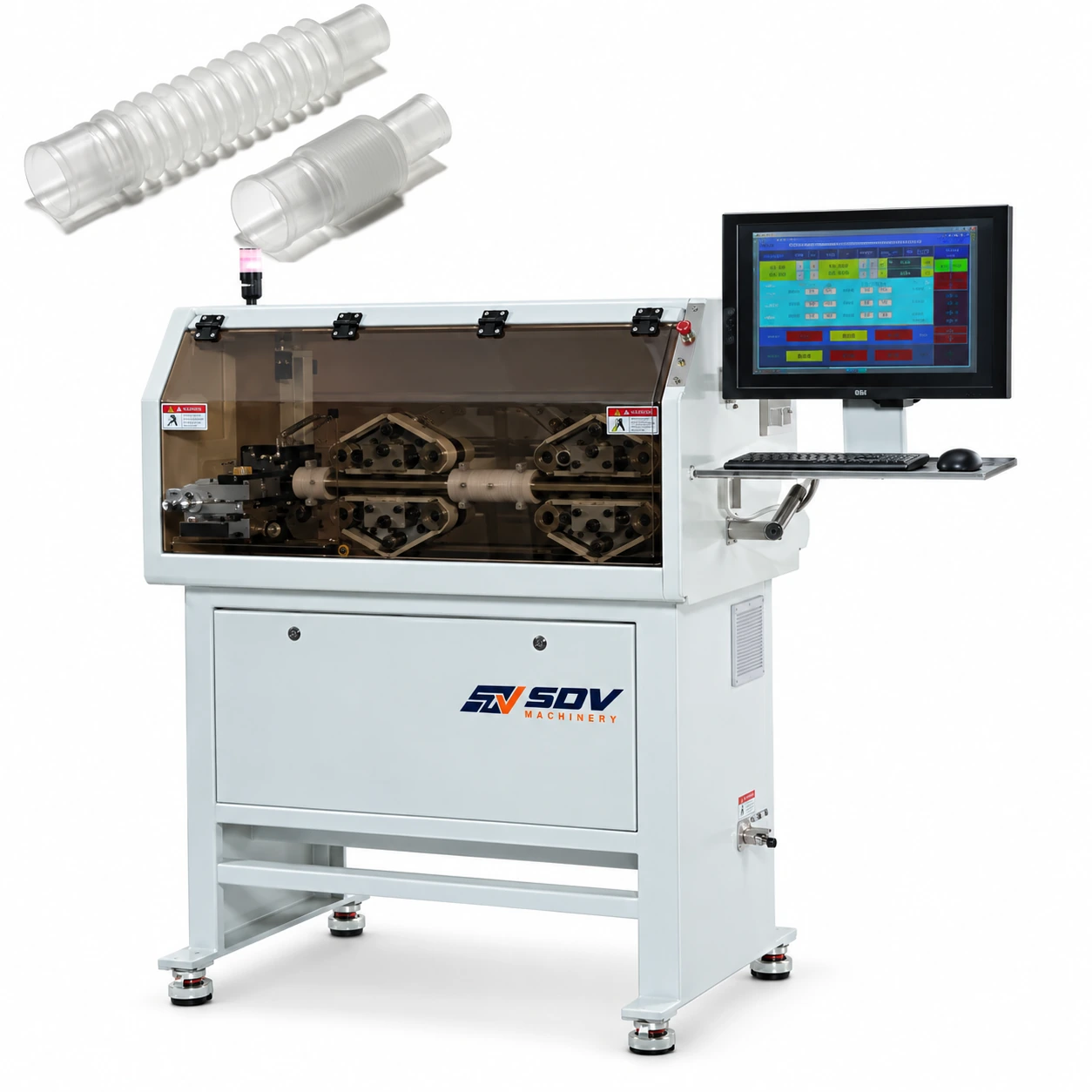

CCD Camera Positioning Tube Cutting & Compressing Machine (medical tube) EW-12F-1

Price of the selected optionon request
Delivery options

Description

Feature

The EW-12F-1 is a CCD camera positioning cut machine dedicated to cut & compress medical tube.

● Cut up to 45 mm diameter.

● CCD camera to study the feature of target cut position for precise cutting.

● Productivity up to 2000 pcs./h.

Specifications

Model
EW-12F-1
Material outer diameter
4 - 45 mm (Depends on material)
Cutting length
1 - 99,999.9 mm
Cutting increment
0.1 mm
Cutting length tolerance
0.001 * L ± 0.2 mm
Cutting mode
Cylinder clamp cutting
Control mode
PLC
Type of feeding motor
Servo motor
Rotary speed of cutting blades
Adjustable
Productivity
10-60 meters./min (depending on
Additional information
material and cutting length)
Power supply
110, 220 V (50 - 60 Hz)
Power
1.5 kW
Weight
550 KGS
Dimension
670 * 1800 * 1500 mm
Application for CCD Camera Positioning Tube Cutting & Compressing Machine (medical tube) EW-12F-1
