Wrap Tape Tube Cut Machine EW-12G

Price of the selected optionon request
Delivery options

Description

Feature

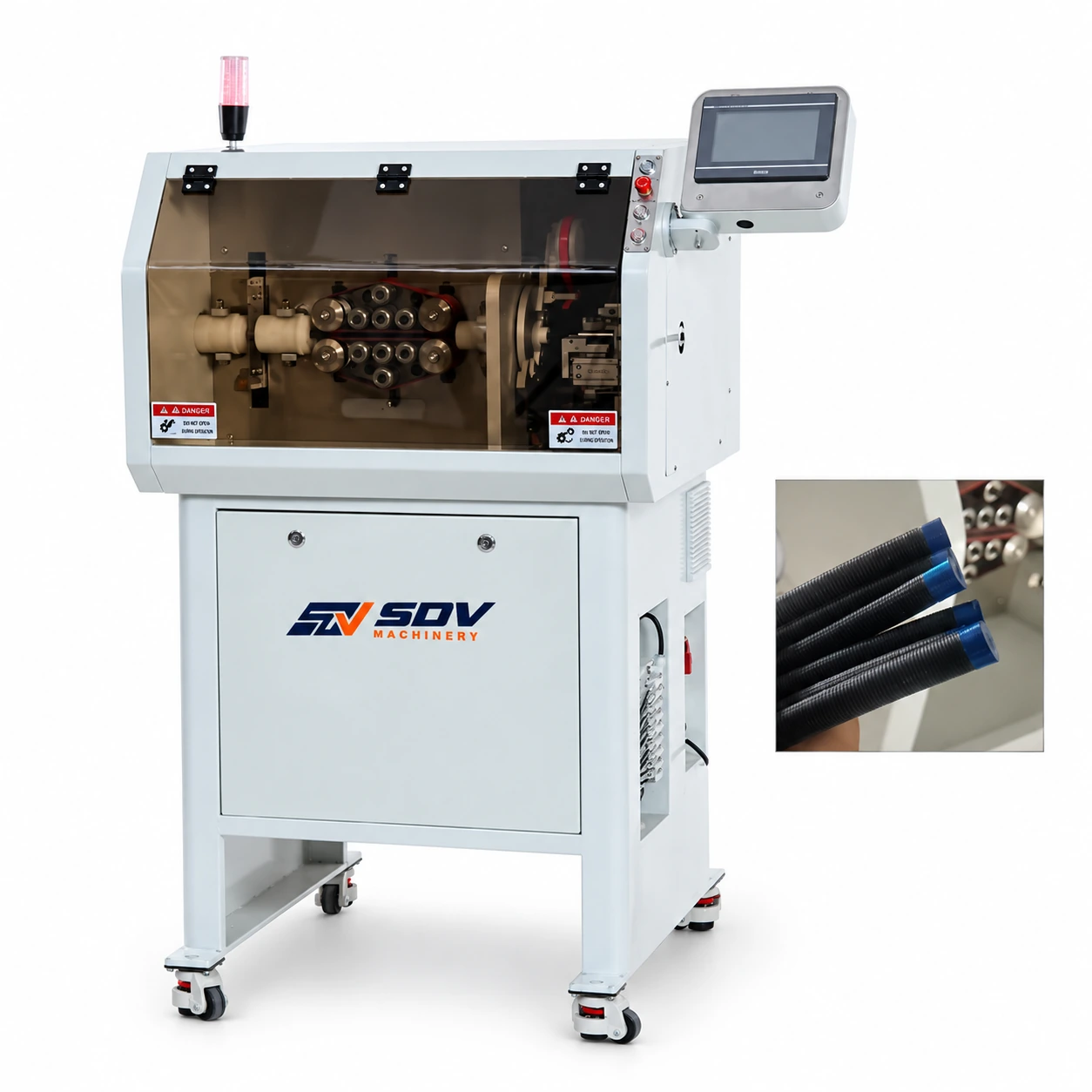

The EW-12G is a automatic cutting machine that can wrap non-elastic adhesive tape before cutting for Nylon braided tube.

● Cut up to 15 mm diameter.

● Productivity up to 700 pcs./h.

● Belts feeding with servo motor driving.

● Smooth cutting surface with no burrs.

Specifications

Model
EW-12G
Tape width
10-20mm
Tape type
Non-elastic adhesive tape
Wrapping diameter
8-15mm OD
Cutter stroke
85mm
Cutter material
White steel
Cutting speed
650-700pcs/hour(Length=800mm)
Cutting type
Nylon braided tube
Length accuracy
±1(L<1000)mm
Cutting position accuracy
±0.5mm
Feeding Speed
1m/s
Power supply
110, 220 V (50 - 60 Hz)
Power
1.8KW
Feeding Way
Belt Feeding
Type of Feeding Motor
Servo motor
Air pressure
0.6Mpa
Dimension
1700x600x1500 mm
Weight
380KGS
Application for Wrap Tape Tube Cut Machine EW-12G
