Feature

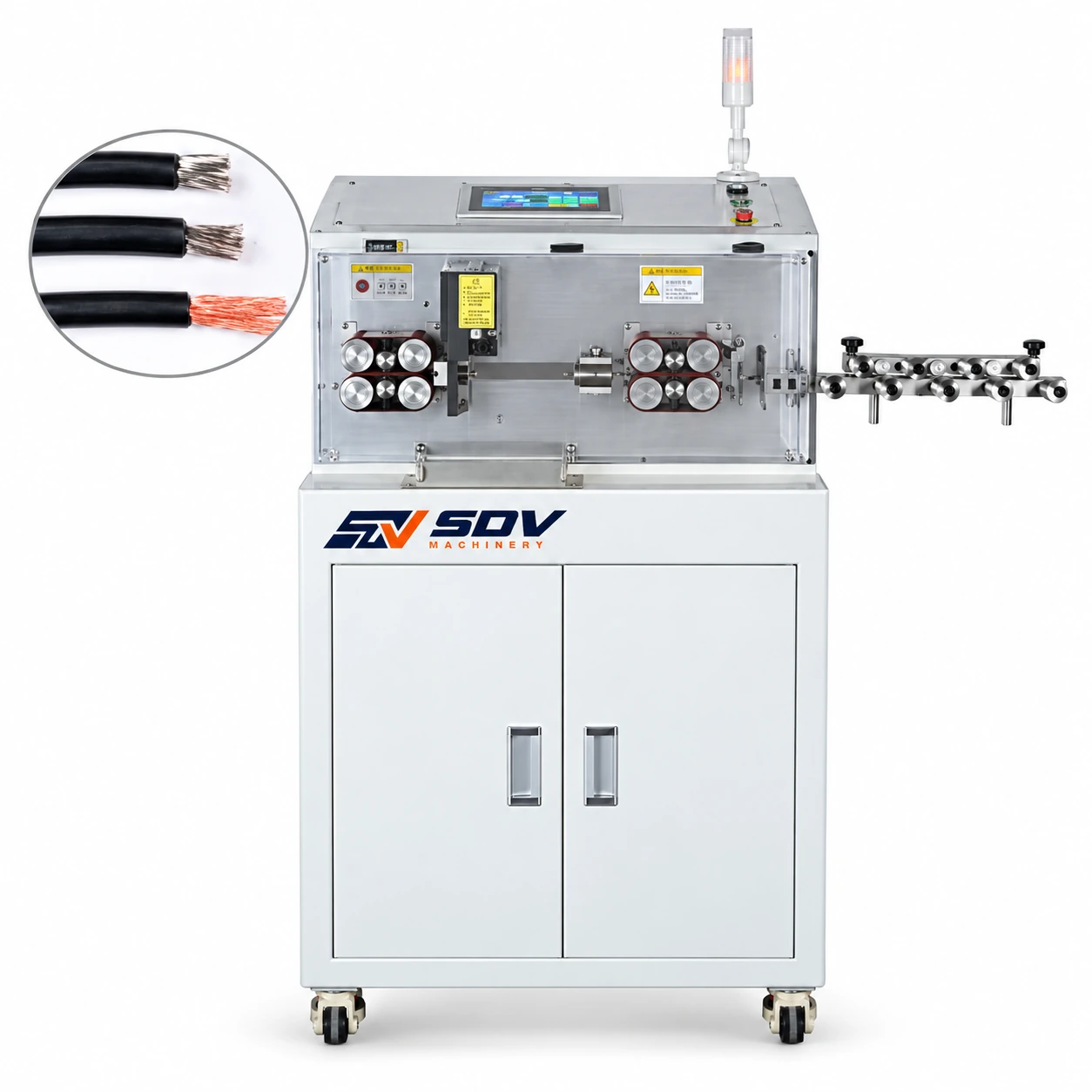

● Heavy-Gauge Cross-Section Processing: Specifically engineered to cut and strip large-diameter industrial power lines and battery cables ranging from 1.5 mm² to a massive 95 mm² (up to 22 mm Maximum Outer Diameter).
● Advanced 3-Layer Shielding Capability: Designed with programmable precision to cleanly perform multi-stage 3-layer stripping on high-voltage shielded cables (outer jacket, metallic braiding/foil shield, and inner insulation) without damaging core strands.
● 12-Roller High-Traction Belt Drive: Utilizes an aggressive 12-roller with belts driving system instead of standard steel wheels. This maximizes linear feeding stability on heavy cable reels and eliminates surface indentation on soft insulation jackets.
● Extra-Long Stripping Windows: Offers unmatched termination flexibility with an ultra-extended programmable stripping length profile: supporting up to 0 - 320 mm on Side I and 0 - 160 mm on Side II.
● High-Speed Steel (HSS) Longevity: Armed with premium-grade High-Speed Steel blades capable of clean cuts across tough industrial insulations, yielding a high-volume productivity of 800 - 1200 pcs./h.
● Smart Automation Architecture: Managed via an intuitive 7-inch touch screen equipped with an internal memory capacity for up to 100 distinct custom programs for zero-downtime batch changeovers.
● Flexible Factory Integrations: Built on a stable 125 kg floor-benchtop chassis (700×640×480 mm) pulling just 800 W. Features automated dual-voltage compatibility for 110V/220V (50 - 60 Hz) with an optional slitting function module.
Application Range
● EV Powertrains & High-Voltage Connectors: The definitive solution for prepping thick, shielded high-voltage orange charging lines and inverter loops (35mm², 50mm², 70mm², 95mm²) used in electric vehicles (Highly targeted at EV manufacturing sectors in the USA, Germany, Japan, and South Korea).
● Renewable Energy & Solar Grids: Rapid preparation of heavy-duty wind turbine generator cables and photovoltaic (PV) main inverter connections demanding weather-proof, multi-layer stripping compliance.
● Industrial Power Distribution Blocks: Streamlines mass cutting and stripping of heavy-gauge power grid lines, transformer connections, and industrial control room main power drops.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
