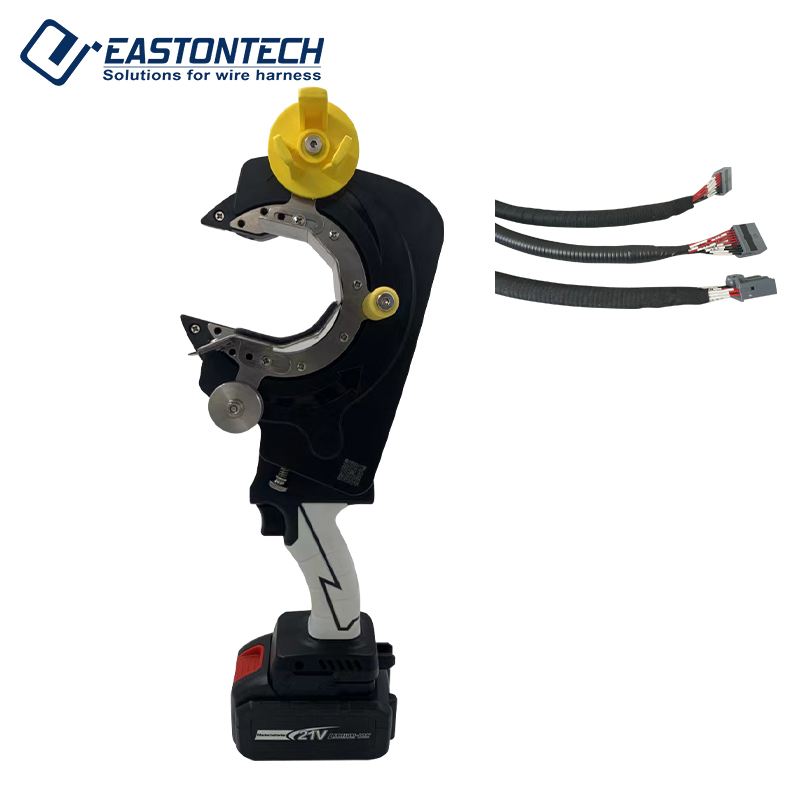

Chargeable Tape Wrap Machine (7-45mm OD) EW-1665

Price of the selected optionon request
Delivery options

Description

Feature

● Lithium battery hand held wire taping machine with a built-in 6000 mA lithium battery.

● It can be used continuously for about 5 hours when fully charged.

● It is very small and flexible.

● The weight of the machine is only 1.75kg, and the open design can start wrapping from any position of the wire harness.

● It is easy to skip the branches,suitable for tape wrapping of wire harnesses with branches, widely used for wire harness assembly board to assemble wire harness.

● Support full wrap, half-overlay wrap.

● Ergonomic and dynamic design, independent use of the configuration of the belt slant belt, effectively reduce the operator in the long working process of fatigue.

● The wiring harness wrapping process is smooth, and the appearance is beautiful and smooth.

Specifications

Model
EW-1665 | EW-1665-1
Bottom plate
Yes | N/A
Wrap OD
7-45 mm
Tape material
PVC, adhesive tape and felt
Tape width
9 - 25 mm
Wrap type
Full wrap, half-overlay wrap
Wrap speed
2 - 4 circles/s (adjustable)
Charging voltage
110 - 240 V (50/60 Hz)
Battery life
5 hours
Weight
1.75 kg
Dimension
100 * 75 * 400 mm
