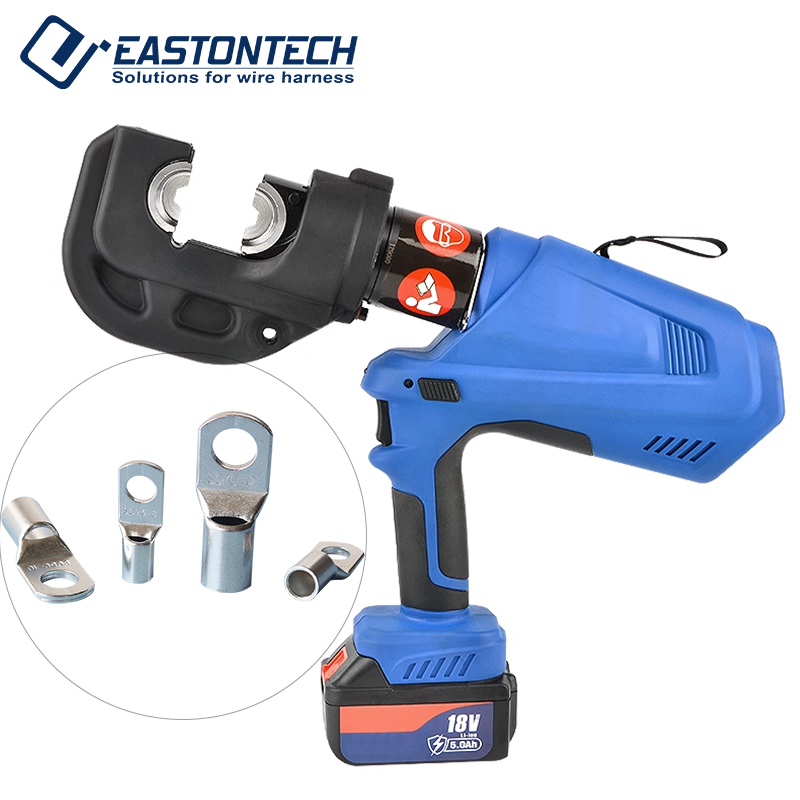

Electric Manual Terminal Crimper EW-5215

Price of the selected optionon request
Delivery options

Description

Feature

● Over 14 Tons Output: For crimping 16~400 mm² Cu/Al Conducting.

● High capacity battery with imported cell,Automatic low battery alarm: Guarantee over hundreds crimping under heavy load. Timely estimation of battery replacement.

● Screen Display: led screen display the remaining battery power, Crimping times, temperate.

● High efficiency and labor-saving: with built-in speeding up hydraulic apparatus.

● Easy transport: crimper and its accessories can be put in a stong plastic carry case.

Specifications

Model
EW-5215-60KN | EW-5215-120KN
Max. Output Force
60KN | 120KN
Crimp Range
Copper 300 mm²/ Aluminum 240 mm² | Copper 400 mm²/ Aluminum 300 mm²
Stroke
17mm | 17mm
Battery
DC 18V 5.0Ah lithium battery | DC 18V 5.0Ah lithium battery
Charging Time
About 1 Hour | About 1 Hour
Charging Voltage
110-240V AC | 110-240V AC
Weight
4.6KGS (including battery) | 6.4KGS (including battery)
Application for Electric Manual Terminal Crimper EW-5215
