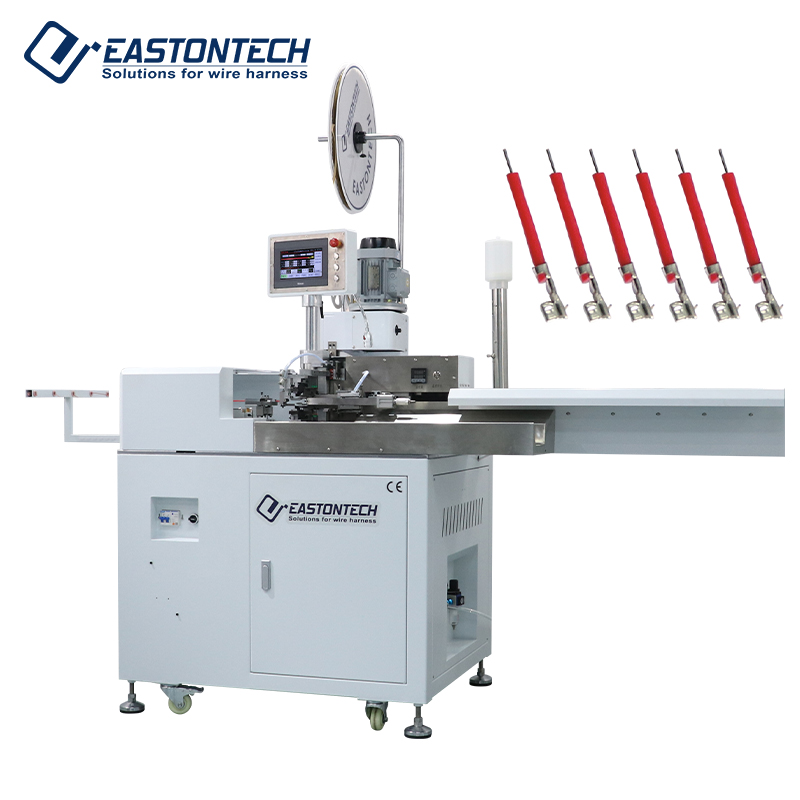

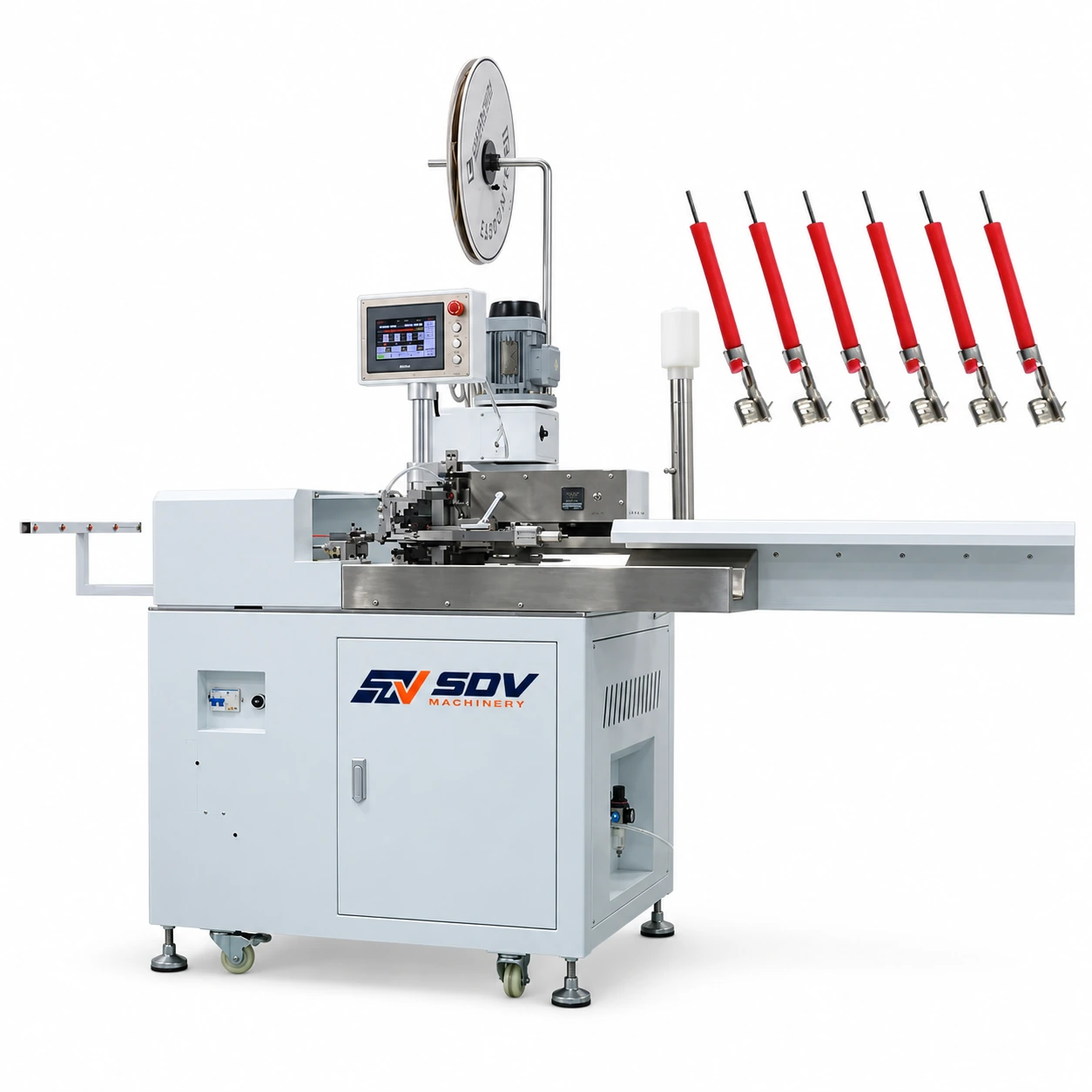

Automatic 5 Wires Crimping and Tinning Machine EW-8180

Price of the selected optionon request
Delivery options

Description

Feature

● Automatic wire cutting, single end peeling, double end peeling, single end semi-peeling, double ends half stripping, single end twisting, single end crimping, single end tinning.

● This five-wire peeling tinning crimping machine is able to process of wire cutting, single end peeling, double end peeling, single end semi-peeling, double ends half stripping, single end twisting, single end crimping, and single end tinning.

Specifications

Model
EW-8180
Applicable wire range
AWG32-AWG16
Stripping length
0.1-10mm
Tinning length
1-10mm
Twisting length
2-10mm
Cut precision
±0.2 mm+L*0.002mm (L=100mm)
Cutting length
41-99999mm
Capacity
45 00-5000pcs/hour (L=100mm)
Crimping force
2.0T
Stroke
30mm
Air pressure
0.6-0.8Mpa
Detection
Low air pressure,Wire run-out, Wire overload, Terminal run-out,Terminal overload, Crimp error
Power
220V/110V/50/60HZ
Dimension
2000*820*1520mm
Weight
380KGS
Application for Automatic 5 Wires Crimping and Tinning Machine EW-8180
