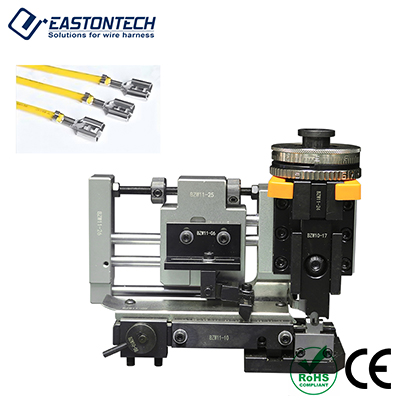

Feature
● Precision Side-Feeding Stability: Engineered specifically for high-efficiency side terminal feeding with a maximum mechanical feed progression length of 25 mm. The automatic lateral advancing mechanism guarantees perfect alignment, preventing terminal ribbon folding or jamming during high-speed automated cycles.
● Standard 40mm European Stroke: Features a universally compatible 40 mm slide stroke design that aligns perfectly with standard European style wire processing equipment and automatic crimping presses. This standard structural geometry ensures quick plug-and-play installation, minimizing adaptation downtime on your workshop floor.
● Dial-Scale Micro-Adjustment Knob: Replaces primitive physical metal shims with an integrated, micro-calibrated rotating scale button mechanism for swift die knife depth calibration. Operators can spin the dial knob to adjust core and insulation crimp heights incrementally in seconds, securing optimal compaction without opening the tool.
● Robust Heavy-Duty Construction: Fabricated from premium tool steel alloy with a high-mass net weight of 4.5 kg to easily withstand massive repetitive mechanical force without thermal or kinetic distortion. The hardened structural frame dampens vibrations, preserving micro-level tolerances across millions of crimping impacts.
● OEM Processing Customization Available: Offers full manufacturing customization options tailored specifically to your unique terminal reel designs and processing specifications. Our expert engineering team designs and manufactures bespoke wire crimping blades, anvils, and feeding guides based on your physical wire samples.
Application Range
● Automotive Wire Harness Production: Crimping side-fed reel terminals for high-density automotive sensor bundles, relays, and engine wiring looms.
● Consumer Appliance Assembly: Fast, high-volume production of internal wiring connectors for white goods, televisions, and air conditioners.
● Industrial Control Panels: Setting heavy-duty power and signal connectors into DIN rail terminal modules and distribution boxes.
● Contract Electronics Manufacturing (EMS): Supporting rapid, high-mix batch changes where quick-adjust dial applicators dramatically reduce setup times.
