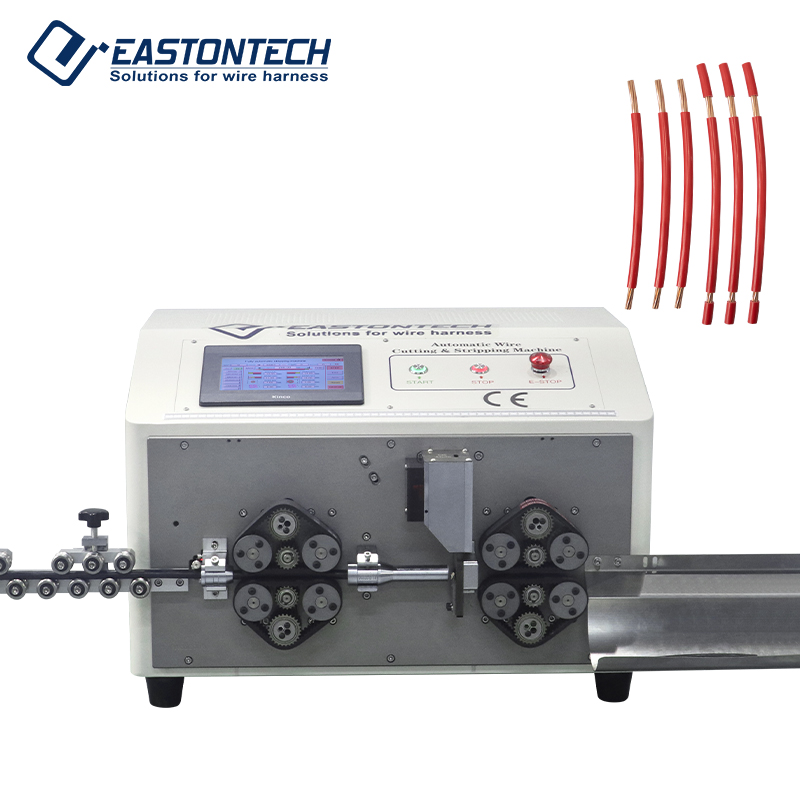

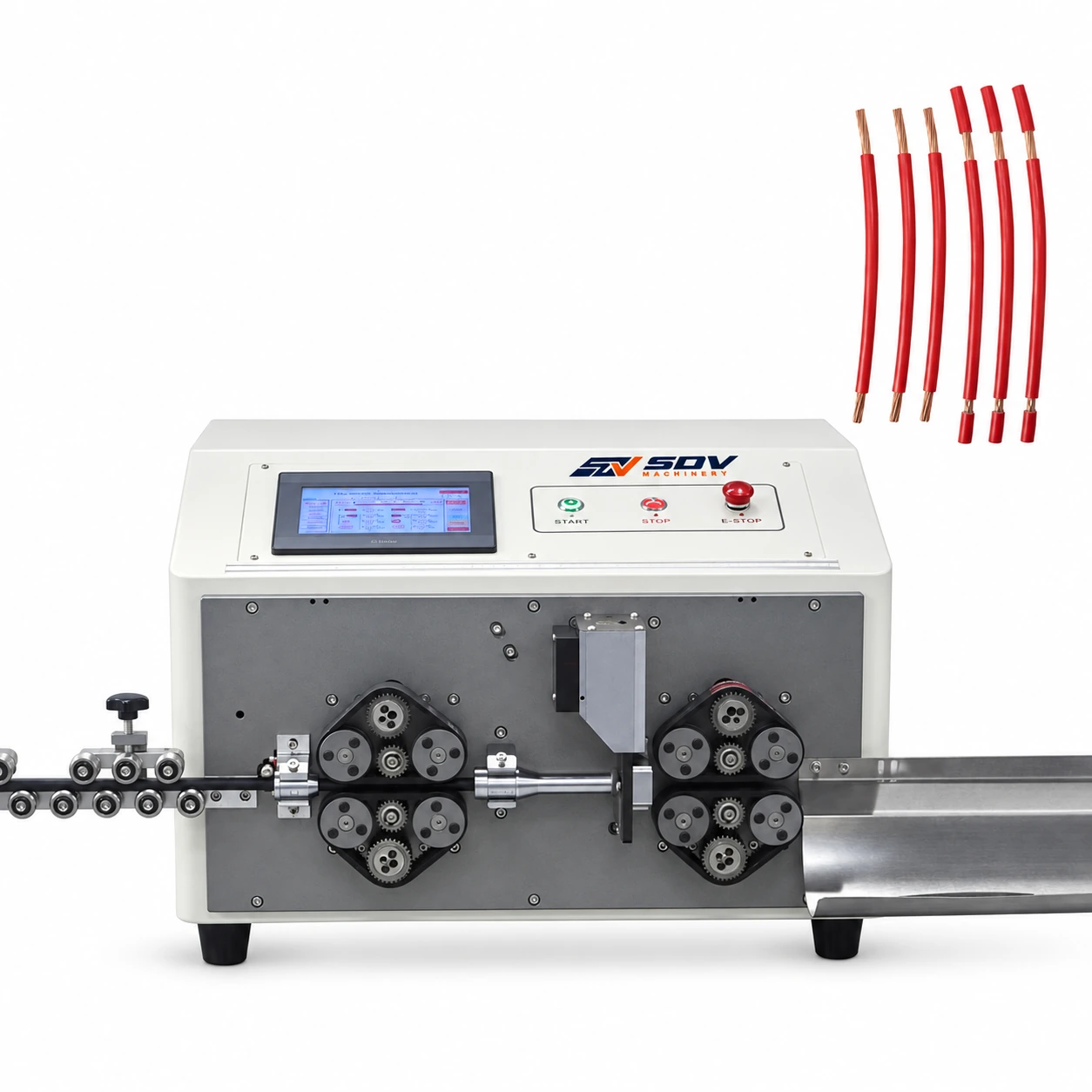

Belt driven Wire cutting stripping machine (2-35 mm²) EW-3040

Price of the selected optionon request
Delivery options

Description

Feature

● The wire feeding mechanism adopts 4 sets of precision guide components and high precision ball screws. All guide accessories are precision ground, which is precise and stable, and has a long service life.

● The tool post is guided by 4 independent V-groove hard rails, which is small in size, stable in operation, low in noise, and the guide gap is adjustable.

● Modular design, with an external adjustable cylinder, adjust the wire gap according to the size of the wire, so that the wire core is flatter.

Specifications

Model
EW-3040
Cutting diameter
3-16mm
Wire range
2-35mm²
Cutting length
0.1mm-99999.9mm
Stripping length
Stripping head:0.1-100mm Stripping tail: 0.1-70mm
Tube diameter
4/6/8/10/12/14/16mm
Wire feeding speed
40-50 meter/minute
Capacity
900-1300 / h
Blade material
Imported tungsten steel / high speed steel
Voltage
AC110V/220V 50/60HZ
Dimension
650mm * 580mm * 460mm
Weight
70kg
Remark function
Automatic entry / exit, timing start, jog adjustment
Power
1.8KW
Air supply
0.5-0.7Mpa
Application for Belt driven Wire cutting stripping machine (2-35 mm²) EW-3040
