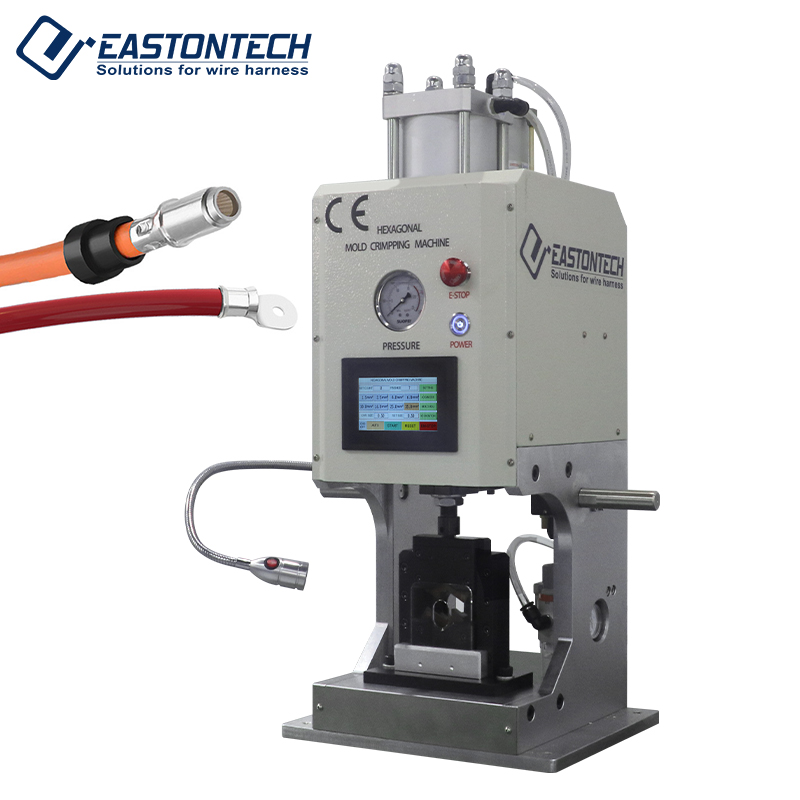

Feature
● Processing range covers 1.5~35mm² copper & aluminum wires and tubular cable lugs with standard hexagonal crimp shape
● 6T rated crimp force, ultra-high crimp precision up to 0.03mm for consistent terminal compression
● 200W rated input power, dual voltage AC110V/220V 50/60Hz for global factory power compatibility
● Equipped with servo motor & dedicated driver for fast response and stable high-precision operation
● Working air pressure requirement:0.5~0.8Mpa, compatible with conventional factory pneumatic system
● Built-in data storage function to save up to 12 sets of production parameters for quick mold changeover
● Hardened alloy crimp dies for neat terminal forming and extended service lifespan
● Heavy thick steel plate frame design effectively reduces vibration during continuous crimping
● Compact dimension L430×W280×H800mm, net weight 80KG for flexible workshop layout
● CE & RoHS certified, meets international industrial production safety norms
Application Range
● New energy vehicle battery cable and high-current terminal crimp processing
● Power distribution cabinet, transformer internal wiring lug assembly
● Solar photovoltaic energy storage cable and connector manufacturing
● Automotive high-power wiring harness and engine terminal production
● Construction engineering electrical wiring and field terminal crimp work
● Industrial control equipment and heavy-duty electrical component assembly
