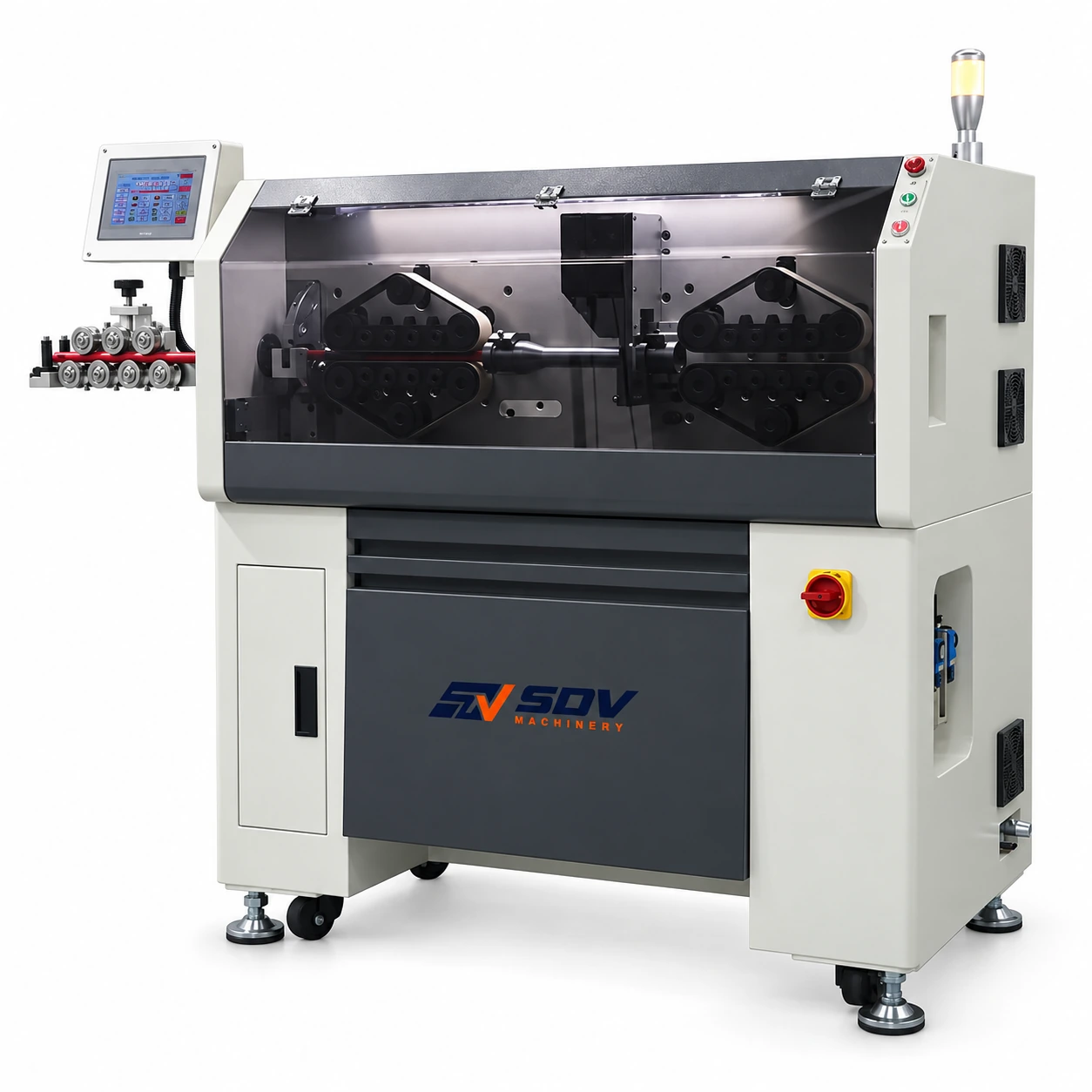

Wire cutting stripping machine(25-180 mm²) EW-3100

Price of the selected optionon request
Delivery options

Description

Feature

● EW-3100 is suitable for 0.1-6mm² (AWG30-12) wires.

● 4-Wheel Driving to ensure the smooth cutting and stripping process.

● The machine will stop when it detects that the protective cover is opened.

Specifications

Model
EW-3100
Cable diameter
12-28mm
Wire range
25-180 mm²
Tube size
12-14-16-18-20-22-24-26-28
Cutting length
0.1mm-99999.9mm
Stripping length
Stripping head:0.1-250mm Stripping tail: 0.1-180mm
Air supply
0.5-0.6Mpa
Intermediate strip
16 (can be customized)
Capacity
900-1300 pcs/ h
Feeding speed
40-50 meter/ minutes(24 roller, feed by belt)
Blade material
Imported tungsten steel / high speed steel
Power
AC110V/220V 4.5KW
Dimension
710mm*270mm*1250mm
Weight
350kg
Remark function
Automatic entry / exit, timing start, jog adjustment
Transmission structure
Servo motor, hybrid stepper motor, precision two-way screw, linear guide post
Program save
99
Application for Wire cutting stripping machine(25-180 mm²) EW-3100
